ABB TB82 Advantage Series User Manual

ABB TB82PH ATEX Product Instruction Manual
TB82PH-ATEX-DE-A 55

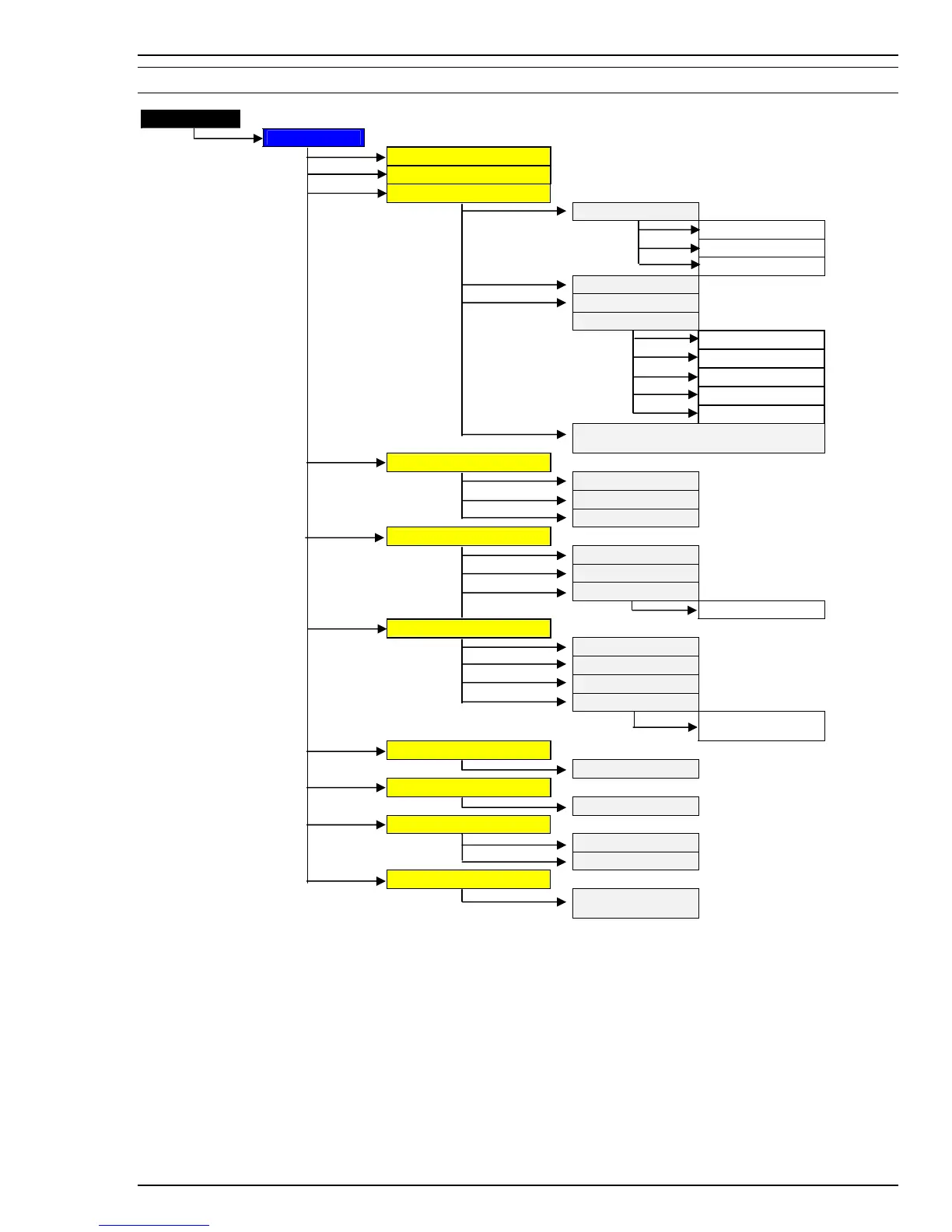

KONFIGURATIONSMODUS – Ablaufdiagramm für den erweiterten Modus
MEASURE
CONFIGURE
Modify/View
Basic
Analyzer
pH
pH glass
Antimony
Custom
ORP
pIon
Ion Concentration
Units (ppm, ppb)
Valence
Magnitude (log)
End Magnitude
End Millivolt
Reference Impedance k-ohms
(appears for all sensor choices)
Temp. Sensor
None
3k Balco
Pt 100
Temp. Comp. Type
Manual
Auto
Auto - Solution
+/-X.XX pH/10C
Output
4 mA Point
20 mA Point
Linear
Non-linear
Program X1=Y1
through X5+Y5
Damping
Enter Seconds
Diagnostics
On or Off
Safe Mode
Fail Low
Fail High
Spike
Spike Magnitude
(0-100%)
