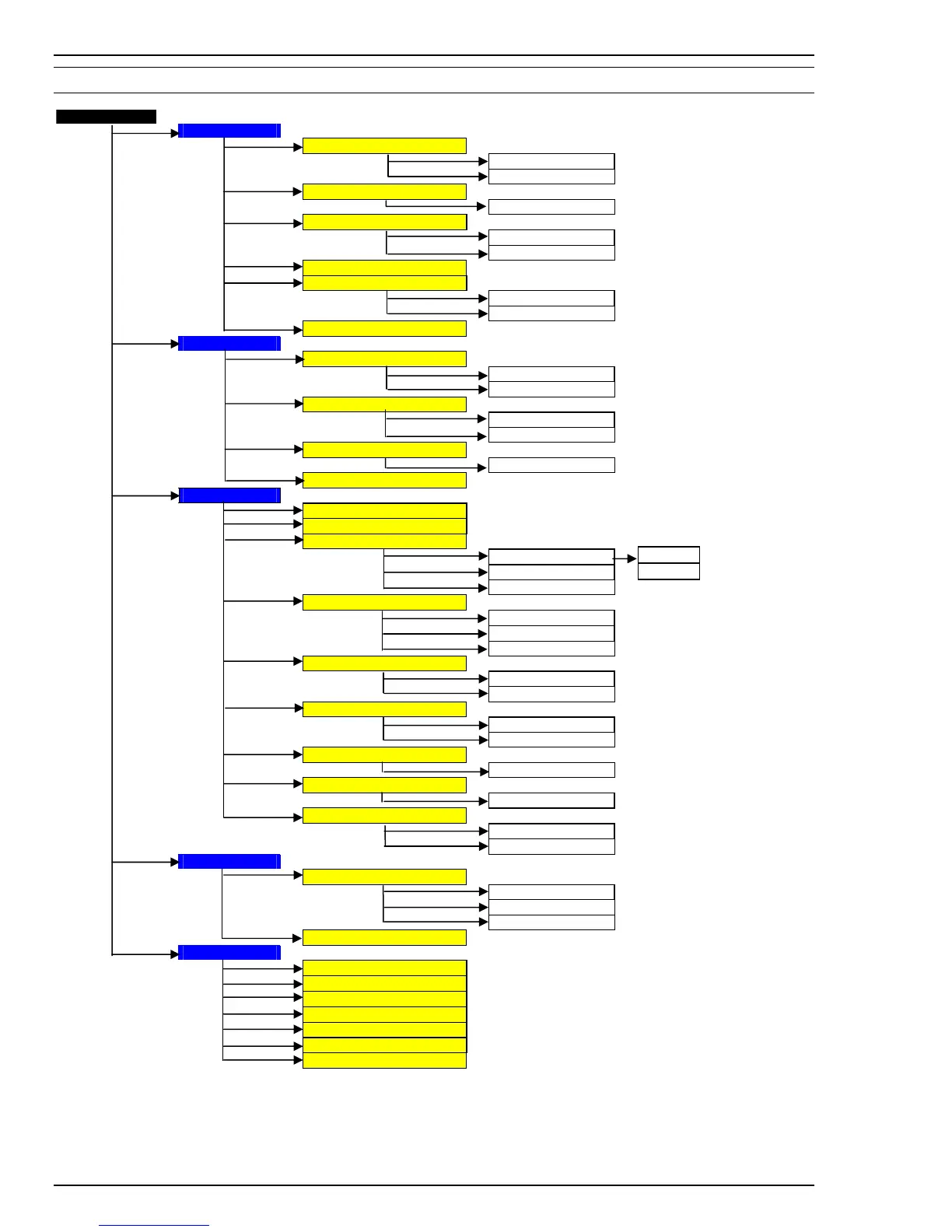

VERFAHREN BEIM BETRIEB – Ablaufdiagramm für den Betrieb im Standardmodus
MEASURE
CALIBRATE
pH Cal
1 Point Calibration
2 Point Calibration
Temperature Cal
Enter Temp
Edit Calibration
Enter Slope
Enter Offset
Reset Cal
Output Cal
Adjust 4 mA
Adjust 20 mA
Back to pH Cal
OUT/HOLD
Hold Output
Release Hold
Hold to XXX%
Rerange Output
4 mA Point
20 mA Point
Damping
XX.X Seconds
Back to Hold Output
CONFIGURE
Modify/View
Basic
Analyzer
pH
ORP
pIon
Temp. Sensor
None
3k Balco
Pt 100
Temp. Comp. Type
Manual
Auto
Output
4 mA Point
20 mA Point
Damping
Enter Seconds
Diagnostics
On or Off
Safe Mode
Fail Low
Fail High
SECURITY
Set Level
Calibrate
Output
Configure
Password
DISPLAY
Temperature °C
Temperature °F
Current Output
Diagnostic Alarms
Reference Impedance
Millivolt Input
Software Revision
pH Glass
Antimony
