TRANSMITTER MOUNTING DETAILS
Warning.
For installation in Hazardous
Areas, i.e. areas with danger
of fire and/or explosion,
irrespective of the protection
mode used, the installation
must carried out in accordance
with local authority regulations.
Ensure also that the tem-
perature of the transmitter
does not exceed the value
indicated in the Agency
Approval Label.
Caution.
Besides the normal
precautions for storage and
handling of electronic equip-
ment, the transmitter contains
static sensitive devices. Since
semiconductors can be
damaged by the direct
discharge of static electricity,
avoid contact with terminal
block conductors and elec-
tronic components on the
circuit board.
Note.
When mounting the trans-
mitter, choose a location that
has ample clearance for the
removal of the front bezel and
rear cover. The location
should provide easy access
for maintenance procedures
and not be in a highly cor-
rosive environment. Excessive
mechanical vibrations and
shocks as well as relay and
power switches should not be
in the immediate area. Signal
wiring should not be placed in
conduit or open trays that
contain power wiring for heavy
electrical equipment.
5/16" U-BOLT (2)
PIPE
MOUNT
BRACKET
3/8"
LOCKWASHER (4)
3/8"
FLATWASHER (4)
3/8" X 5/8"
BOLT (4)
5/16"
FLATWASHER (4)
5/16"
LOCKWASHER (4)
5/16"
NUT (4)
Pipe

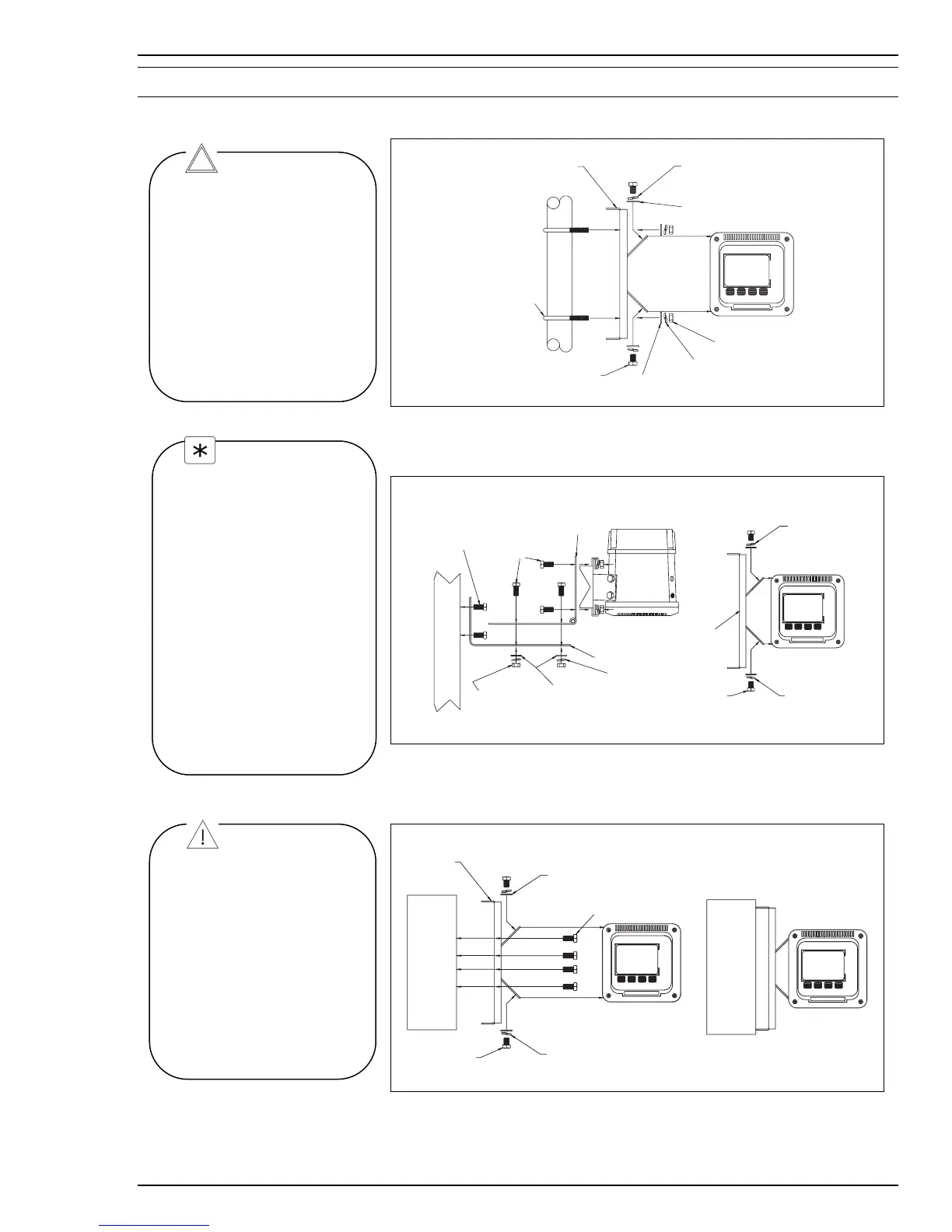

Figure 3 – Pipe Mounting Detail
Figure 4 – Hinge Mounting Detail
WALL
FASTENERS FOR
WALL (SUPPLIED BY
OTHERS)
3/8" NUT (8)
3/8"
FLATWASHER (8)
3/8"
FLATWASHER (4)
3/8"
LOCKWASHER (8)
3/8"
LOCKWASHER (4)
"L" BRACKET
FRONT VIEWTOP VIEW
3/8" X 3/4"
BOLT (8)
S.S. HINGE
PIPE MOUNT
BRACKET
3/8" X 5/8"
BOLT
Figure 5 – Wall Mounting Detail
WALL
PIPE
MOUNT
BRACKET
3/8"
FLATWASHER (4)
3/8" X 5/8"
BOLT (4)
3/8"
LOCKWASHER (4)
FASTENERS FOR WALL
(SUPPLIED BY OTHERS)
WALL
