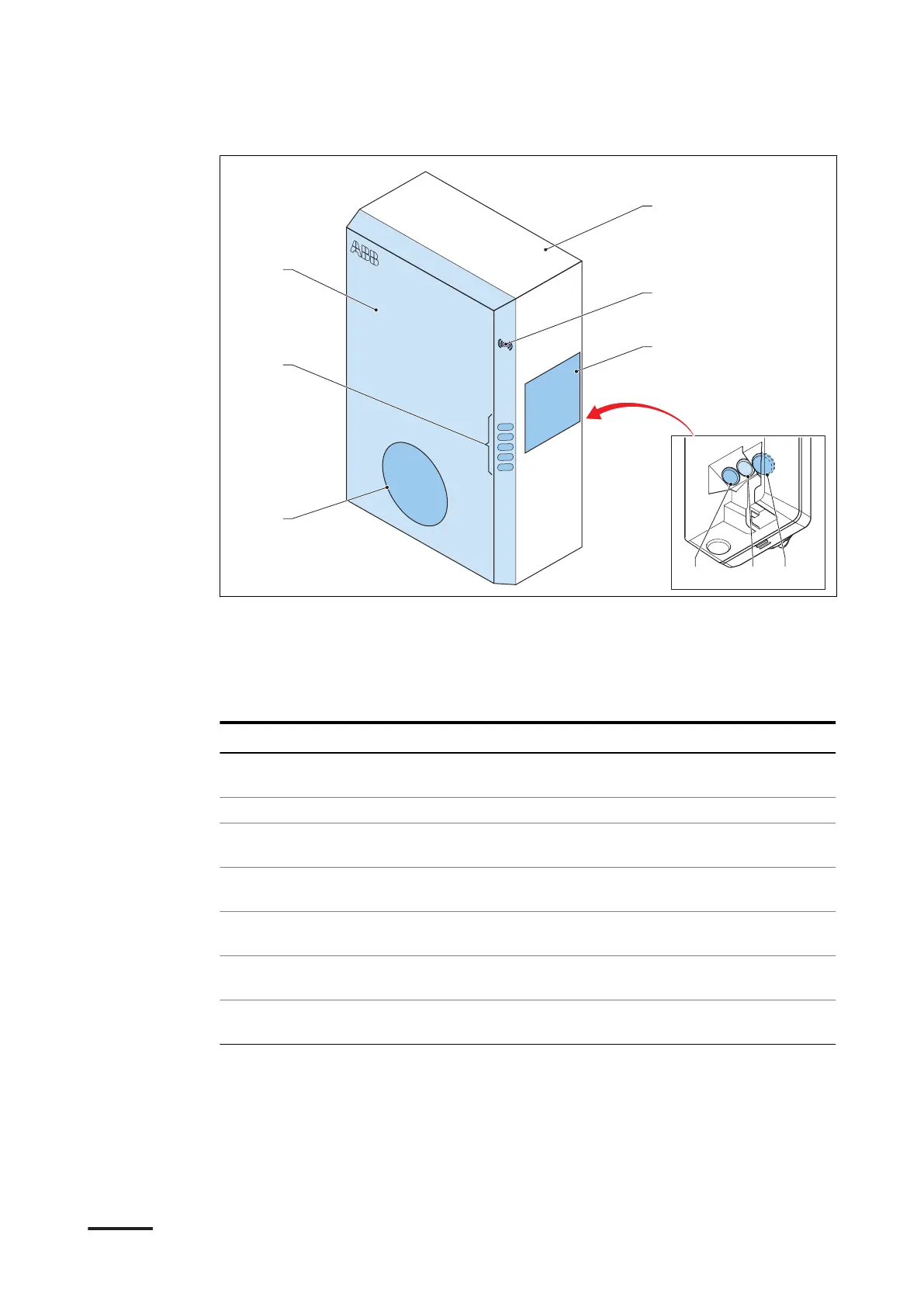

A Connection for the EV charge cable
B Openings for the smart meter
connections
C Opening for the Ethernet cable
D Opening for the AC input cable
E LED indicators
F Cabinet cover
G Enclosure
H RFID reader
I Product label
Part Function
Connection for the EV
charge cable
To connect the EV charge cable
Openings Openings for the cables that go into the EVSE
LED indicators To show the status of the EVSE and the charge ses-
sion. Refer to section 2.7.1.
Cabinet cover To prevent a user to access the installation and main-
tenance parts of the EVSE
Enclosure To reduce the accessibillity of unqualified persons to
the inside of the EVSE
RFID reader To authorize the start or stop of a charging session
with an RFID card
Product label To show the identification data of the EVSE. Refer to
section 2.3.
