ABB Terra AC - Overview of the EVSE, Inside (UL Model with Display)

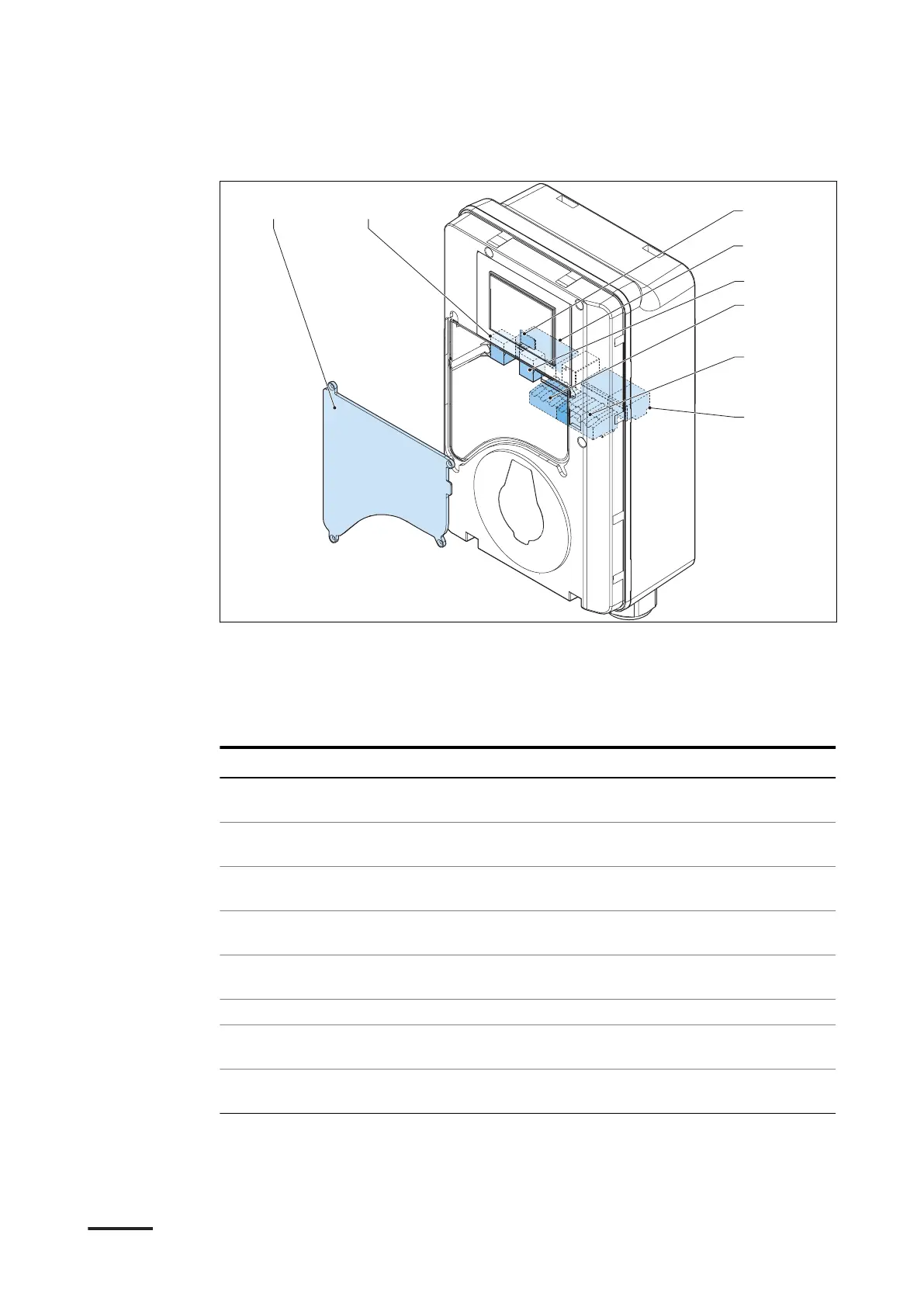

2.5.6 Overview of the EVSE, inside (UL model with display)
A B C
D
F
E
G
H
A Maintenance cover
B Primary Ethernet connection
C Socket for a Nano-M2M SIM card
D Terminal block for the AC input
E Secondary Ethernet connection
F Smart meter connection
G Terminal block for dry contacts
input and output
H Terminal block for the EV charge
cable or the socket
Part Function
Maintenance cover To prevent access to the electrical components of the
EVSE
Primary Ethernet connec-
tion
To connect the Ethernet cable
Socket for a Nano-M2M
SIM card
To connect the EVSE to the internet 4G
Terminal block for the AC
input
To connect the AC input cable from the grid
Secondary Ethernet con-
nection
To use one Ethernet cable connection for multiple EV-
SEs. There is no communication between the EVSEs.
Smart meter connection To connect the cables for Modbus RTU - RS485
Terminal block for dry con-
tacts input and output
Not used
Terminal block for the EV
charge cable or the socket
To connect the EV charge cable or the socket outlet
Description
18 BCM.V3Y00.0-EN | 002
