ABB Terra AC - Dimensions; AC input with socket, cable Type 2

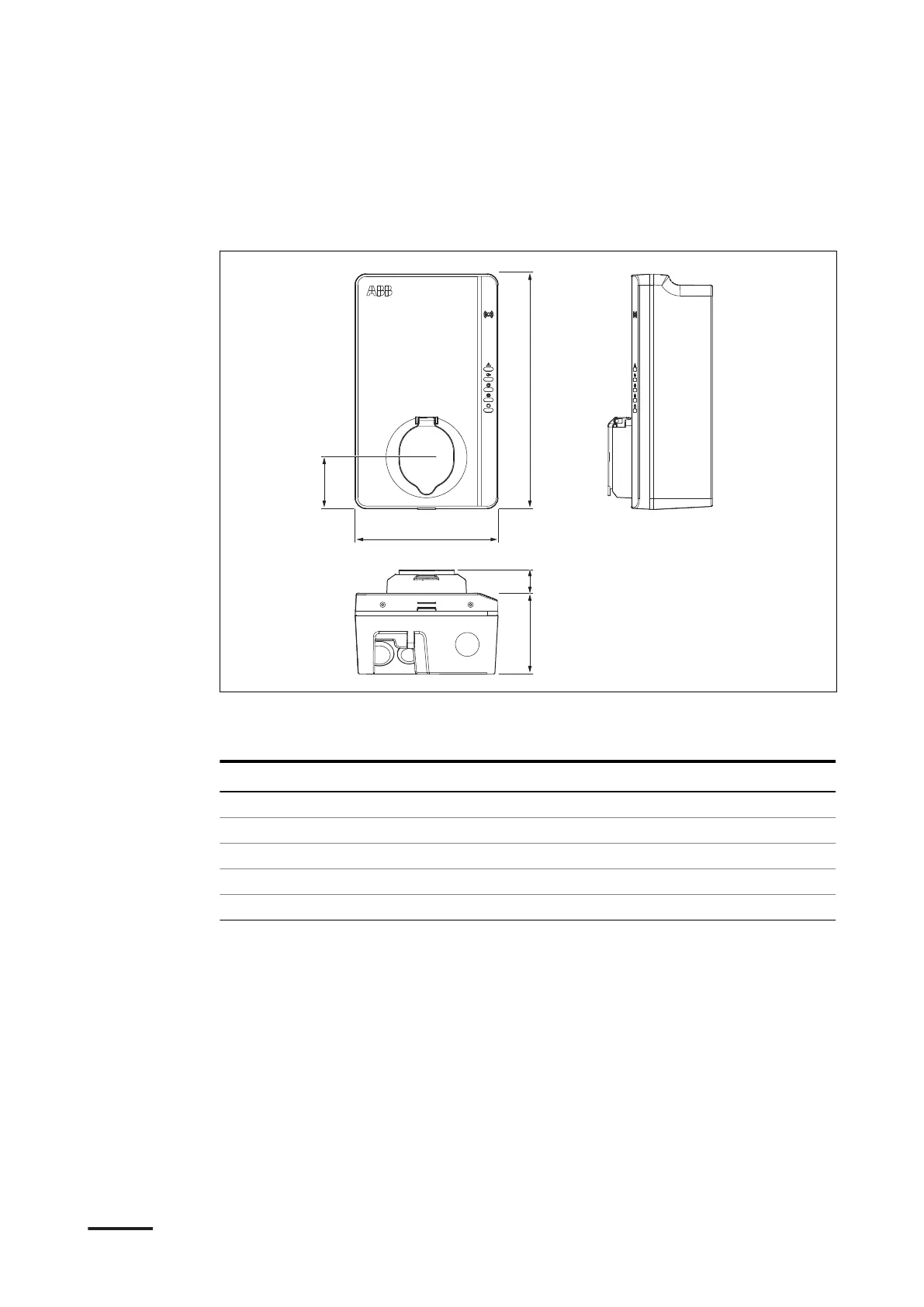

7.6 Dimensions
7.6.1 AC input with socket, cable Type 2
Z1
Y2
Y1
X
Z2
X Width of the EVSE
Y1 Depth of the EVSE
Y2 Depth of the socket
Z1 Height of the EVSE
Z2 Distance from the bottom of the
EVSE to the center of the socket.
Parameter Specification [mm]
X 195
Y1 110
Y2 33
Z1 320
Z2 70
Technical data
