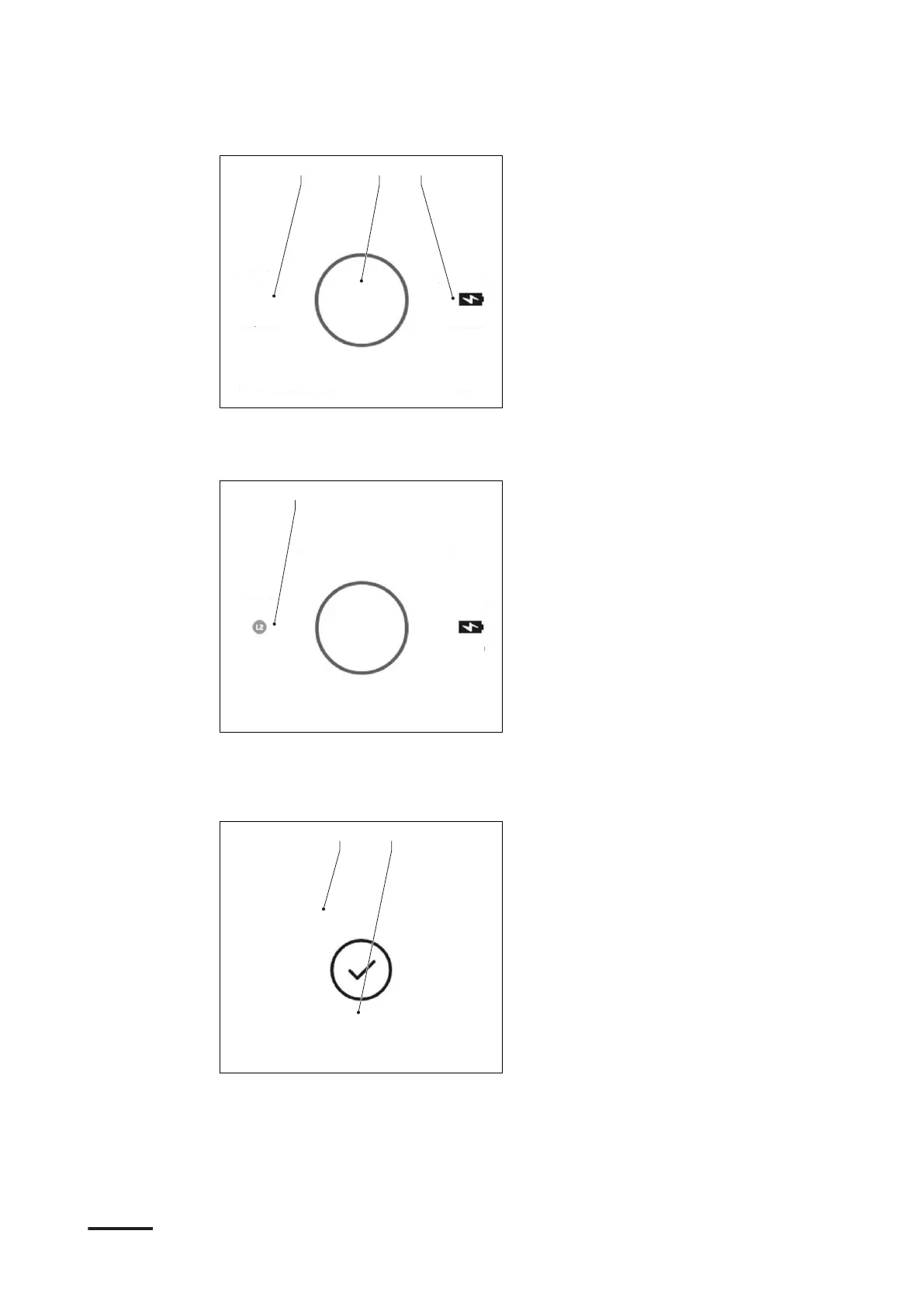

ABB Terra AC - Charging Completed Screen; Fault Detected Display Messages

30.07.2020 10:30
231,5V
31,86A
20,180kWh
02:41
7,3
kW
SN :
TACW2240120G4567
Total : 325.637,622 kWh
v 00.55.19
A B C
A Real-time voltage and current
B Real-time active power
C Energy delivered and duration of
the charge session
The display shows this Charging screen for a 3 phase EVSE:
30.07.2020 09:28
231,5V
31,86A
60,541kWh
02:41
21,9
kW
SN :
TACW2240120G4567
Total : 325.637,622 kWh
v 00.55.19
A
A Real-time voltage and current per
phase
2.9.6 Charging completed screen
30.07.2020 09:35
30.07.2020 06:54 - 30.07.2020 09:35
60,541kWh 02:41
SN :
TACW2240120G4567 v 00.55.19
Total : 325.637,622 kWh
A B
A Start and end time
B Energy delivered and duration of
the charge session
2.9.7 Fault detected display messages
The display shows different fault detected images, dependent on the type of fault.
Description
