ABB Terra AC - Overview; Overview of the System; Overview of the EVSE, Outside

2.5 Overview

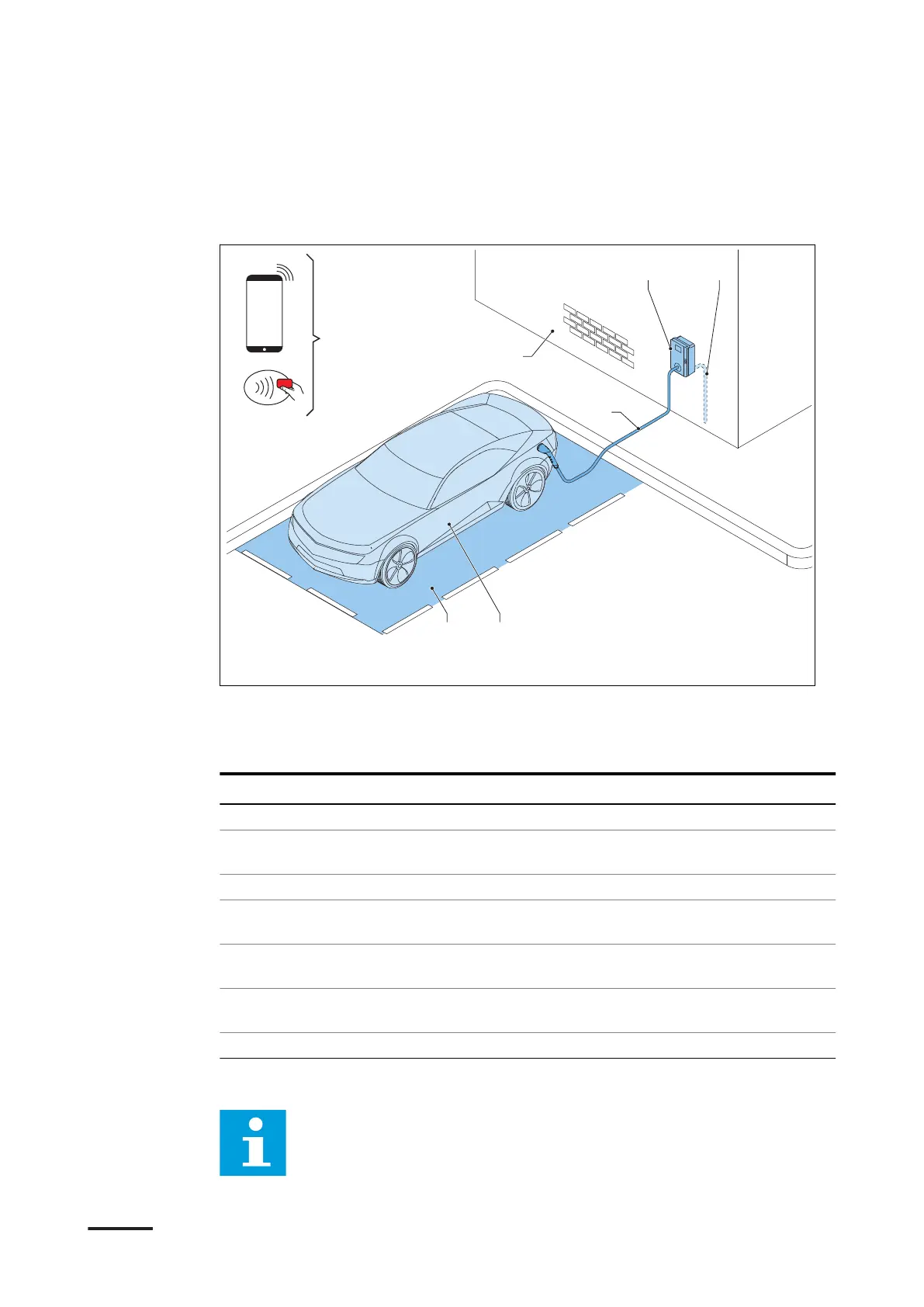

2.5.1 Overview of the system
E
A B
CD
G
F
A EVSE
B AC grid input
C EV
D Parking space
E RFID card or smartphone
F Structure to install the EVSE on
G EV charge cable
Part Function
EVSE Refer to section 2.2.
Structure To install the EVSE on and to keep the
EVSE in position.
AC grid input To supply the electricity to the EVSE
EV charge cable To conduct the current from the EVSE to
the EV
EV The EV of which the batteries need to be
charged
Parking space Location for the EV during the charge
session
RFID card or smartphone To authorize the user to use the EVSE
2.5.2 Overview of the EVSE, outside
Note:
The illustration shows the EVSE model without a display.
Description
