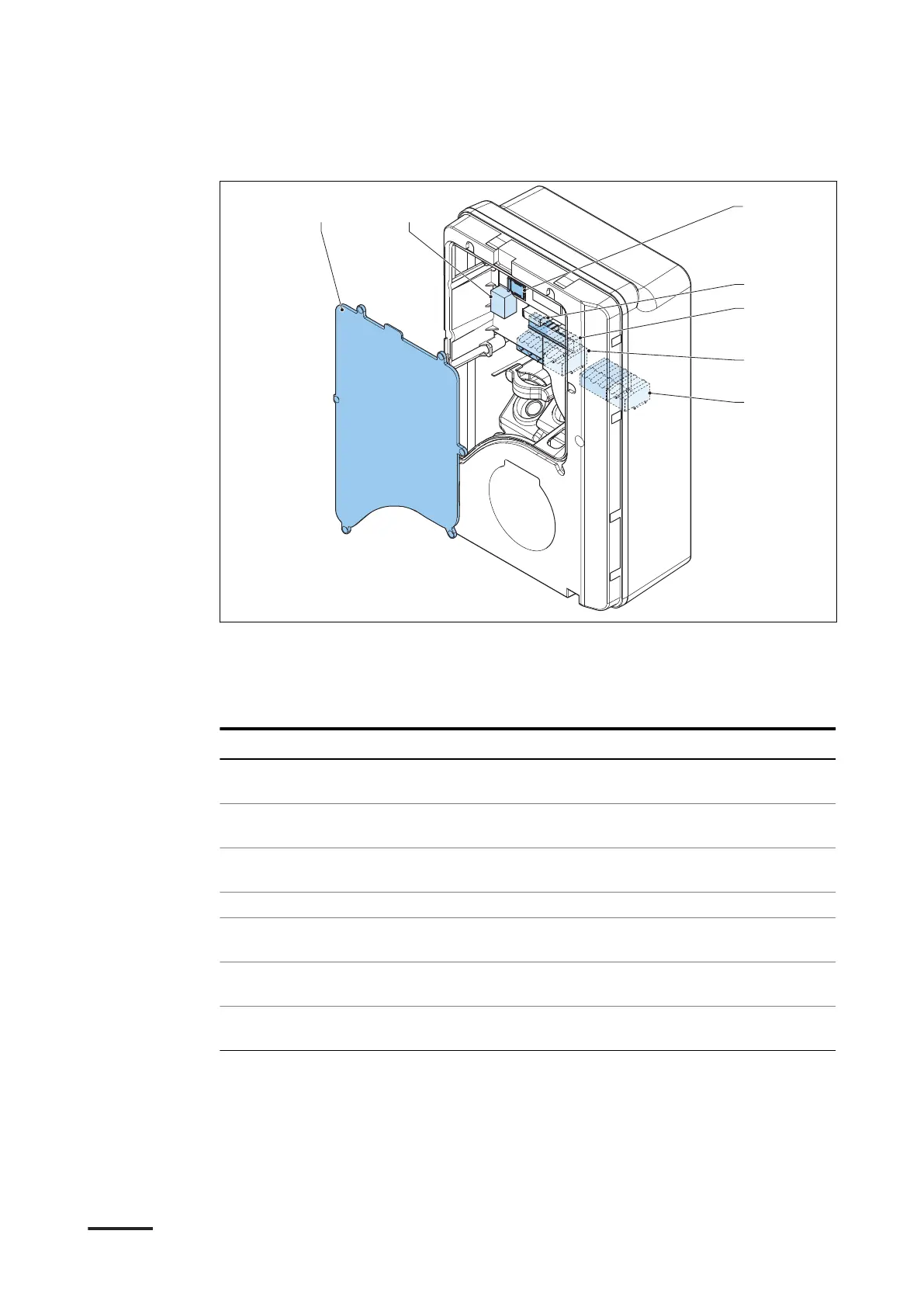

2.5.3 Overview of the EVSE, inside (CE model)
A B
C
E
D
F
G
A Maintenance cover
B Primary Ethernet connection
C Socket for a Nano-M2M SIM card
D Smart meter connection
E Terminal block for dry contacts
input and output
F Terminal block for the AC input
G Terminal block for the EV charge
cable or the socket
Part Function
Maintenance cover To prevent access to the electrical components of the
EVSE
Primary Ethernet connec-
tion
To connect the Ethernet cable
Socket for a Nano-M2M
SIM card
To connect the EVSE to the internet 4G
Smart meter connection To connect the cables for Modbus RTU - RS485
Terminal block for dry con-
tacts input and output
Not used
Terminal block for the AC
input
To connect the AC input cable from the grid
Terminal block for the EV
charge cable
To connect the EV charge cable or the socket outlet
Description
