E-OCD II Debugger User’s Manual Debugger Software (for Microsoft Windows)
53
7) Set data break
: This function is available only to OCD II devices. Double-click on data in the window to set
or remove a data break. Double-clicking on an already set data break will pop up the dialog
box shown below.
Once a data break is set, its address field is colored in blue. Refer to the Set data break
section for details.

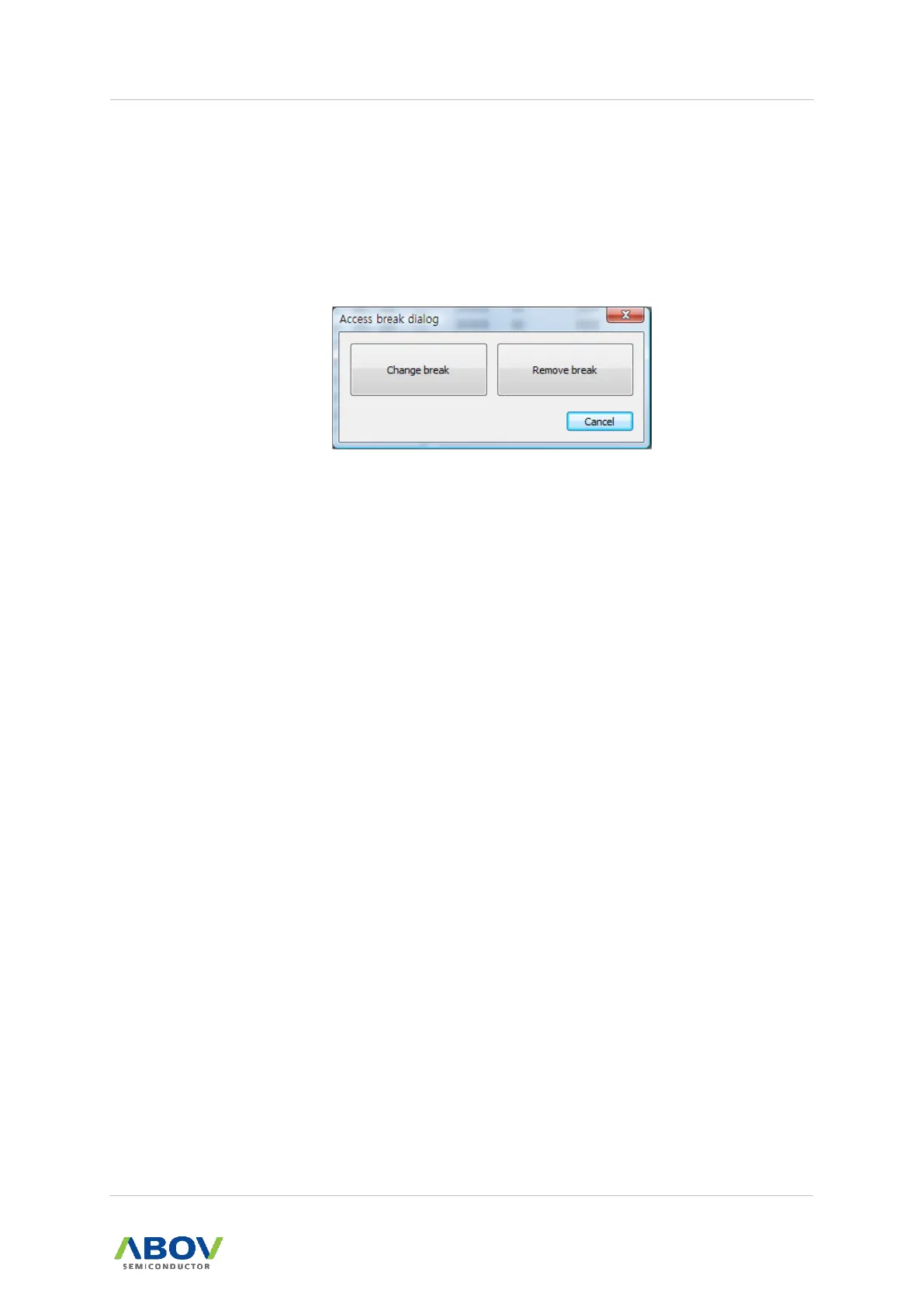

Figure 3-56 Access Break Dialog
