E
-
OCD II Debugger
User
’s Manual
Debugger Software (for
Microsoft Windows
)
67
4)
Goto line # (G)
:
This
takes
you
to
your
de
sired
line
in
the
text
file.
Selecting
th
is
will
prompt
you
to
type
in
a
decimal line num
ber.

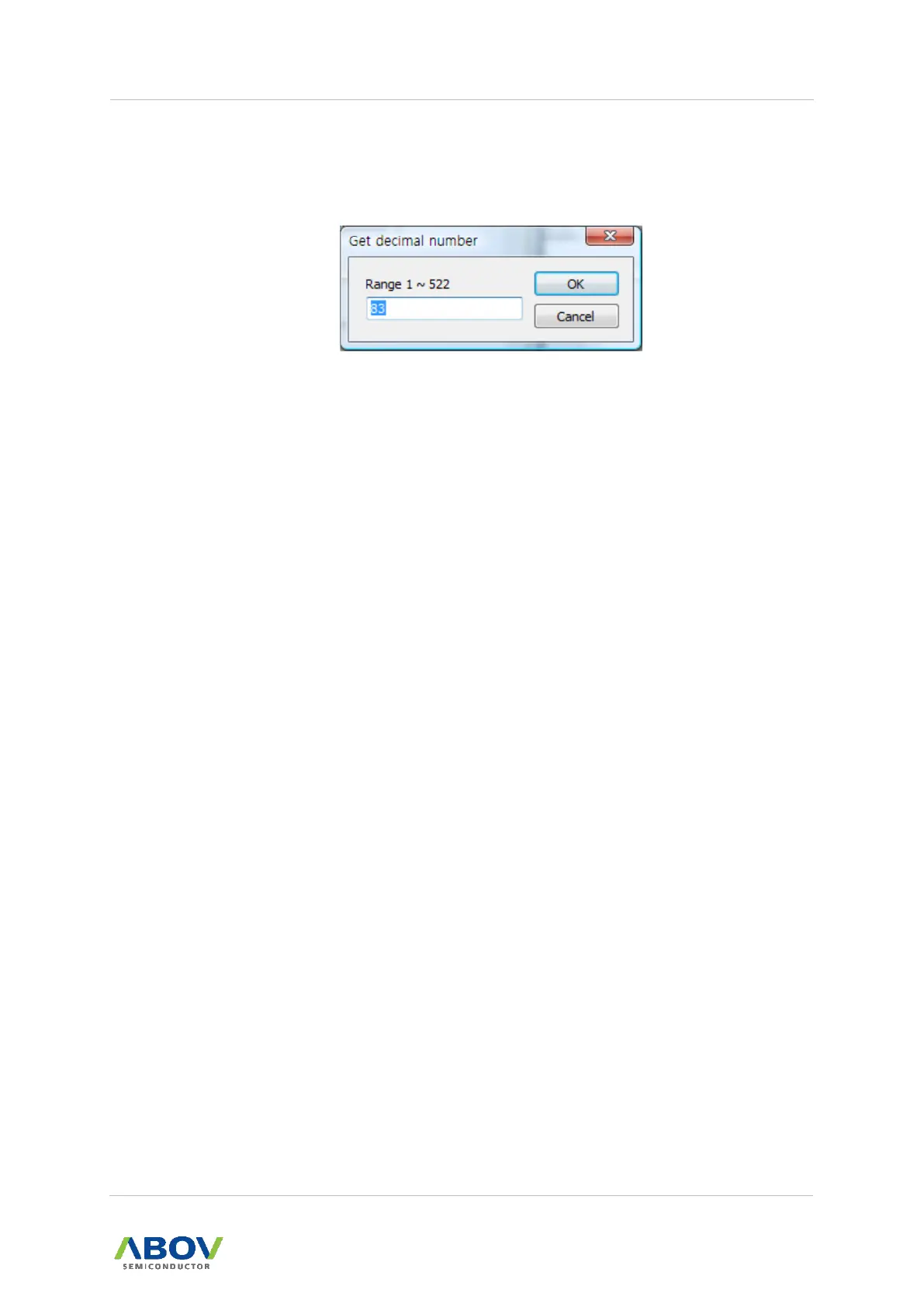

Figure 3-
79
Get D
ecima
l Number Dia
log
66
68
Table of Contents
Table of Contents
2
Introduction
4
E-OCD II the Chip and Onboard Debugging Solution
4
Software Requirements
4
Hardware Requirements
4
Software Installation
5
Hardware Driver Detection
11
Human Interface Devices
11
OCD II Interface Hardware
14
E-OCD II Interface
14
Features of E-OCD II H/W
14
E-OCD H/W Connection
15
Hardware Connection/Disconnection Procedures
16
E-OCD II Interface Connection
16
E-OCD II Interface Disconnection
17
E-OCD II Power out to Target System
17
Debugger Software (for Microsoft Windows)
18
Debugger Software Features
18
Common Features
19
Menu Descriptions
21
File
22
View
23
Emulation
28
Break/Configure
33
Power out (3.3V or 5.0V)
42
Test
44
Window
46
Help
47
Toolbar
47
Child Windows
48
Child Window Alignment
48
Code Dump View
51
Code Disassemble View
54
XDATA Dump View
56
IDATA (IRAM) Dump View
59
SFR Dump View
61
Registers View
62
Source View
65
Global Variable View
68
Local Variable View
74
Keil Plug-In
76
Basic Features
76
Getting Started
77
User Guide
77
Keil Plug-In Setup
78
Bind PK51
78
Add Flash Control to Your Project
79
Add Debugger Control to Your Project
80
IAR 8051 GUI (Compiler and Debugger)
81
Basic Features
81
USB Kernel Driver Installation
81
Abov's SDK DLL Connections
82
IAR Project Settings
83
Download Hex File
85
Cautions for Debugging
87
SDK DLL Compatibility According to IAR Versions
89
Appendix: E-OCD II Isolator Interface
90
Revision History
91
