AC Tech MC1000 series User Manual

1. Press the PROG/RUN key. This will cause the PASSWORD prompt
to appear (unless the password protection has been disabled), as
shown below:

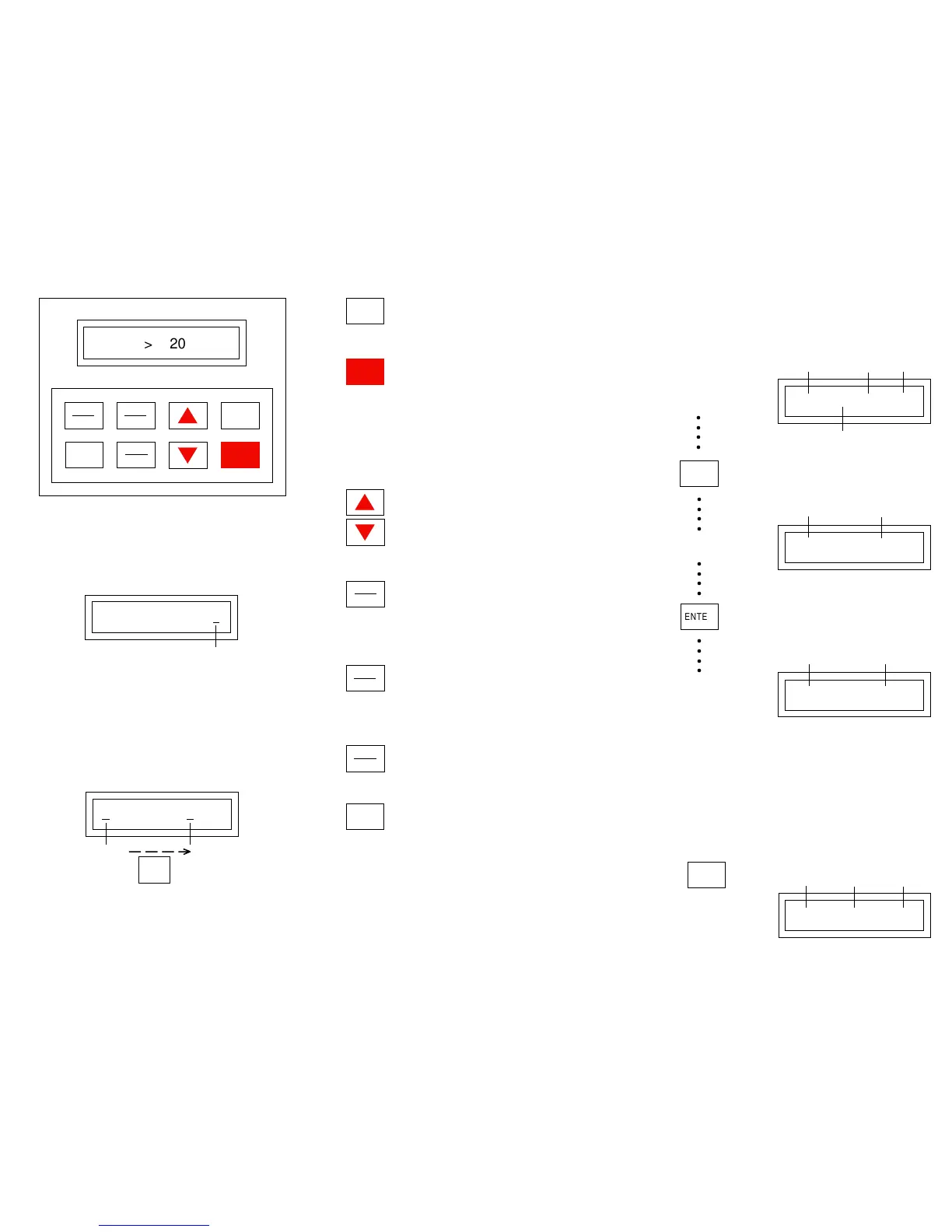

THE MC1000 KEYPAD
PROGRAMMING THE MC1000 DRIVE
MC1000 KEYPAD FUNCTIONS
MC1000 DISPLAYS
Shown below are examples of MC1000 displays. To scroll through
the SPEED, LOAD, and MOTOR VOLTAGE displays, press and
release the ENTER key.
Press and hold the ENTER key to activate the AUXILIARY MODE
display, which indicates the control source (LOCAL, REMOTE, or
SERIAL), AUTO or MANUAL mode, and the speed reference
source. An example is shown below (IDC = 4-20 mA signal):
LOCAL -- AUTO -- IDC
CONTROL
SOURCE
AUTO/MAN
MODE
SPEED
REFERENCE
SOURCE
2. Use the ! and " keys to scroll to the correct password value
(the factory default password is 0019) and press ENTER. The
PROGRAM mode will be entered at the start of the parameter
menu. A cursor will highlight the parameter name.
3. Use the ! and " keys to scroll to the desired parameter and
press ENTER. The cursor will shift from the parameter name
to the parameter value, as the example below illustrates:
4. Use the ! and " keys to scroll to the desired parameter value,
and press ENTER to store the new value.
5. Press PROG/RUN to exit the PROGRAM mode.
Press the START key to start the drive. The START
key is only active in LOCAL mode.
Press the STOP key to stop the drive.
NOTE: The STOP key is active in both LOCAL
and REMOTE mode.
The STOP key is also used to reset faults. If the
fault condition has passed, pressing the STOP key
will clear the fault and return the drive to a STOP
condition.
UP and DOWN ARROWS - Used to change the
speed setpoint in MANUAL mode, scroll through
the parameter menu, and change parameter values.
Toggles between FORWARD and REVERSE rotation.
NOTE: Parameter 27 - ROTATION must be set to
FWD & REV, and the drive must be in LOCAL
mode for this key to be active.
Toggles between AUTOMATIC (terminal strip) and
MANUAL (keypad) speed control.
NOTE: Parameter 28 - AUTO/MAN must be set to
BOTH for this key to be active.
Used to enter and exit the PROGRAM mode to set
the parameters.
Used for: toggling the display between SPEED,
LOAD, and MOTOR VOLTAGE; confirming new
parameter values; confirming AUTO and MANUAL
speed control selections; confirming LOCAL and
REMOTE start/stop mode selections.
Press and hold the ENTER key to activate the
AUXILIARY MODE, which consists of two displays
that cycle in one second intervals. One indicates
LOCAL/REMOTE mode, AUTO/MANUAL mode,
and the speed reference source, and the other is an
elapsed time meter that indicates total run time.
START
STOP
ENTER
PROG
RUN
AUTO
MAN
AUXILIARY MODE
DISPLAY
PRESS
& HOLD
ENTER
SPEED DISPLAY
LOAD DISPLAY
MOTOR VOLTAGE
DISPLAY
○○○○
ENTER
ENTER
PASSWORD 0000
CURSOR
ACCEL 30.0 SEC
CURSOR
ENTER
FWD
REV
RUN > 85% LOAD
DRIVE
STATUS
PERCENT
LOAD
RUN > 460 VAC
DRIVE
STATUS
MOTOR
VOLTAGE
RUN > 60.00 HZ
DRIVE
STATUS
SPEED
SETPOINT
SPEED
UNITS
○○○○
○○○○ ○○○○
STOP > 20.00 HZ
START
STOP
ENTER
FWD
REV
AUTO
MAN
PROG
RUN
ROTATION DIRECTION
(“>” = Forward, “<” = Reverse)
