QUALITY CONTROLS - 5
VerifyNow System User Manual Page 41 14340.J

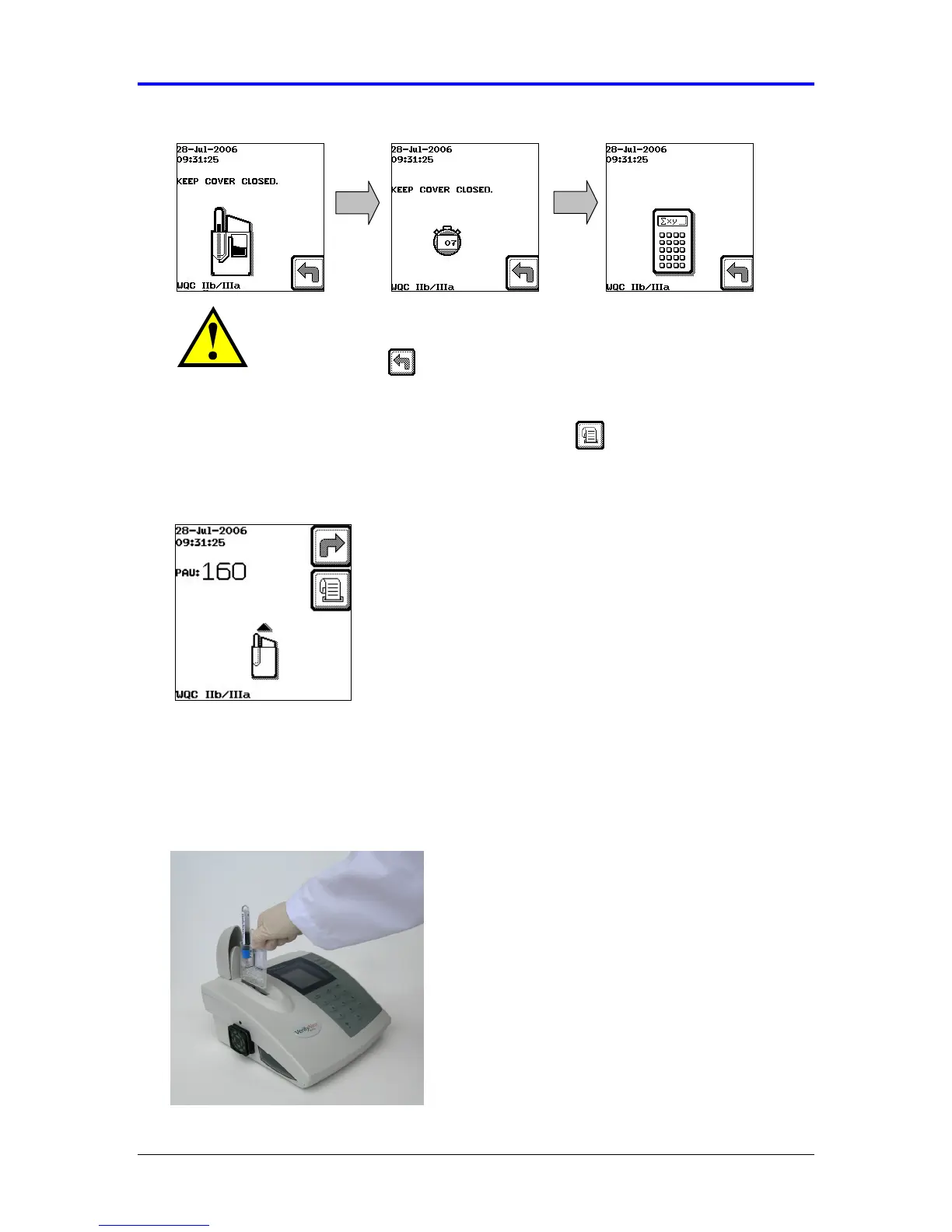

Figure 5-29 Assay Progress
CAUTION: The sample is pressurized during the assay. Do not
remove the sample tube or assay device during the assay. To abort,
press the Back key. Wait for the prompt before removing the
assay device along with the tube.
16.
When the results display, record the results or print the results, if your
instrument has an attached printer (Figure 5-30).
Figure 5-30 WQC Level 2 Result
17.
Open the cover. Remove the assay device and tube together in one piece by
grasping the assay device finger grip and pulling straight up (Figure 5-31). Do not
separate the tube from the assay device. Close the cover. Discard the assay
device and tube in a biohazard waste in accordance with institutional guidelines.
Figure 5-31 Remove Device
To Next Page
