Mainboard Removal 0
Prerequisite:
Bluetooth Module Removal
1. Find the mainboard (A) on the lower case (Figure 3-18).

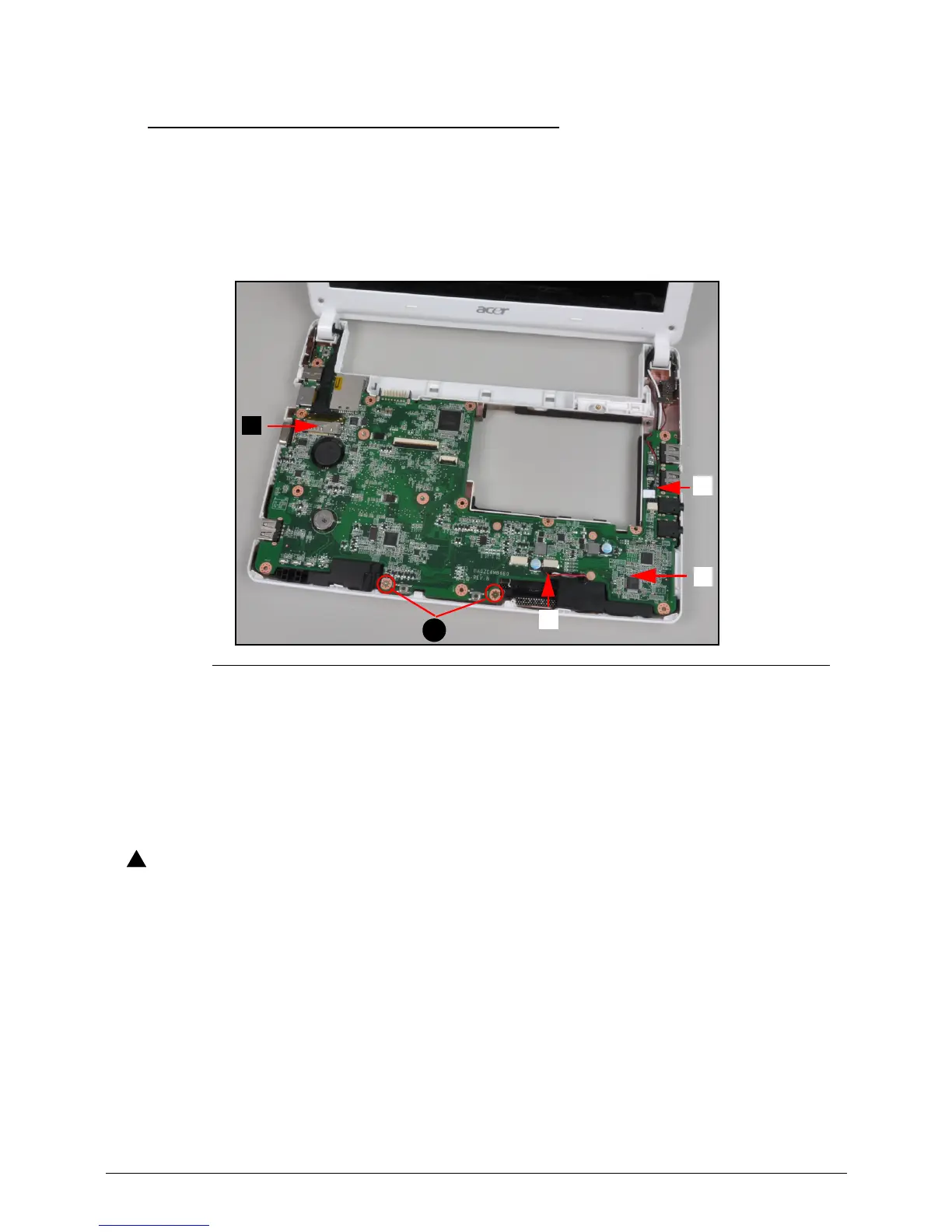

Figure 3-18. Mainboard Location
2. Disconnect the speaker cable from the mainboard connector (B) (Figure 3-18).
3. Disconnect the microphone cable from the mainboard connector (C) (Figure 3-18).
4. Disconnect the LVDS cable from the mainboard connector (D) (Figure 3-18).
5. Remove two (2) screws (E) from the mainboard (Figure 3-18).
6. Remove the mainboard by lifting it from the lower case.
CAUTION:
!
Make sure all cables are moved away from the device to avoid damage
during removal.
