Acer AOHAPPY2 - Thermal Module Removal

Machine Maintenance Procedures 3-25
Thermal Module Removal 0
Prerequisite:
Mainboard Removal
1. Disconnect the thermal fan cable (A) from the mainboard connector (B) (Figure 3-21).
2. Remove two (2) screws (C) from the thermal module (Figure 3-21).

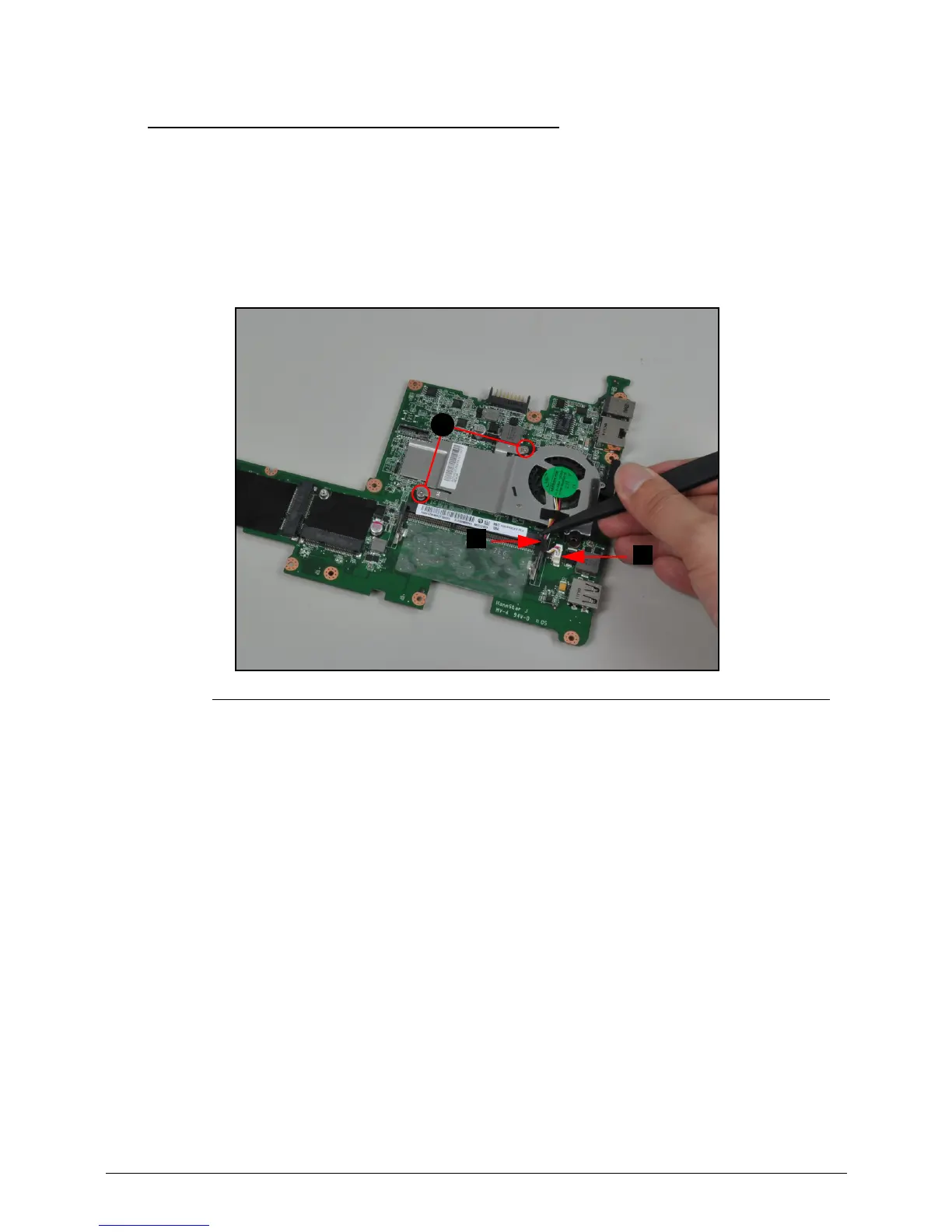

Figure 3-21. Thermal Module
C
A
B
