LCD Panel Removal 0
Prerequisite:
LCD Bezel Removal
1. Find the camera module (B) on the LCD module. Refer to Figure 3-28.
2. Disconnect the camera cable (A) from the connector (B) (Figure 3-29).

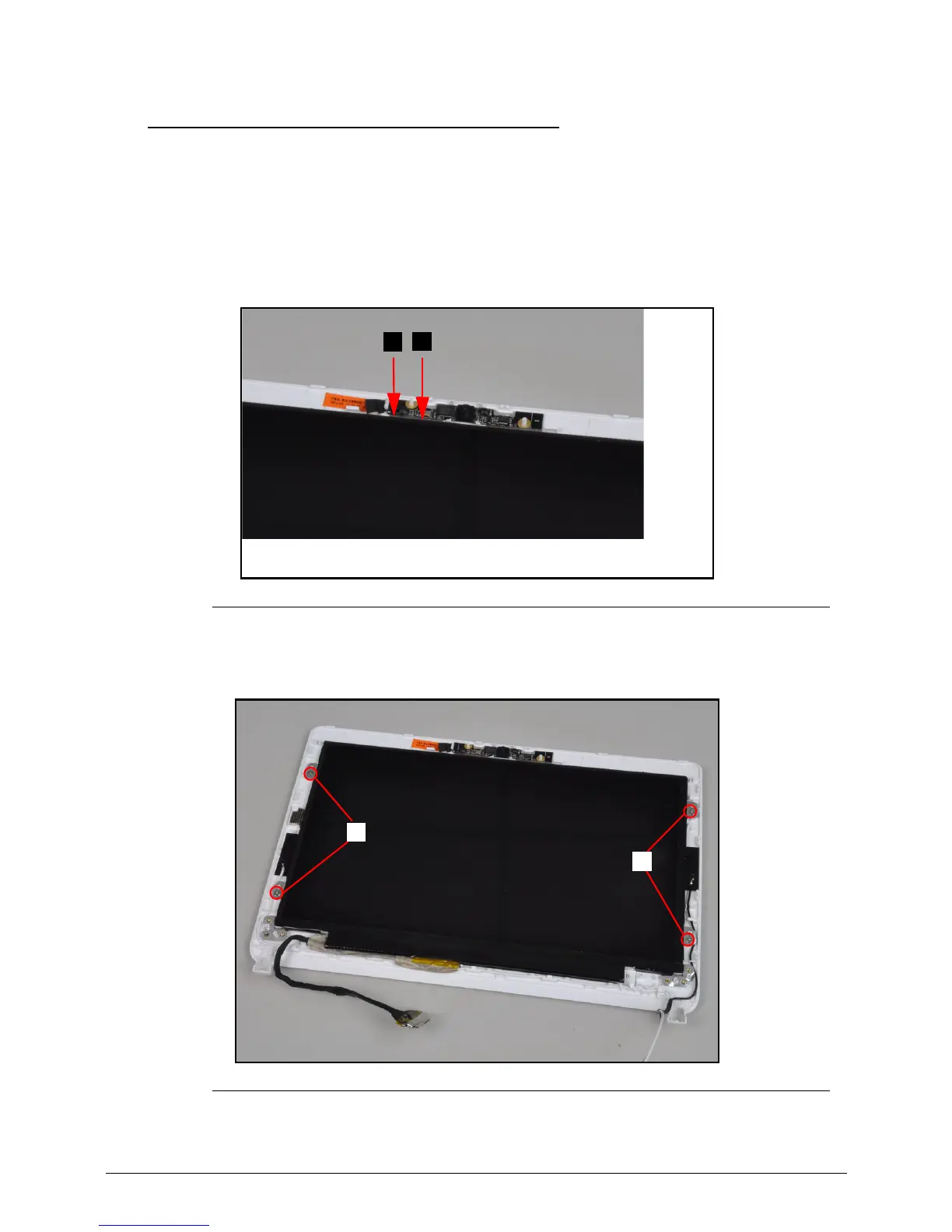

Figure 3-31. Camera Disconnect
3. Remove the four (4) screws (C) (Figure 3-32).
Figure 3-32. LCD Panel Screws
4. Remove the LCD panel from the LCD cover as shown in Figure 3-33.
