Acer AOHAPPY2 - Mainboard Installation

Machine Maintenance Procedures 3-23

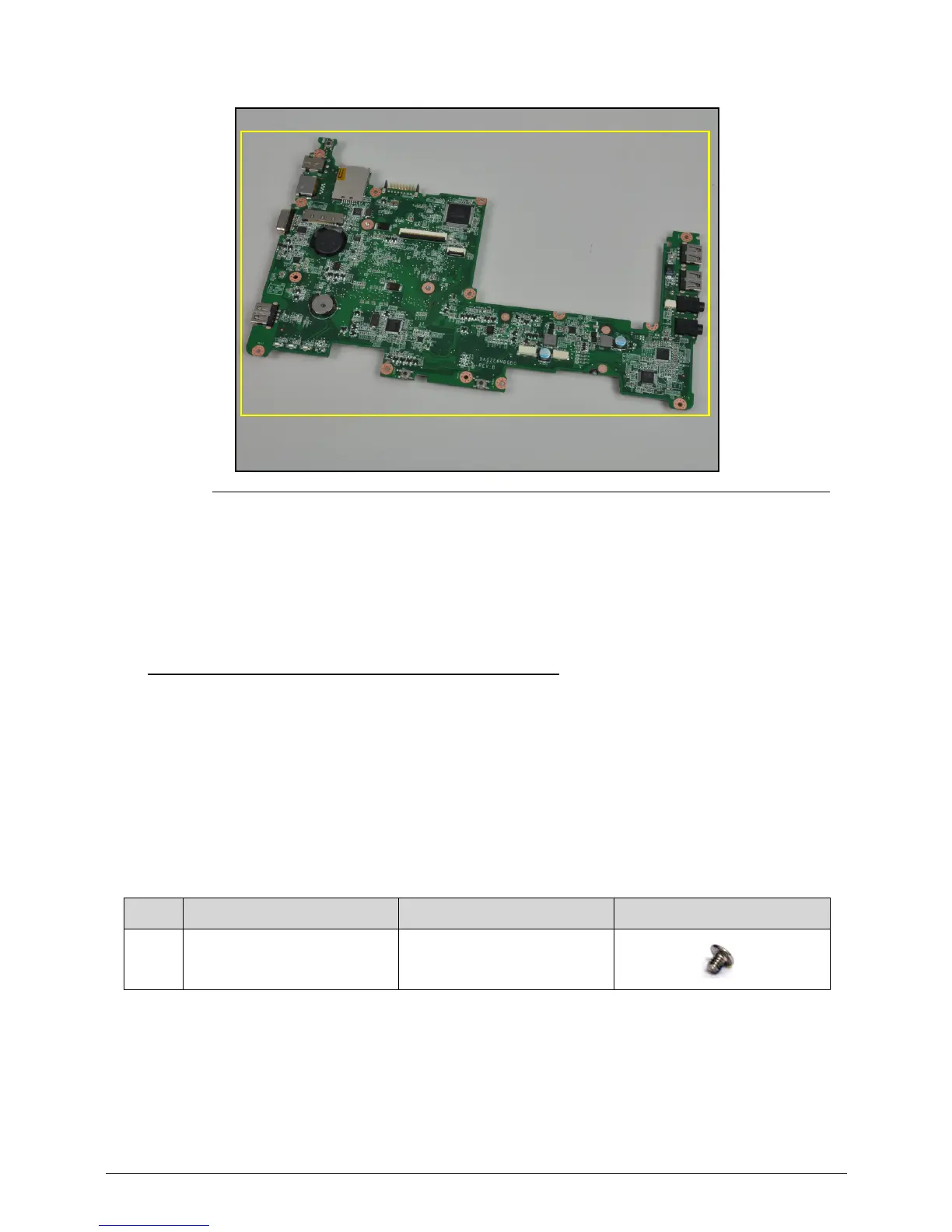

Figure 3-19. Mainboard
IMPORTANT:
+
The mainboard is shown in the above image. Please follow local
regulations for disposal.
Mainboard Installation 0
1. Place the mainboard onto the lower case (Figure 3-18).
2. Install and secure two (2) screws (E) to the mainboard (Figure 3-18).
3. Connect the LVDS cable (D) to the mainboard connector (Figure 3-18).
4. Connect the microphone cable (C) to the mainboard connector (Figure 3-18).
5. Connect the speaker cable (B) to the mainboard connector (Figure 3-18).
6. Install the Bluetooth module.
ID
Size Quantity Screw Type
E M2.0*3.0 NI 2
