Machine Maintenance Procedures 3-15
3. Remove the hard drive as shown in Figure 3-11.

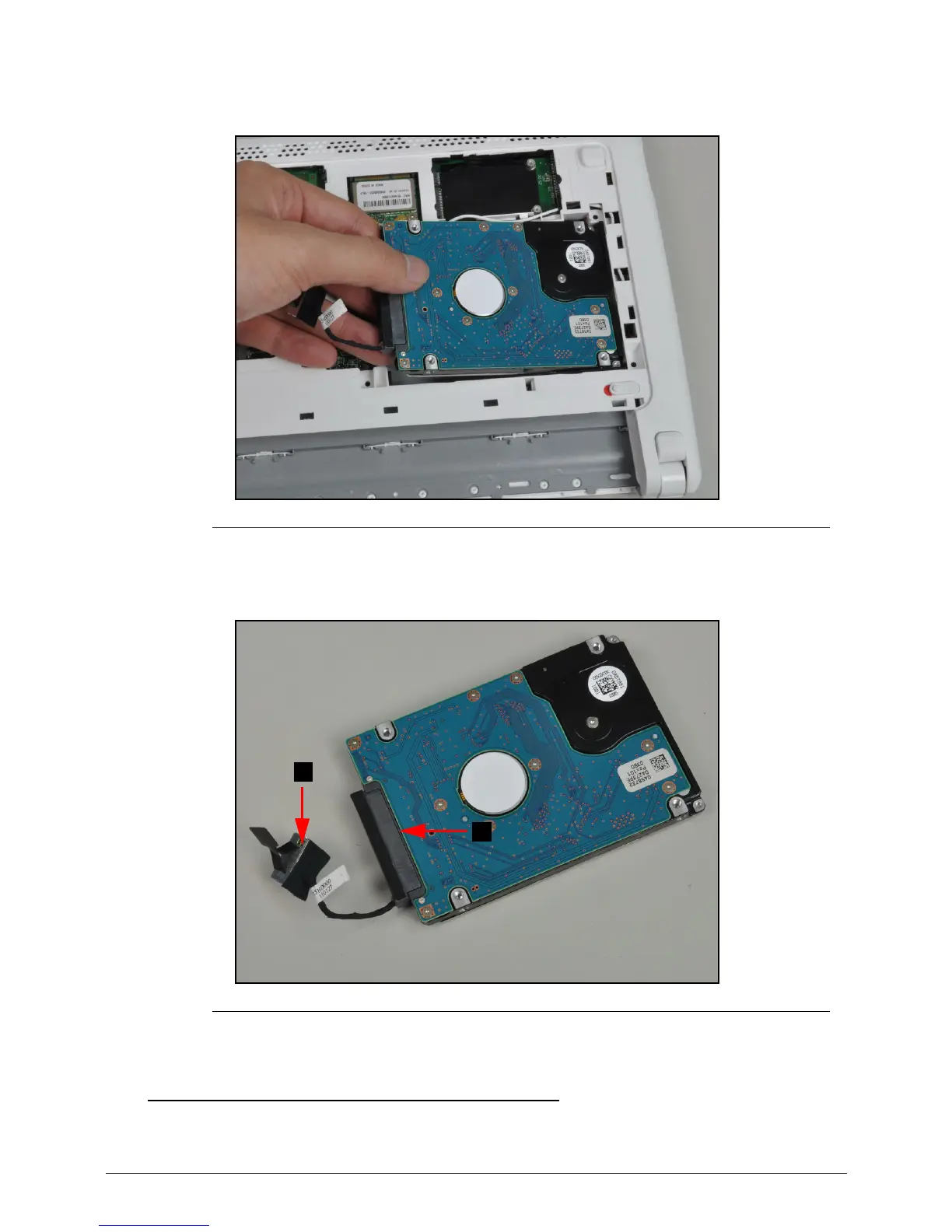

Figure 3-11. Hard Drive Removal
4. Disconnect the hard drive FPC (C) from the hard drive connector (D) Figure 3-12.
Figure 3-12. Hard Drive FPC Removal
Hard Disk Drive Installation 0
1. Connect the hard drive FPC (C) to the hard drive connector (D). Refer to Figure 3-12.
