Acer AOHAPPY2 - Base Cover Removal

Machine Maintenance Procedures 3-13
Base Cover Removal 0
Prerequisite:
Keyboard Removal
1. Remove fourteen (14) screws from the upper case (Figure 3-15).

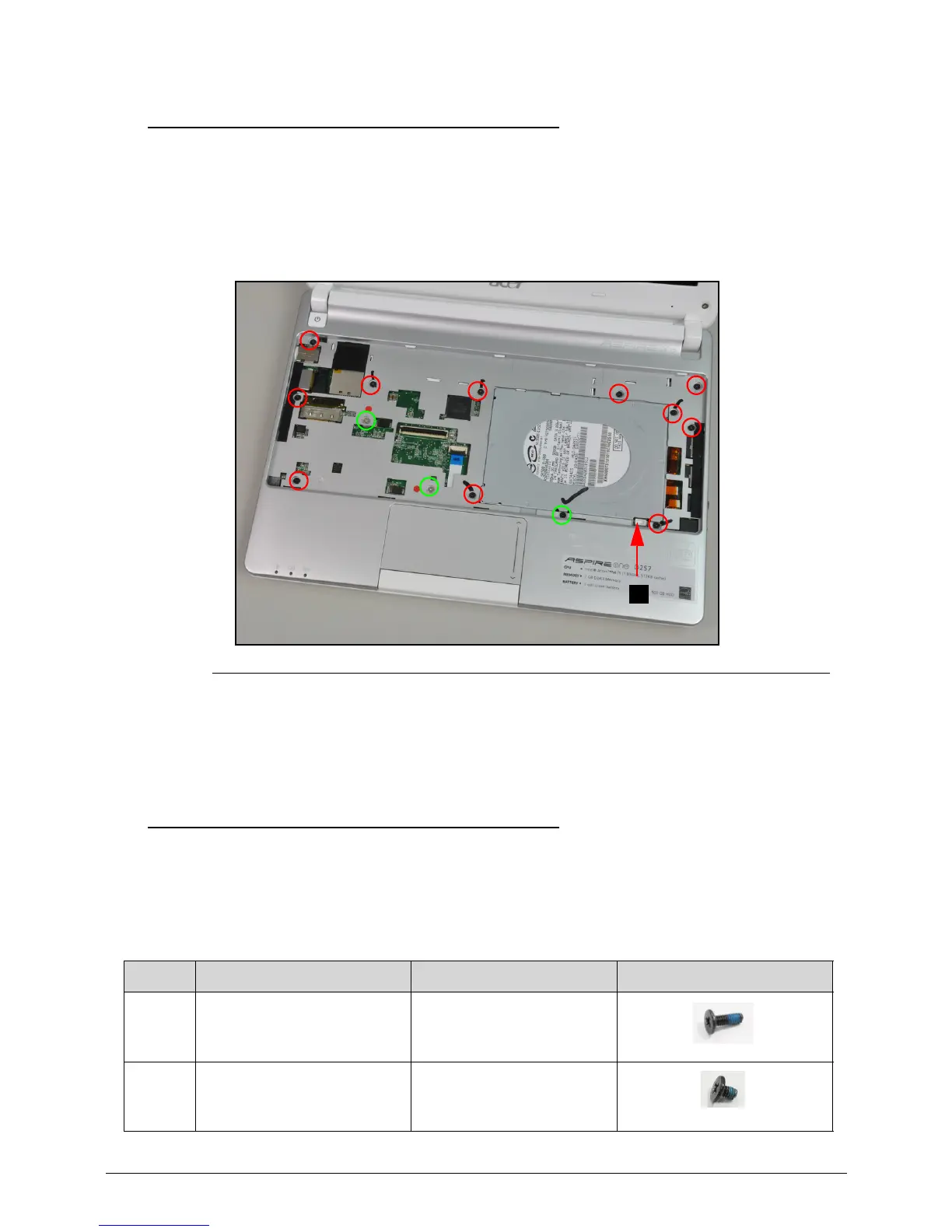

Figure 3-8. Base Cover Screw Removal
2. Press downward on the tab (A) to release the base cover. (Figure 3-8).
3. Flip the system over and remove the base cover.
Base Cover Installation 0
1. Install the base cover and press downward until the tab engages.
2. Secure the fourteen (14) screws. Refer to Figure 3-8.
3. Install the keyboard.
ID Size Quantity Screw Type
Red
Call
out
M2.0*7.5 11
Green
Call
out
M2.0*4.0 3
A
