Acer AOHAPPY2 - Exploded Diagrams

6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0

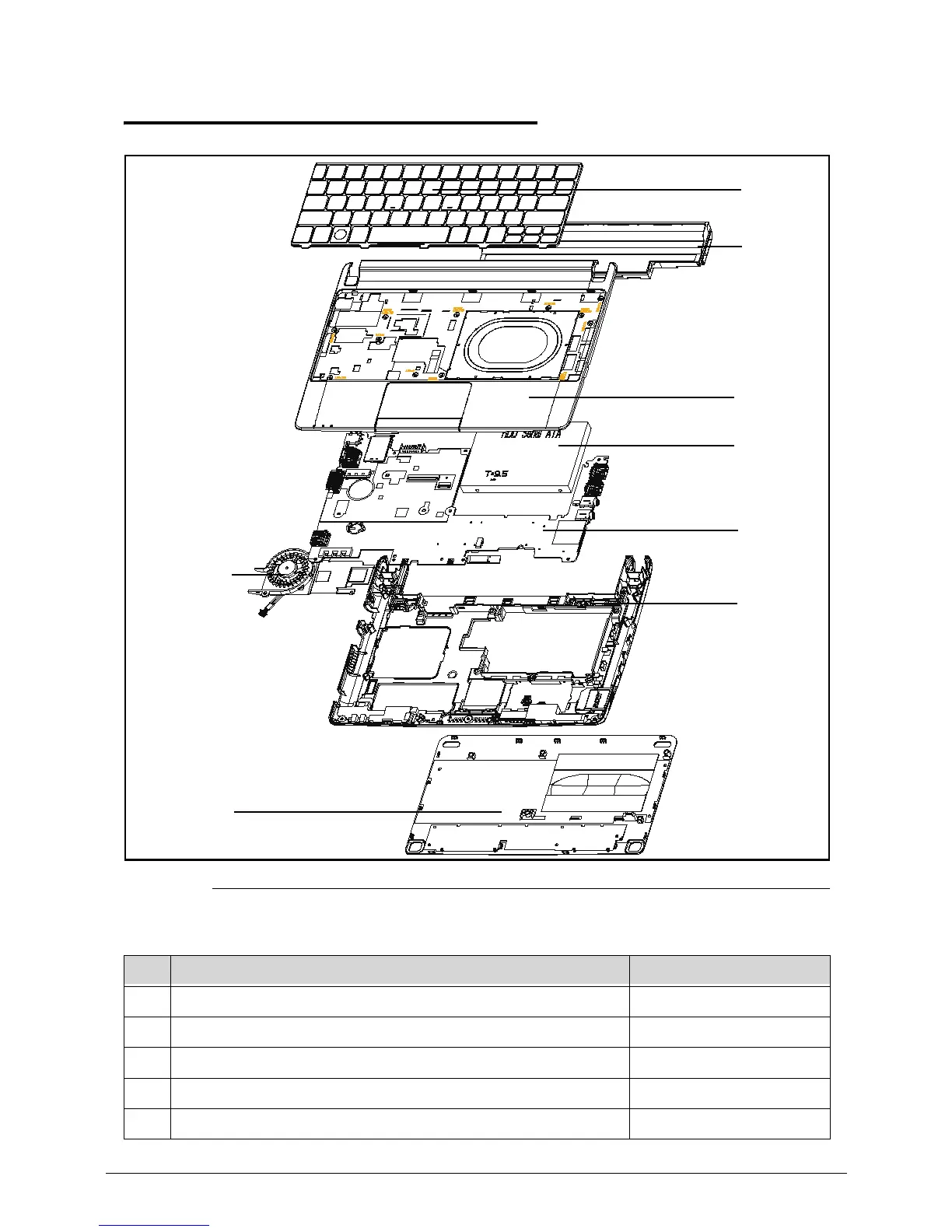

Figure 6-1. Upper & Lower Cover Exploded Diagram
Table 6-1. Upper & Lower Cover Exploded Diagram
No. Description Acer Part No.
1 Keyboard KB.I100A.086
2 Battery BT.00303.023
3 Upper Case 60.SFS07.001
4 HDD Module KH.25007.020
5 Mainboard MB.SG406.003
1
2
3
4
5
6
7
8
