Machine Maintenance Procedures 3-39
2. Starting from the top, remove the clear mylar tape (C) and disconnect the LVDS cable
from the LCD panel connector (B)
(Figure 3-35).

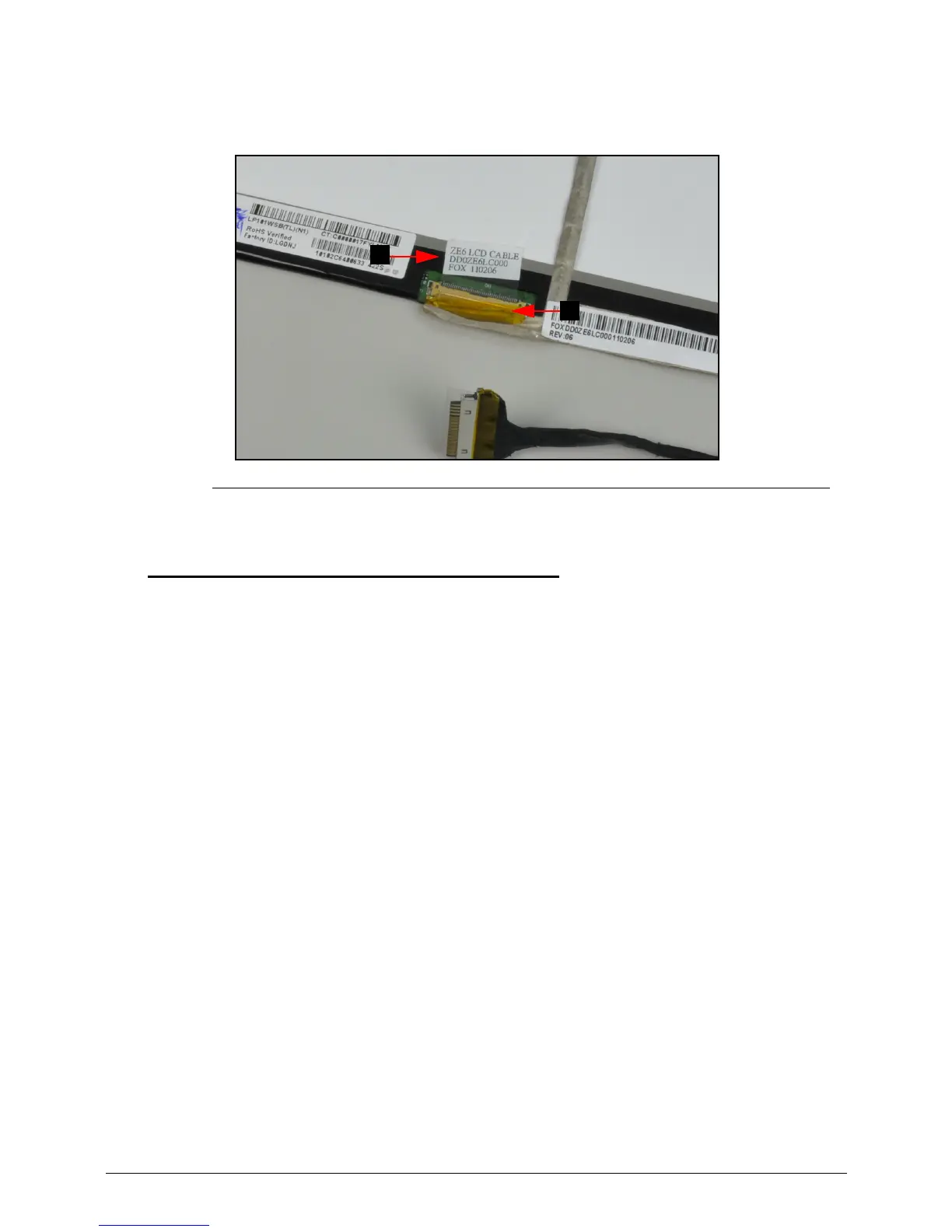

Figure 3-35. LVDS Cable Connector
LVDS Cable Installation 0
1. Place the LVDS cable into the LCD panel connector (B) and secure the clear mylar tape
(C)
(Figure 3-35).
2. Place the LVDS cable (A) on the rear of the LCD panel. Refer to Figure 3-34.
3. Install the LCD panel.
