3-40 Machine Maintenance Procedures
Camera Module Removal 0
Prerequisite:
LVDS Cable Removal
1. Find the camera module (D) on the LCD module. Refer to Figure 3-28.
2. Remove the camera module from the LCD cover as shown in Figure 3-36.

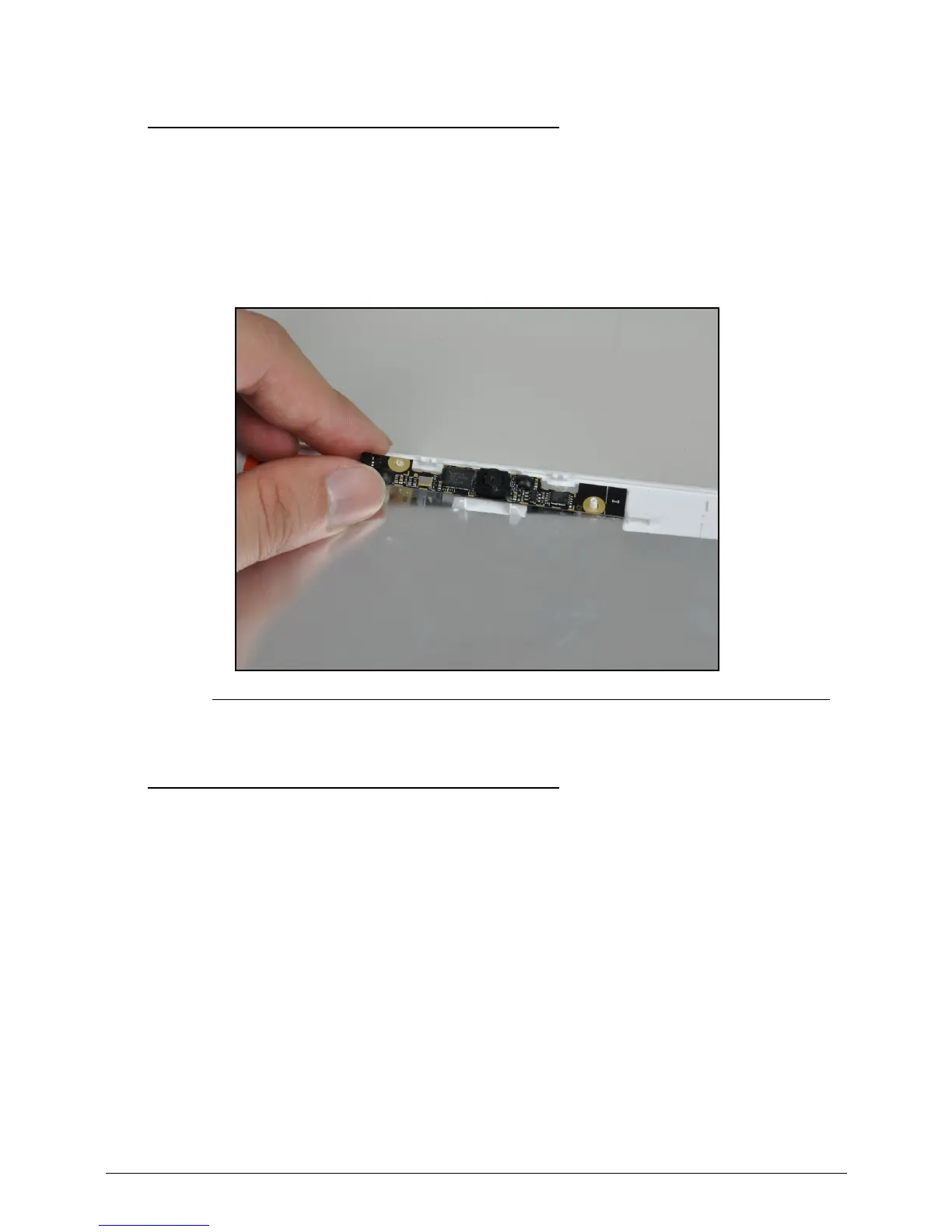

Figure 3-36. Camera Module Removal
Camera Module Installation 0
1. Place the camera module on the LCD module. Refer to Figure 3-36.
2. Install the LVDS cable.
