5-4 Jumper and Connector Locations

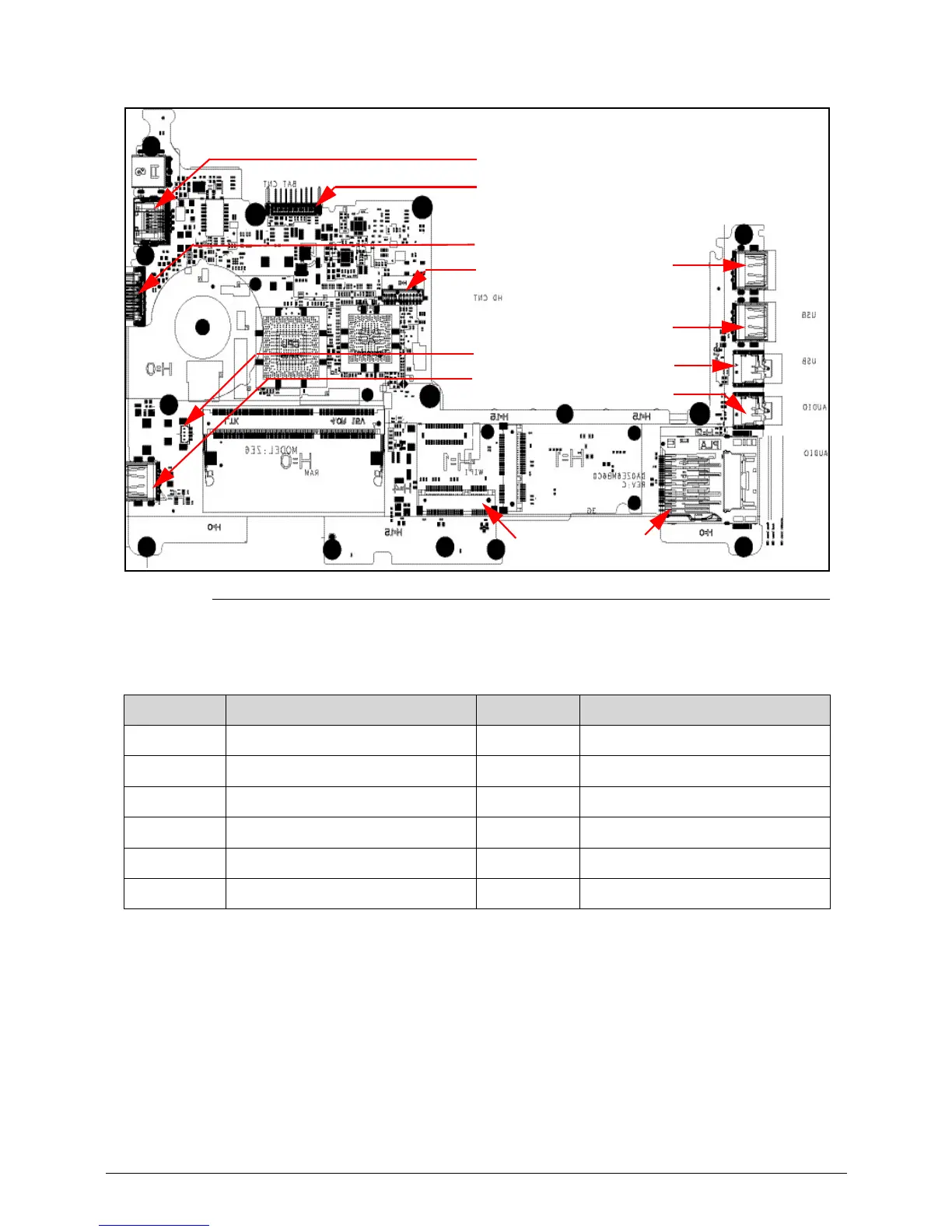

Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
Item Description Item Description
1 LAN Connector 7 Mini Card Connector
2 Battery Connector 8 Card Reader Connector
3 VGA Connector 10 Microphone Connector
4 HDD Connector 11 Headphone/SPDIF Connector
5 Fan Connector 12 USB Connector
6 USB Connector 13 USB Connector
1
2
3
4
5
6
7
8
9
10
11
12
