Machine Maintenance Procedures 3-9
Logic Door Removal 0

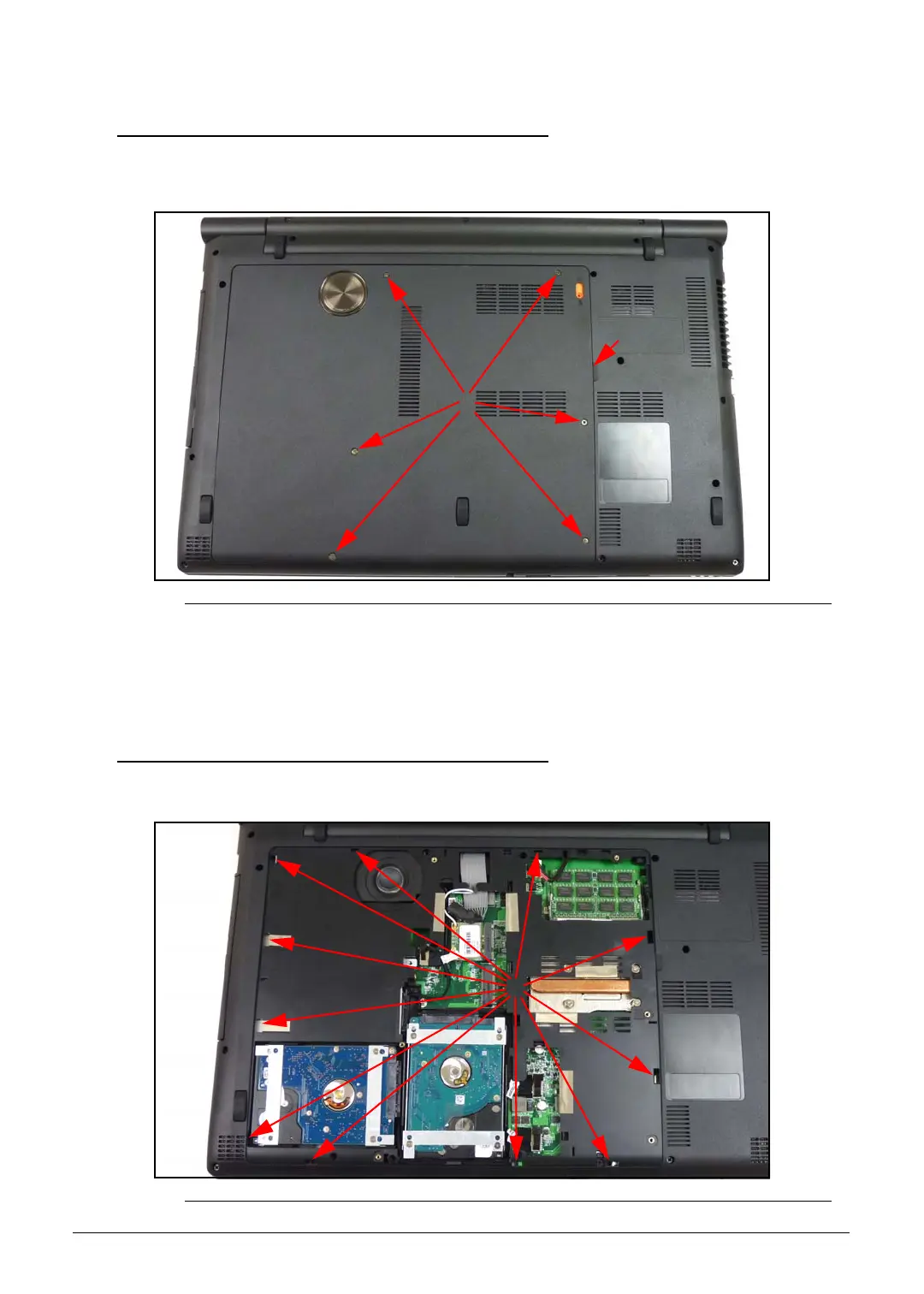

1. Remove screws (A) from lower cover. (Figure 3-5)
Figure 3-5. Logic Door
2. Lift logic door from slot (B) on lower cover.
3. Remove logic door.
Logic Door Installation 0
1. Align logic door flanges into slots (C) on lower cover. (Figure 3-6)
Figure 3-6. Logic Door Slots on Lower Cover
