3-24 Machine Maintenance Procedures
Keyboard Assembly Installation 0
1. Turn keyboard assembly as shown in (Figure 3-24).
2. Connect keyboard LED backlight cable (F) to mainboard connector.
3. Connect keyboard FPC (E) to mainboard connector.

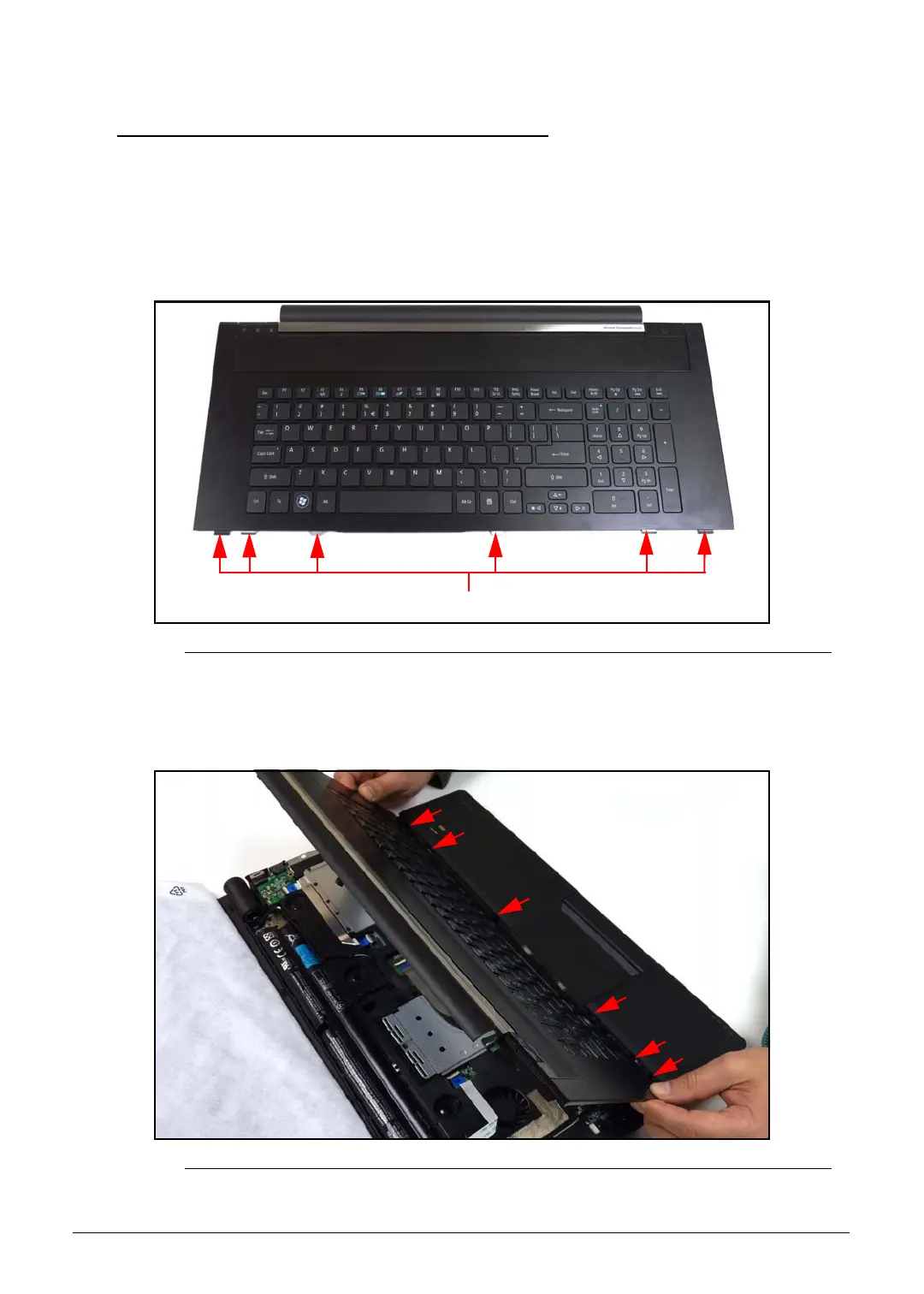

4. Locate keyboard assembly flanges (G). (Figure 3-25)
Figure 3-25. Keyboard Assembly Flanges
5. Insert keyboard assembly flanges into upper cover slots at an angle, as shown in
Figure 3-26.
Figure 3-26. Inserting Keyboard Assembly
To Next Page
