Acer Aspire 8951G - Exploded Diagrams; Main Assembly

6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0
Main Assembly 0

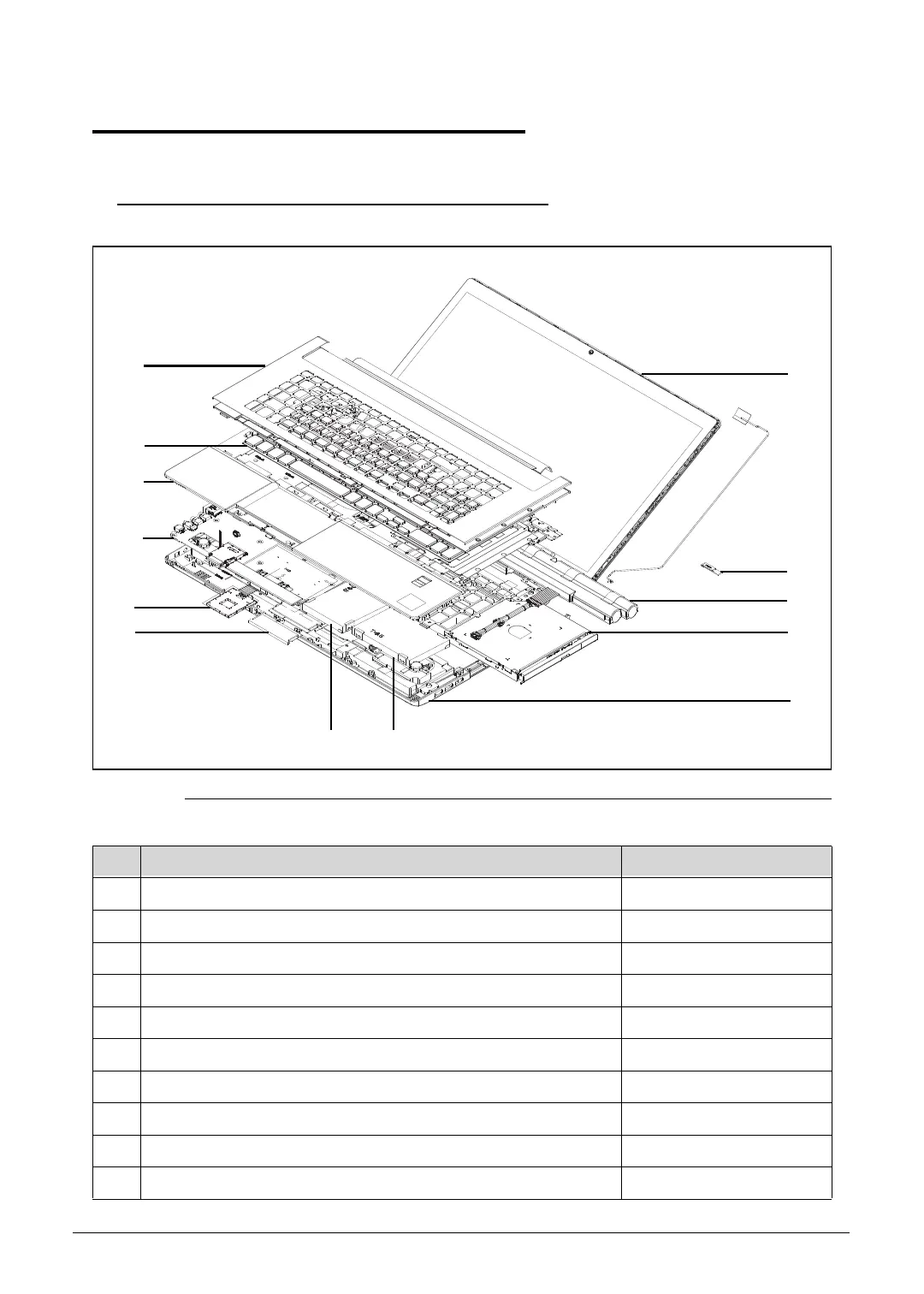

Figure 6-1. Main Assembly Exploded Diagram
No. Description P/N
1 LCD Module 6M.RJ207.003
2 Bluetooth Module BH.21100.010
3 Battery BT.00805.018
4 ODD Module 6M.RJ207.002
5 Lower Cover 60.RJ207.002
6 1st HDD Module KH.50001.017
7 2nd HDD Module KH.50001.017
8 DIMM Module KN.2GB03.021
9 CPU KC.26301.QMP
10 Mainboard MB.RJ206.002
1
2
3
4
5
6
7
13
12
11
10
9
8
