X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-3

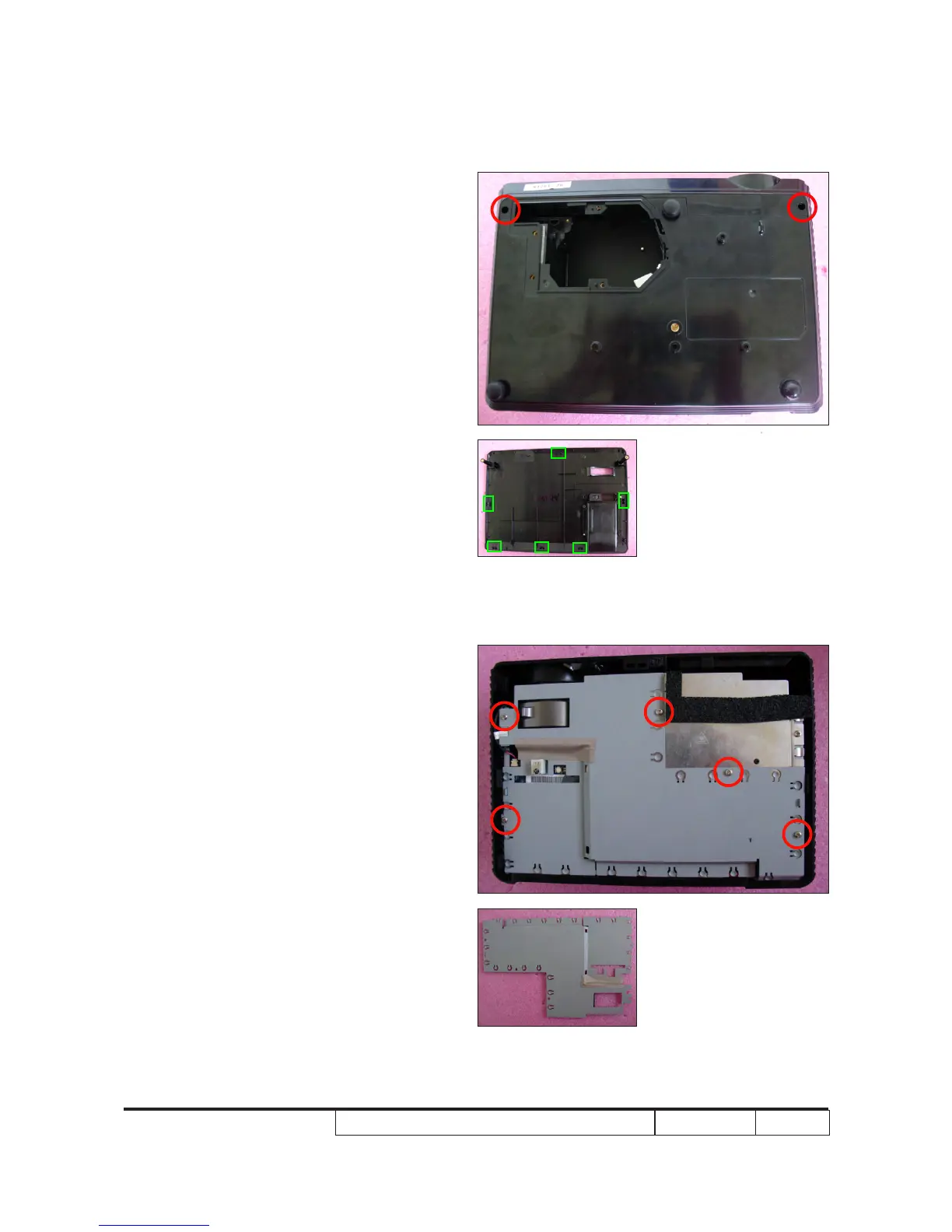

2-5 Disassemble Top
Shielding
1. Unscrew 5 screws (as red circle) to
disassemble the Top Shielding.
2-4 Disassemble Top Cover
Module
1. Unscrew 2 screws (as red circle) from the
Bottom Cover.
2. Remove the Top Cover Module.
Note: - When you remove the Top Cover, take
care the 6 tenons (as green square).
To Next Page
