2-16 Disassemble Lamp
Driver Module

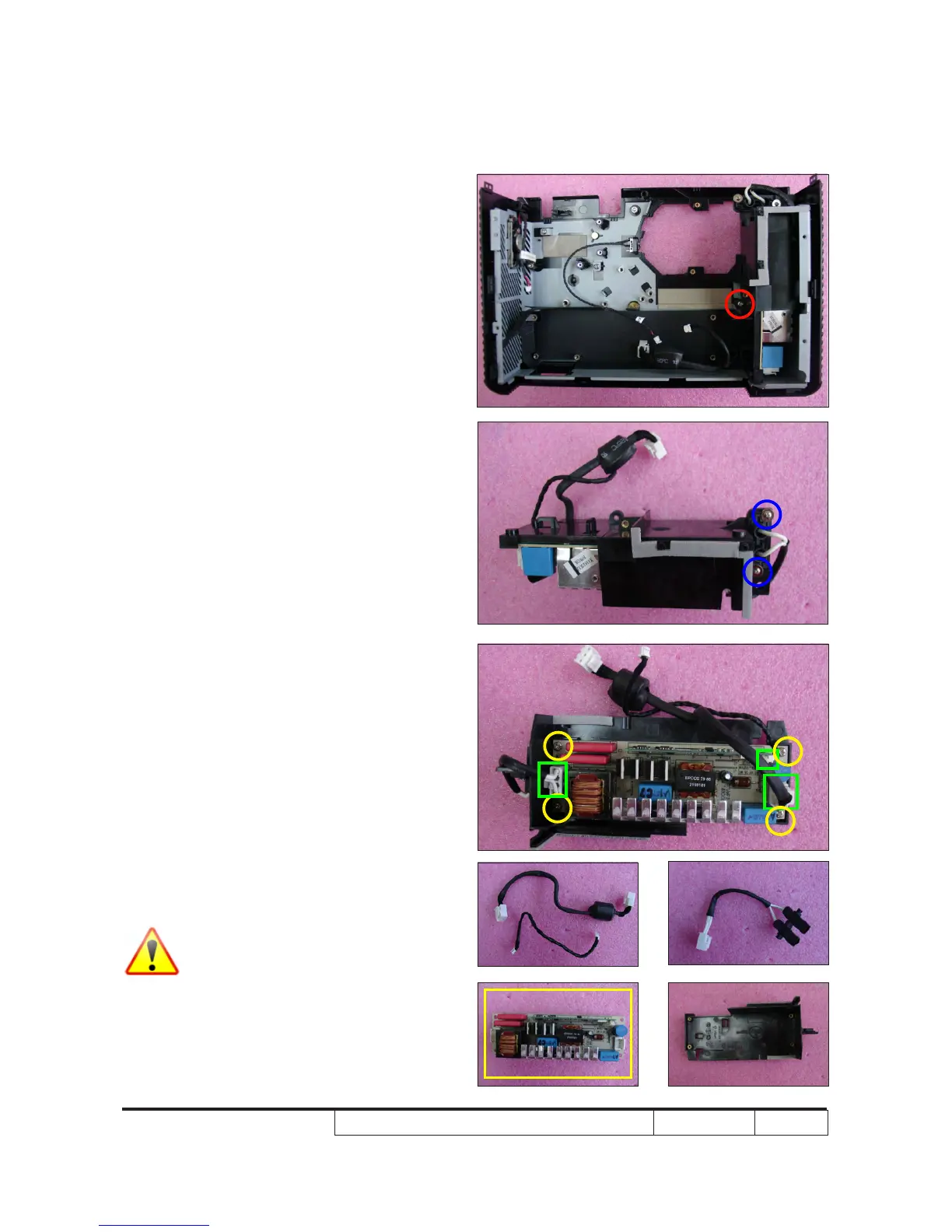

1. Unscrew 1 screw (as red circle) to
disassemble the Lamp Driver Module.
2. Unscrew 2 screws (as blue circle).
3. Unplug 3 connectors (as green square)
to disassemble the cables from Lamp
Driver Module.
4. Unscrew 4 screws (as yellow circle) to
disassemble the Lamp Driver Module
and Lamp Driver Holder.
Lamp Driver to Lamp Cable
Lamp Driver Holder
NOTE: Circuit boards > 10 cm² has been
highlighted with the yellow rectangle
as above image shows. Please
detach the Circuit boards and follow
local regulations for disposal.
