X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-10
4. Unscrew 4 screws (as blue circle) to
separate System Fan and Fan Shielding.
Note: - Take the Fan Module as the right
gesture.
Fan Shielding
System Fan

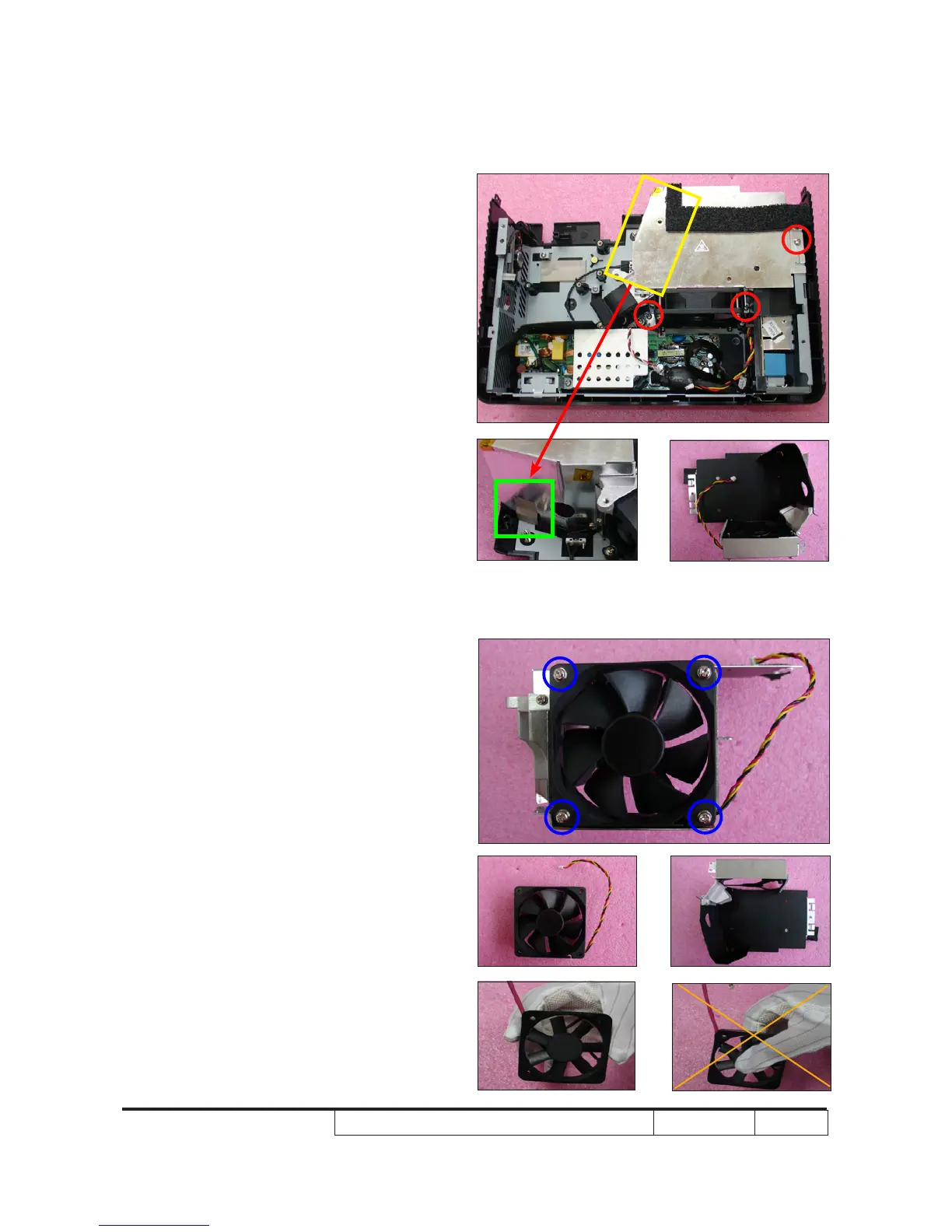

2-13 Disassemble System
Fan Module
1. Unscrew 3 screws (as red circle) to
disassemble the Fan Module.
2. Tear off the EMI tape (as green square).
3. Disassemble the System Fan Module.
the wrong gesture
the right gesture
