X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-7
NOTE: Circuit boards > 10 cm² has been highlighted with the yellow rectangle as
above image shows. Please detach the Circuit boards and follow local
regulations for disposal.

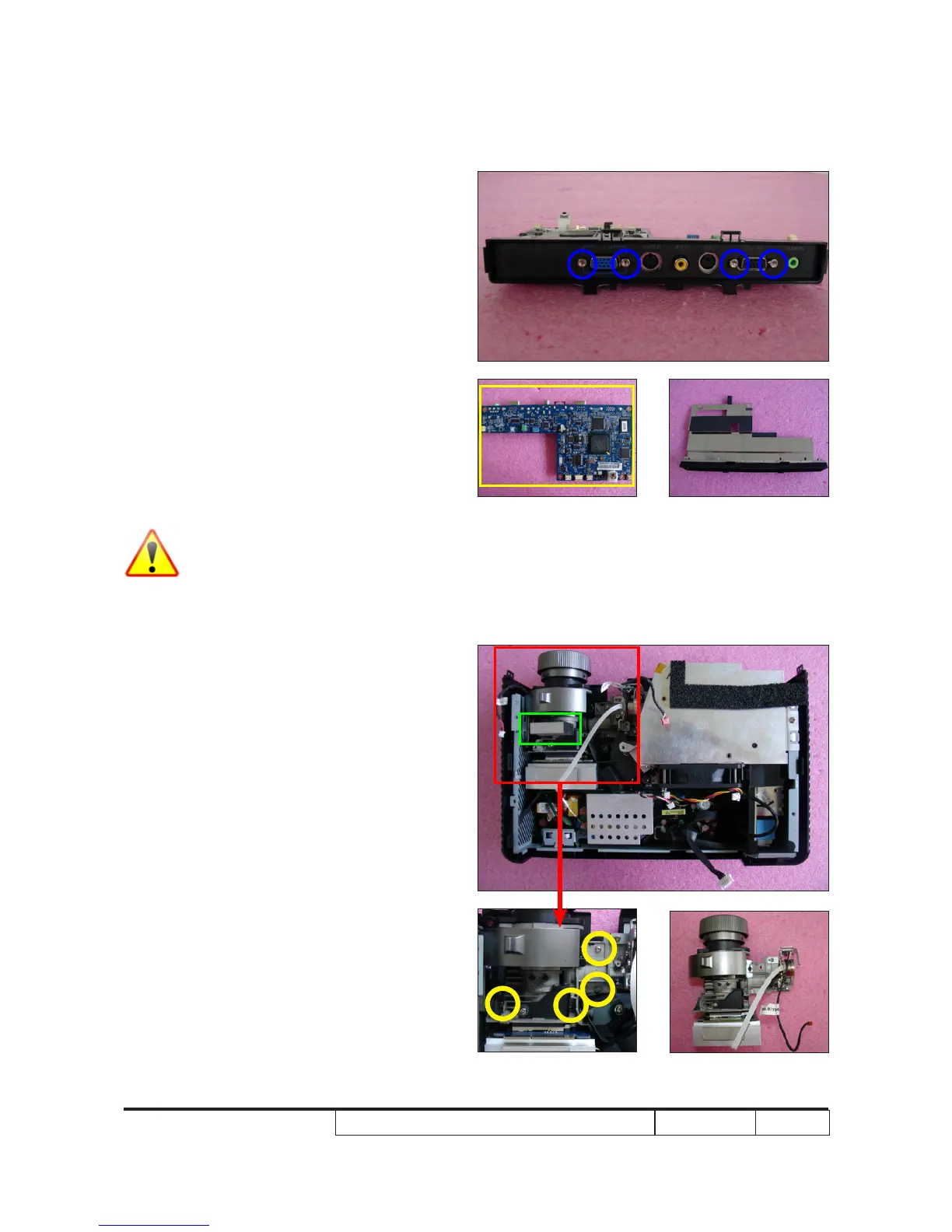

7. Unscrew 4 hex screws (as blue circle).
8. Separate the Main Board and IO Cover
Module.
2-8 Disassemble Engine
Module
1. Tear off EMI Gasket (as green square).
2. Unscrew 4 screws (as yellow circle) to
disassemble the Engine Module.
IO Cover
To Next Page
