2-33 Assemble Engine
Module

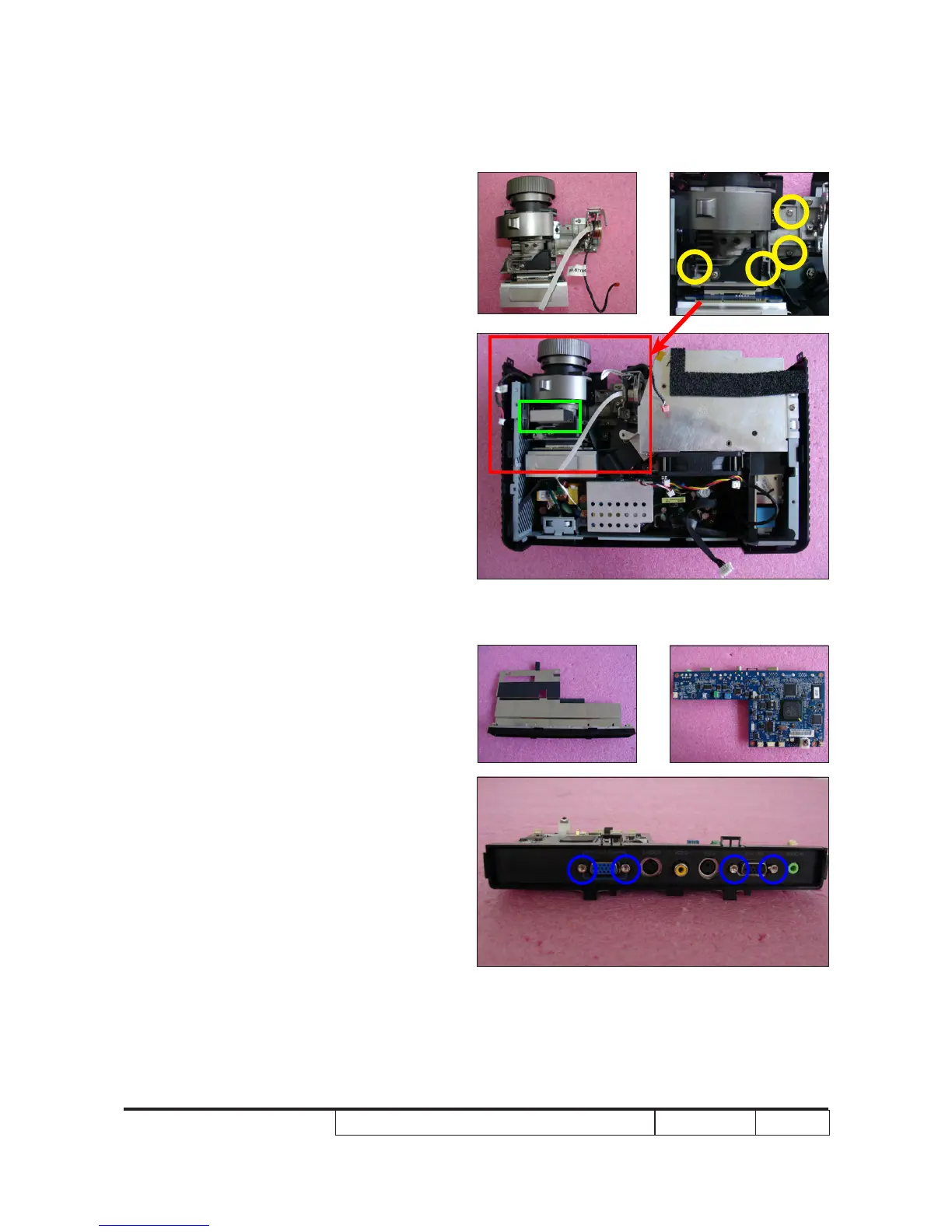

1. Screw 4 screws (as yellow circle) to
assemble the Engine Module.
2. Stick the EMI Gasket (as green square).
2-34 Assemble IO Cover and
Main Board Module
1. Assemble the IO Cover and Main Board
Module.
2. Screw 4 hex screws (as blue circle).
