X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-11

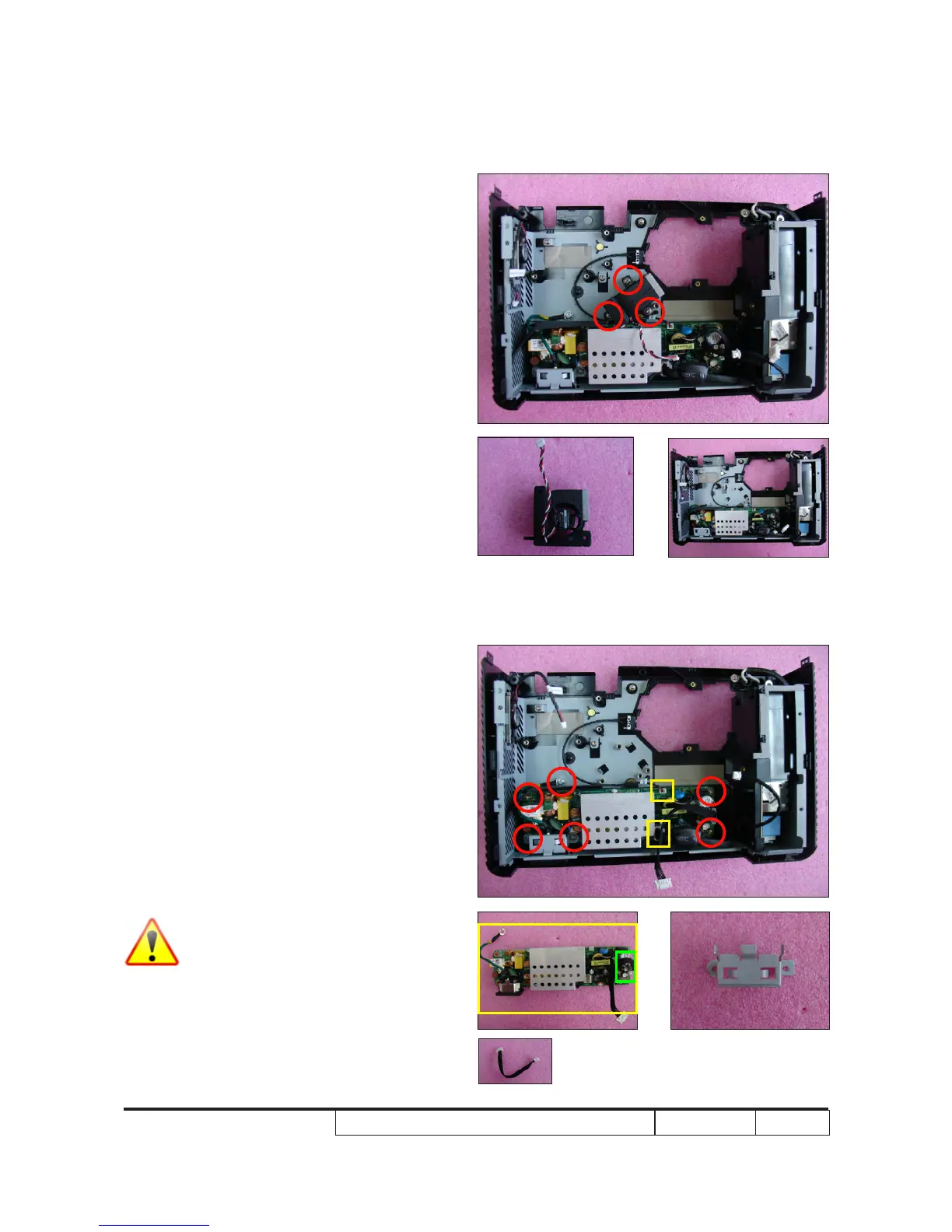

2-14 Disassemble Blower
1. Unscrew 3 screws (as red circle).
2. Disassemble the Blower.
2-15 Disassemble LVPS
Module
1. Unplug 2 connectors (as yellow square).
2. Unscrew 6 screws (as red circle).
3. Disassemble the LVPS Module and
the AC Inlet Bracket.
4. Unplug 1 connector (as green square).
AC Inlet Bracket
NOTE: Circuit boards > 10 cm² has been
highlighted with the yellow rectangle
as above image shows. Please
detach the Circuit boards and follow
local regulations for disposal.
