X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-5

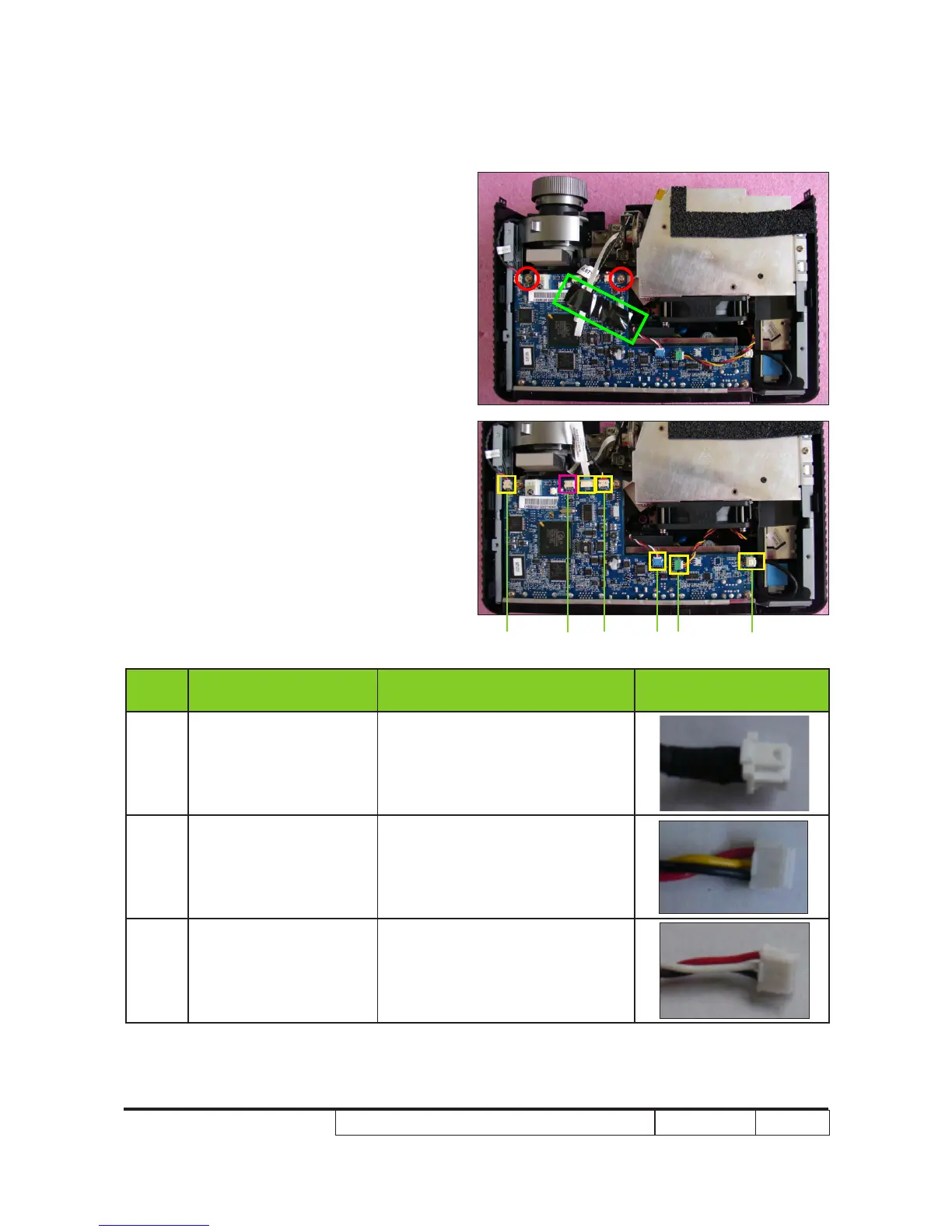

2-7 Disassemble Main Board
Module and IO Cover
Module
1. Tear off 3M tape (as green square).
2. Unplug 6 connectors (as yellow square).
3. Unscrew 2 screws (as red circle).
Please refer to the table as below for
details of each connector.
Item
Male Connector
on Main Board
The key feature Figure
A Lamp Driver Black wire tube (5 pin)
B System Fan
Compose of Red/Yellow/Black
Wire (3 pin)
C Blower
Compose of Red/Black/White
Wire (3 pin)
AF C
E
D B
To Next Page
