2-28 Assemble System
Fan Module

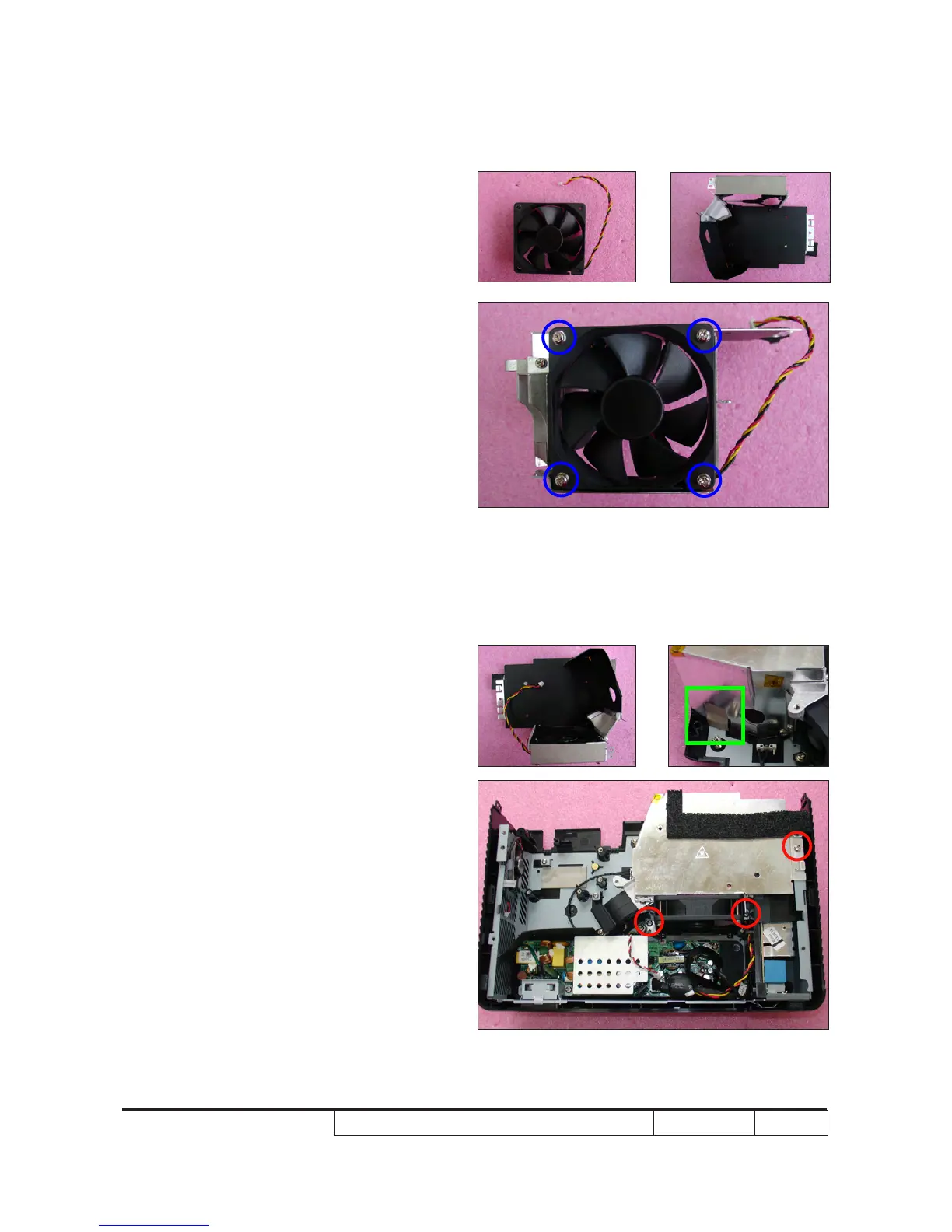

1. Screw 4 screws (as blue circle) to
assemble System Fan and Fan
Shielding.
2. Assemble the System Fan Module.
3. Stick the EMI tape (as green square).
4. Screw 3 screws (as red circle) to
assemble the Fan Module.
To Next Page
