Acer X110 - Assemble IR Sensor Board and Front Cover

X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-25
2-35 Assemble IR Sensor
Board and Front Cover

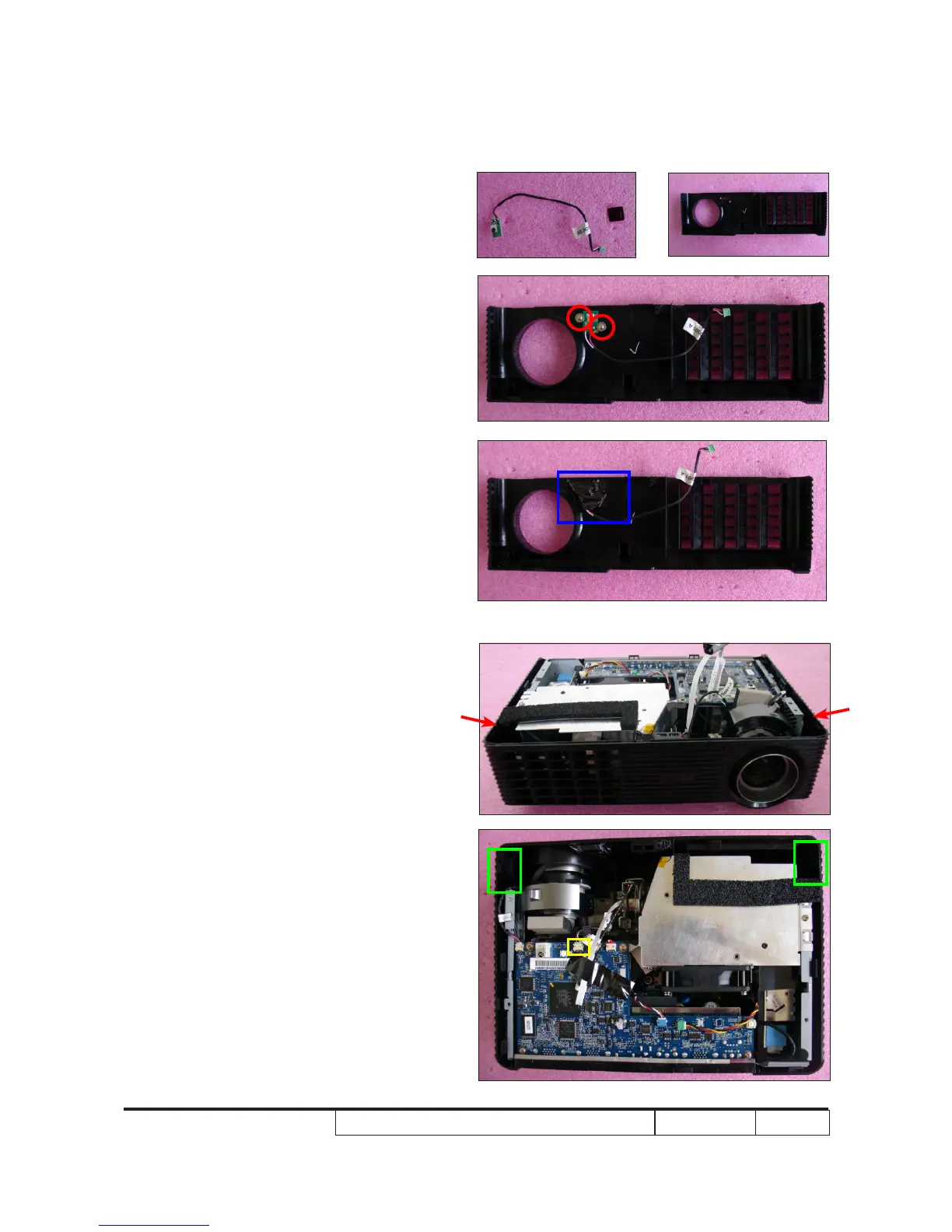

1. Assemble the IR Sensor Board and IR
Cap.
2. Screw 2 screws (as red circle).
3. Stick the mylar (as blue square).
4. Assemble the Front Cover.
5. Press two sides (as red arrows point) to
fasten 2 tenons (as green circle).
6. Plug 1 connector (as yellow square).
