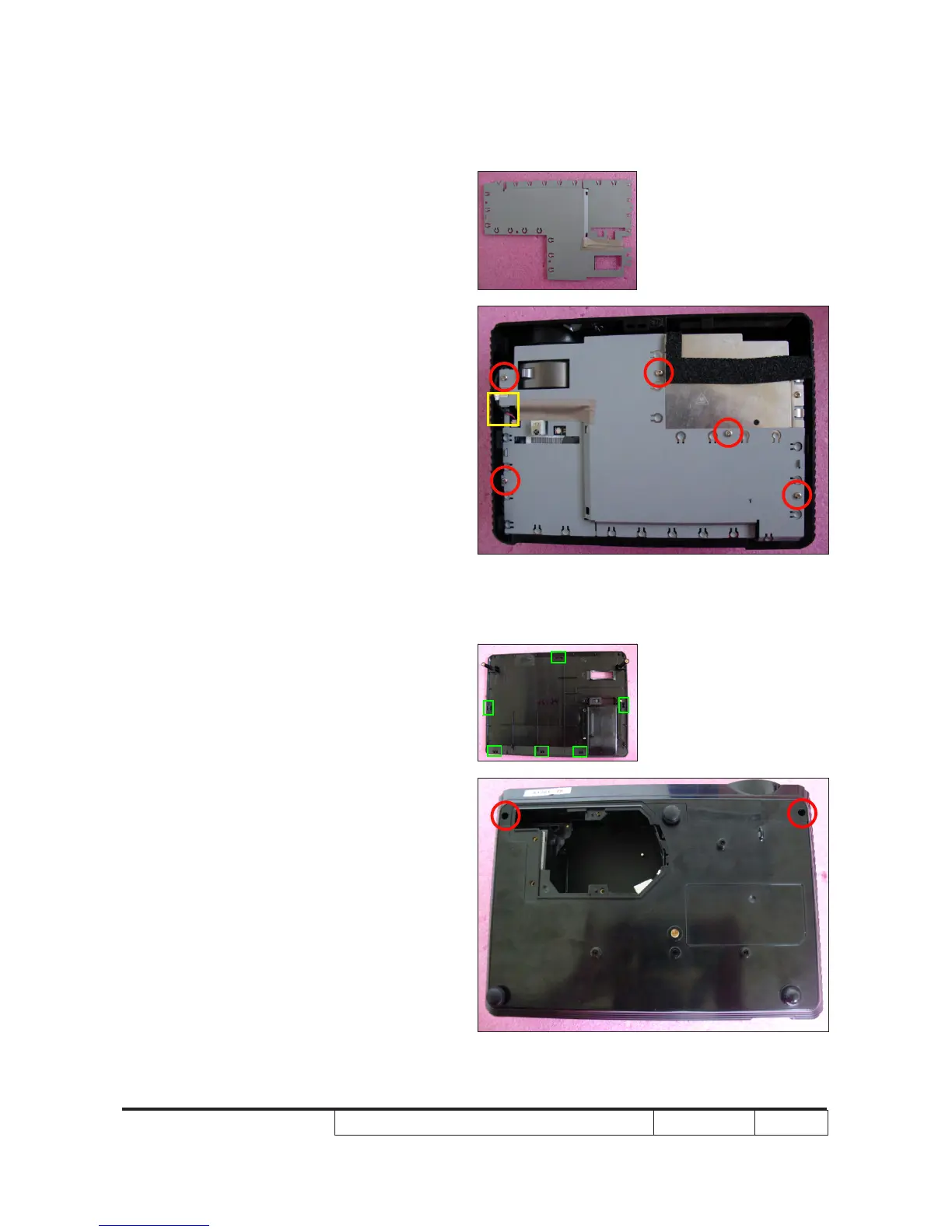

2-36 Assemble Top Shielding
1. Screw 5 screws (as red circle) to
assemble the Top Shielding.
Note: Avoid pressuring the Speaker cable (as
yellow square) when you assemble the
Top shielding. (for X1261/H5360)
2-37 Assemble Top Cover
Moudle
1. Assemble the Top Cover Module.
Note: Take care the 6 tenons (as green
square) when you assemble the Top
Cover.
2. Screw 2 screws (as red circle) on the
Bottom Cover.
