Acer X110 - Disassemble Color Wheel Module; Disassemble DMD Chip and DMD Board

X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-8
NOTE: Circuit boards > 10 cm² has been highlighted with the yellow
rectangle as above image shows. Please detach the Circuit
boards and follow local regulations for disposal.

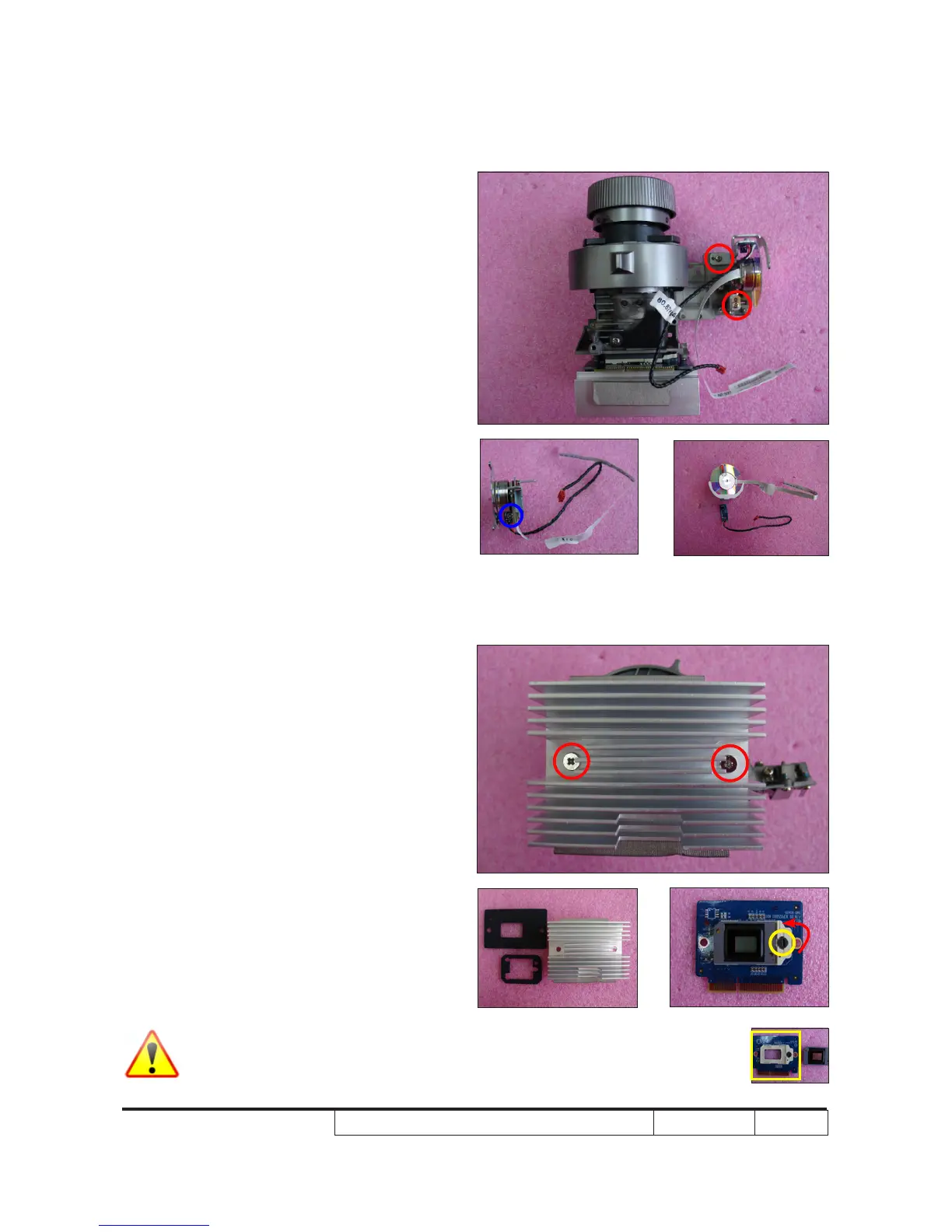

2-9 Disassemble Color
Wheel Module
1. Unscrew 2 screws (as red circle) to
disassemble the Color Wheel Module.
2. Unscrew 1 screw (as blue circle) to
disassemble the Photo Sensor Board
from the Color Wheel Module.
Note: - Avoid touching the glass parts of Color
Wheel.
2-10 Disassemble DMD Chip
and DMD Board
1. Unscrew 2 screws (as red circle) to
disassemble the Heat Sink and DMD
Module.
2. Rotate the screw (as yellow circle)
180° counterclockwise to disassemble
the DMD Board and DMD Chip.
Note: - Avoid touching the DMD Chip when you
disassemble it.
- Pay attention to the xed position when
assembling the DMD Chip.
