Acer X110 - Disassemble Interrupt Switch; Disassemble Bottom Shielding

X1161/X1261/X1161A/X1161N/X110/H5360 Condential 2-13

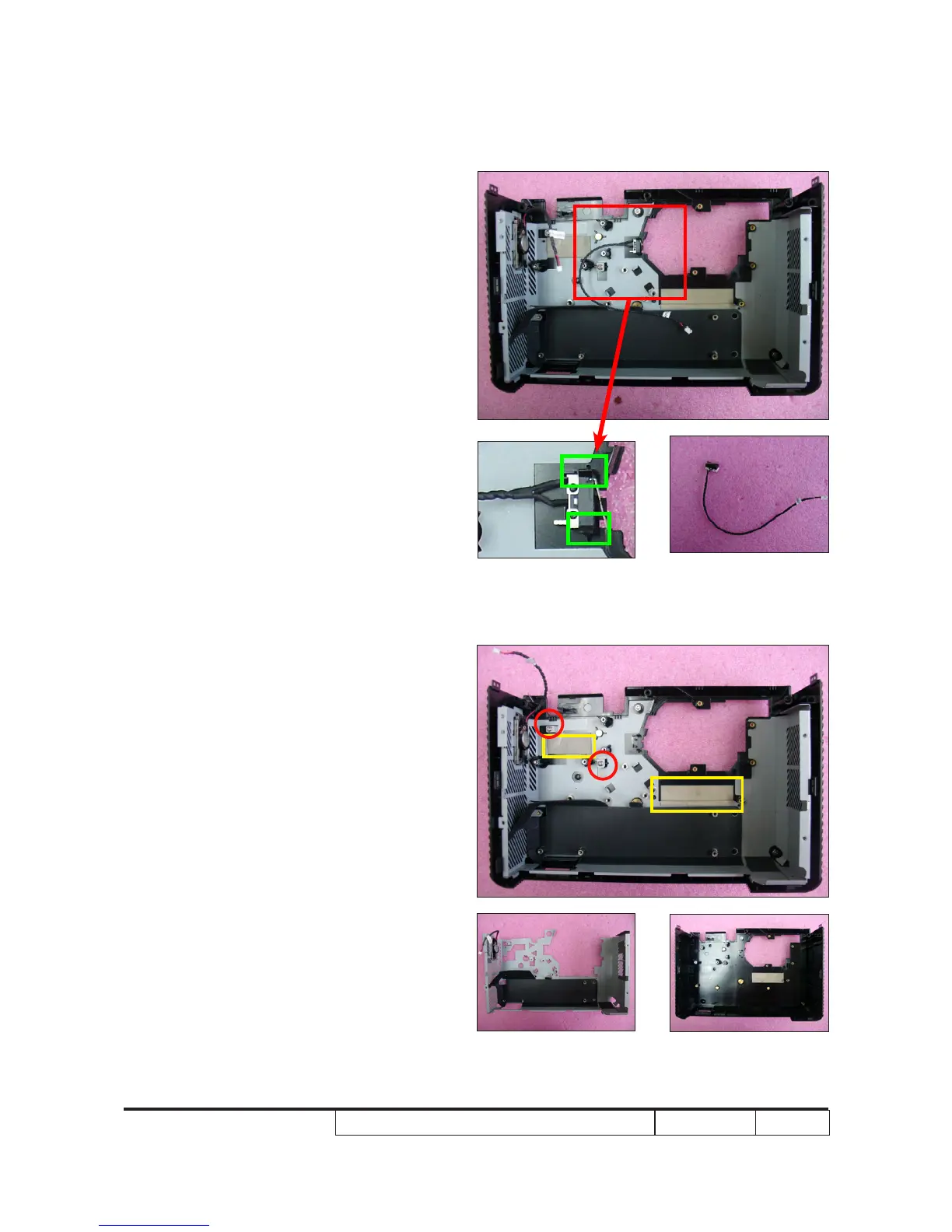

2-17 Disassemble Interrupt
Switch
1. Unfasten 2 tenons (as green square) to
disassemble the Interrupt Switch.
2-18 Disassemble Bottom
Shielding
1. Tear off the EMI tapes (as yellow square).
1. Unscrew 2 screws (as red cricle) to
disassemble the Bottom Shielding.
Interrupt Switch
