h) The IEC 320-C20 (IEC 60320-C20) Power inlet
Please, see Figure 2-3 | Amplifier rear panel - Connections, Pos. (h).
Due to the different standards in different countries, the mains plug for the amplifier power supply cable is
supplied and mounted by the dealer. He connects to the mains cord end a standard mains supply plug
which meets the Safety Class I unit standard in your country.
The power supply cable (a part of delivery) is in-factory assembled with power plug IEC 60320-C19 and with
free cable end at other side (3х2.5 mm², length 1.80 m (suitable cables are AWG 13 or SWG 15)).

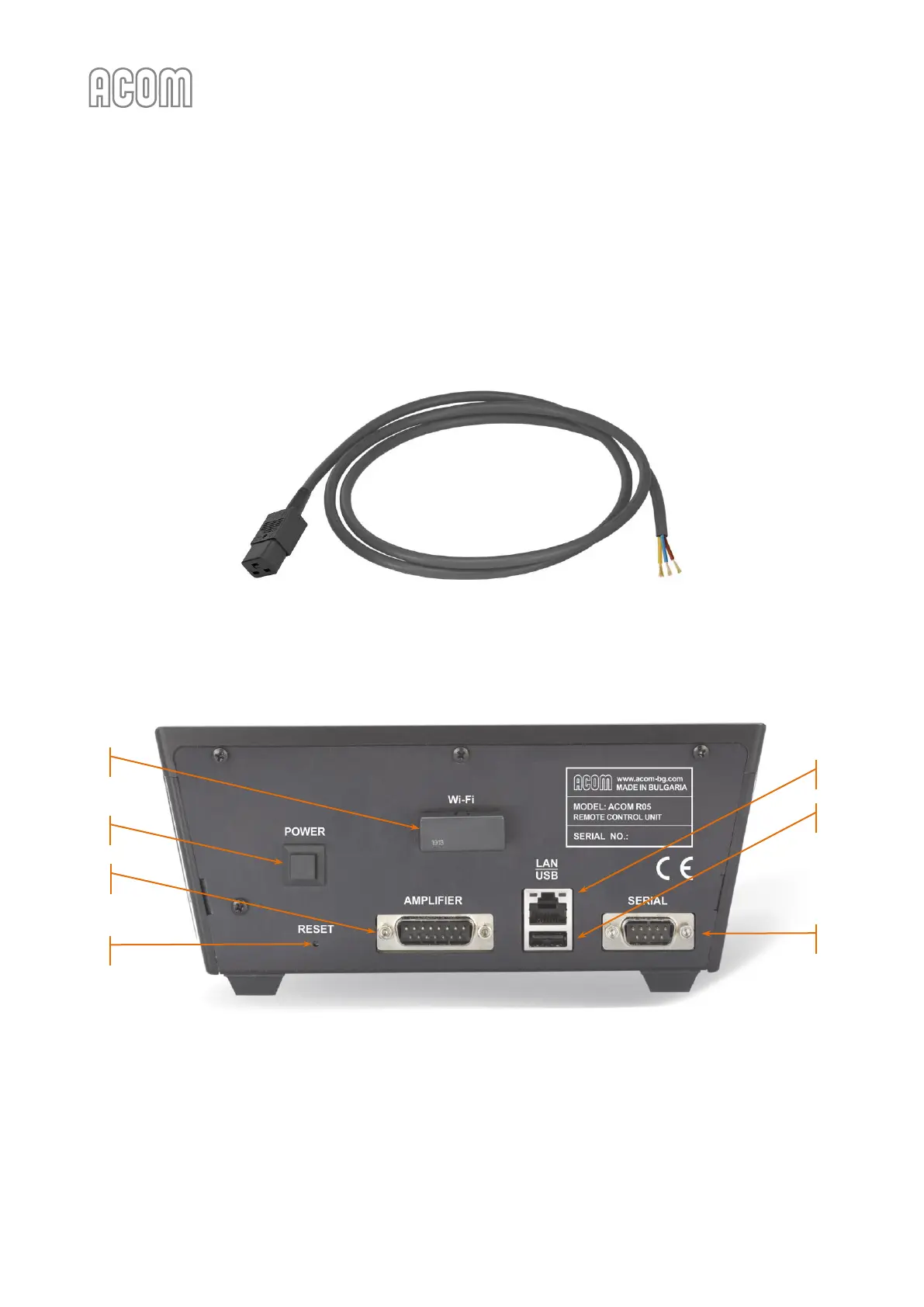

Figure 2-5 | Power supply cable
Figure 2-5 | Power supply cable
2.4.2. Connections on RCU rear panel
Figure 2-6 | RCU model R05 rear panel
Figure 2-6 | RCU model R05 rear panel
i) AMPLIFIER connector
Please, see Figure 2-6 | RCU model R05 rear panel, Pos. (i).
Connect the end of the ACOM 2020S to RCU connecting cable (part of delivery - see 1.4 Equipment Supplied)
as described in Section 2.4.1.f) RCU connector.
