CHAPTER 15

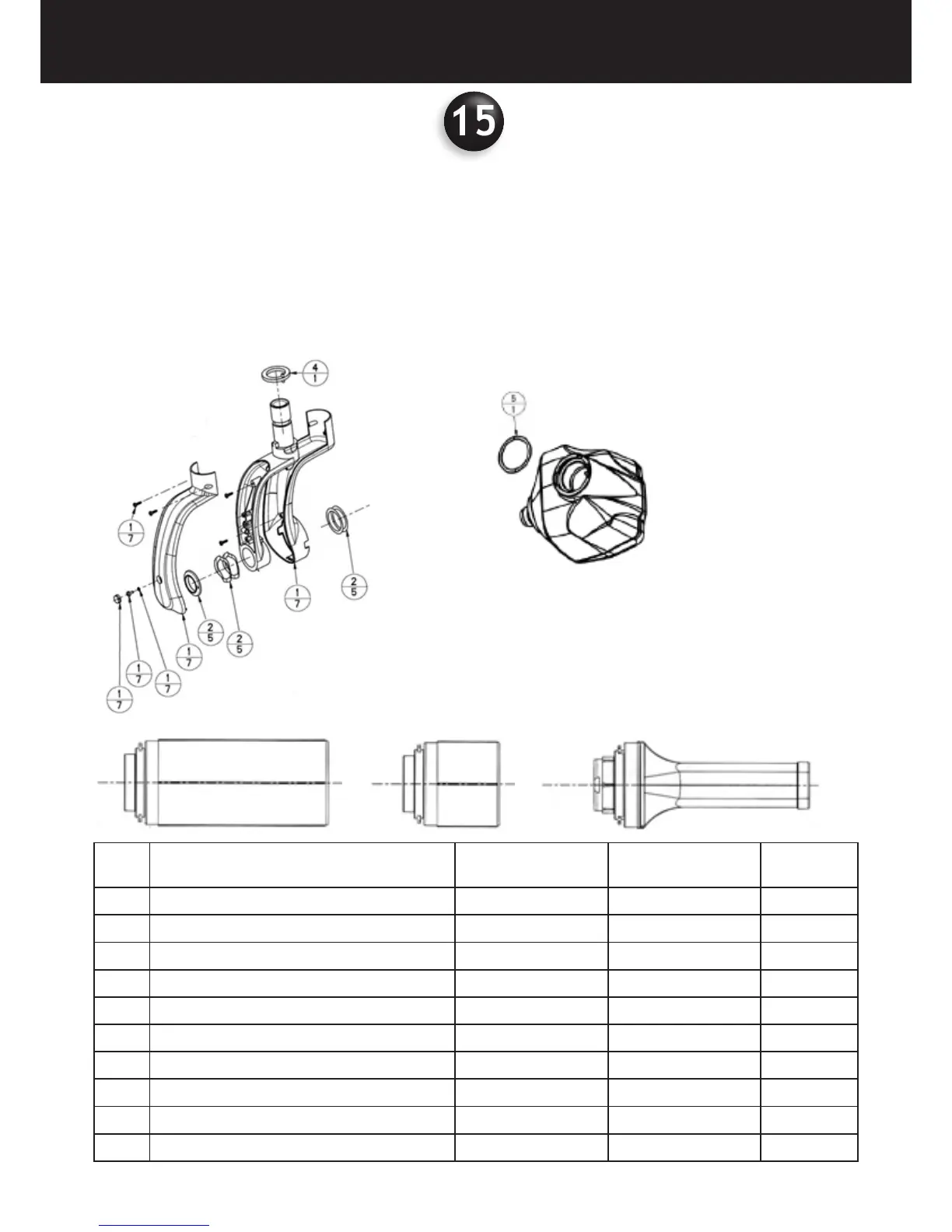

15.1. SPARE PARTS
The manufacturer undertakes to supply, upon request, drawings, circuit diagrams, component parts lists,
instructions or other information needed by qualied technical personnel to perform repairs on those parts of
the “Xmind®dc” radiographic system which may be repaired.
REF SPARE PARTS TUBEHEAD Xmind® CODE
(RAL 9010 color)
OLD COLOR Q.TY PCS
1 DC XG (1) FORK COVER 29700979.C 29700979 8
2 AC/DC XG (2) FORK RING SET 29700980 5
4 AC/DC XG (4) ROTATION STOPPER r.B 29701298 1
5 IX AC/DC XG CONE DISK COIL 21100162 1
A Ø60 DEG ROUND LONG CONE 31cm (12”) 29700397 1
A Ø60 SAT ROUND LONG CONE 31cm (12”) 29701197 1
B Ø60 DEG ROUND SHORT CONE 20cm (8”) 29700396 1
B Ø60 SAT ROUND SHORT CONE 20cm (8”) 29701195 1
C 44x35 DEG SQUARE CONE 31cm (12”) 29700615.C 29700615 1
C 44x35 SAT SQUARE CONE 31cm (12”) 29701199.C 29701199 1
To Next Page
