INSTALLATION & MAINTENANCE MANUAL • XMIND DC • W1100100 • V1 • (15) • 12/2015 • NXDCEN020B
ENGLISH
9. Couple the pantograph and tubehead connections and t the into their seats.

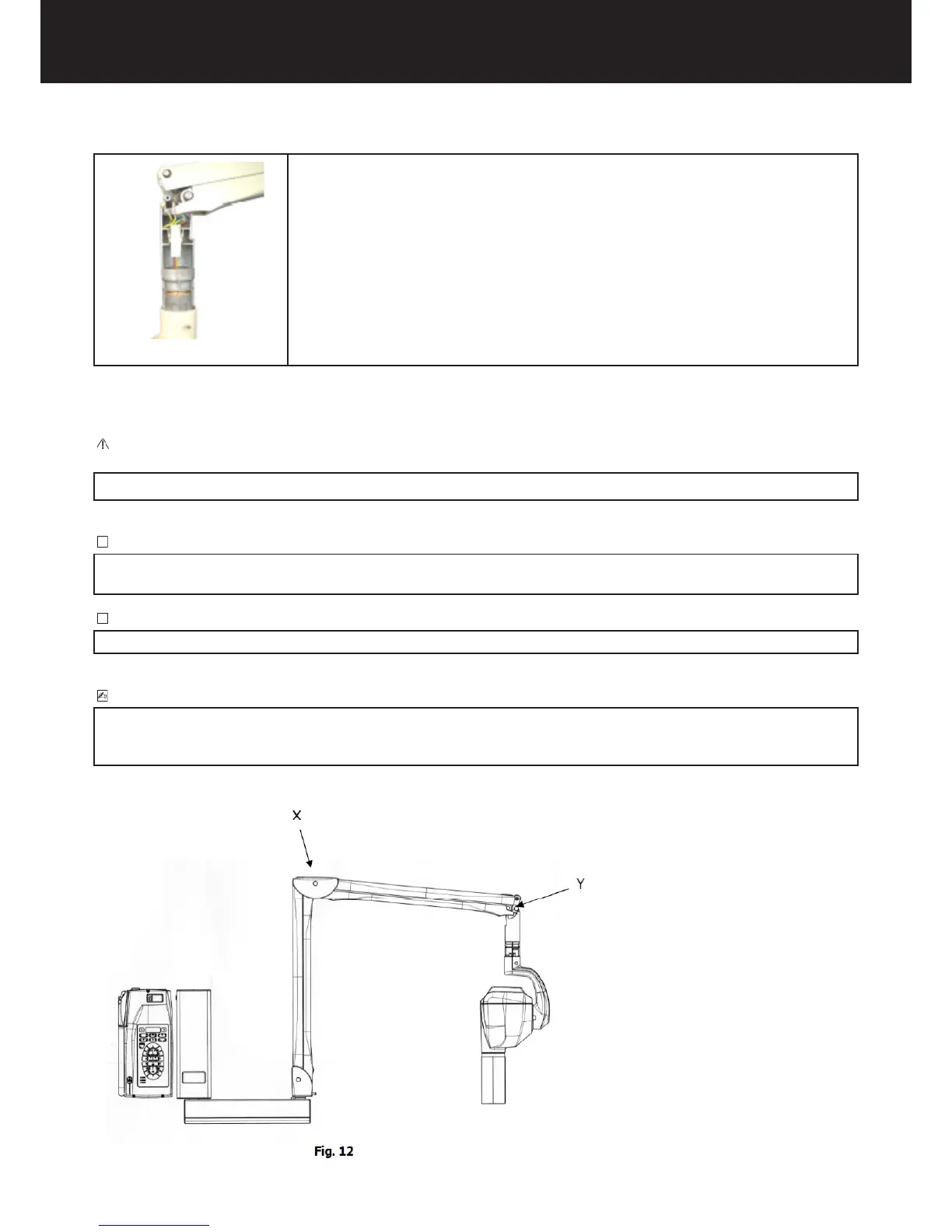

4.8. BALANCING THE PANTOGRAPH ARM
CAUTION
The pantograph arm must be adjusted when the tubehead is assembled only (Fig. 12).
!
WARNING
To prevent damages to the internal mechanism while performing adjustment and the balancing tests, the adjustment key must not be left in
place.
!
WARNING
The adjustment key provided must be carefully kept.
PLEASE NOTE
To reach the adjustment screw X the arm A must be put in vertical position.
To reach the adjustment screw Y the arm B must be put in horizontal position.
The adjustment key provided can be inserted only under the above conditions.
BRACCIO B – ARM B
BRACCIO A – ARM A
