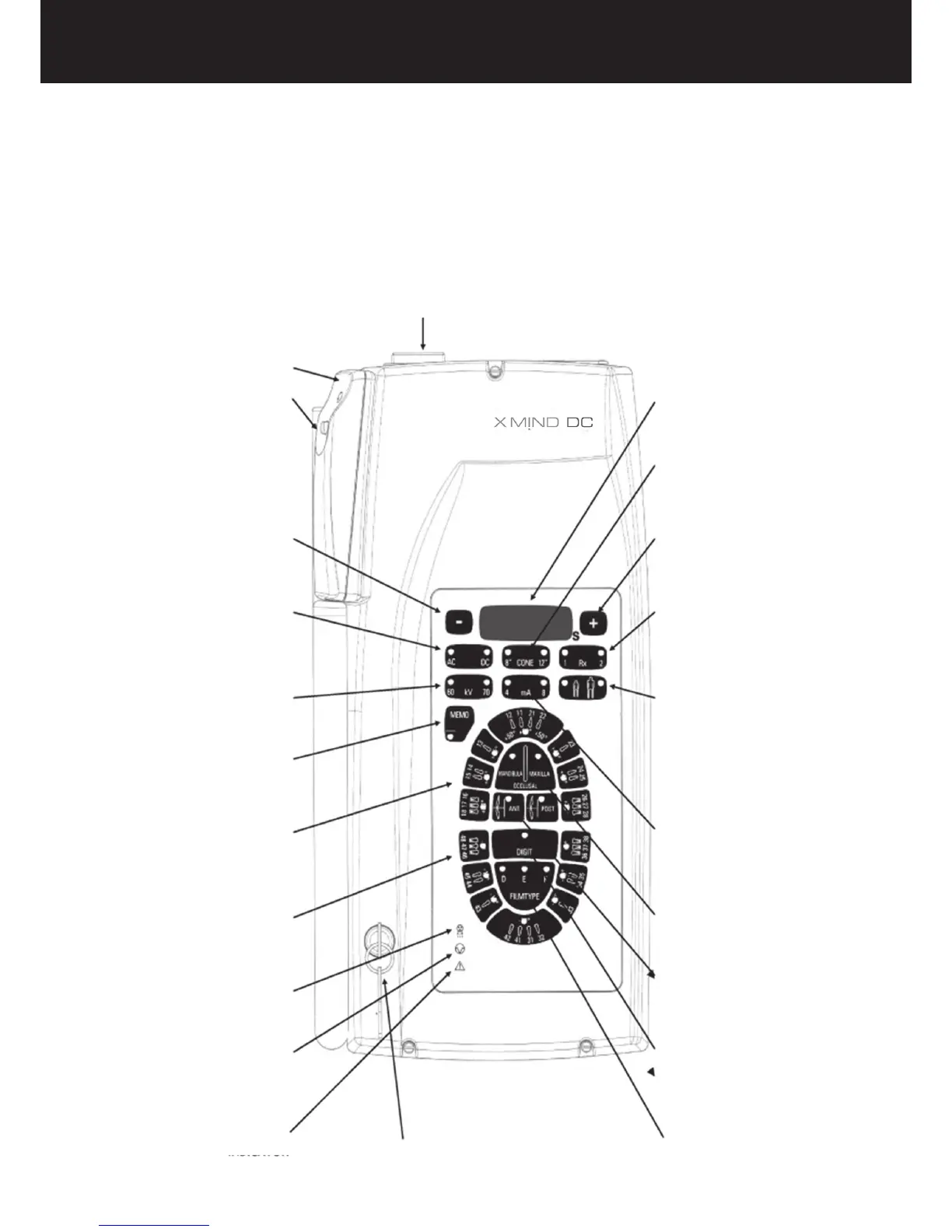

CONTROL PANEL
MAIN SWITCH
DISPLAY
RADIOGRAPHIC DISTANCE
INDICATOR
KEY TO INCREASE
EXPOSURE TIME
SELECTION OF TYPE OF
PATIENT’S PHYSIQUE
RADIOGRAPHIC CURRENT
INDICATOR
OCCLUSAL EXAM
BITE-WING EXAM
KEY SWITCH
MALFUNCTIONING
INDICATOR
PAUSE INDICATOR
X-RAY OUTPUT SIGNAL
MANDIBULARY LOWER
TEETH
MAXILLARY LOWER
TEETH
MEMORY
RADIOGRAPHIC VOLTAGE
INDICATOR
TUBEHEAD TYPE
INDICATOR
KEY TO DECREASE
EXPOSURE TIME
X-RAY KEY
CONTROL BUTTON
DIGITAL RADIOGRAPHIC
TECHNIQUE
CONVENTIONAL
RADIOGRAPHIC TECHNIQUE
TEBEHEAD SELECTION
