Acuity Controls GR2400 User Manual

Pg. 4 www.lightingcontrols.com
This indicates page
1 of 2:
If cursor starts here,
you have multiple
pages with switches
on each page. You
may need to navigate
to the correct page.
NOTE: Names can
be entered in the
naming menu (SETUP
MENU > SYSTEM
> SETUP MENU >
SYSTEM OPTIONS >
NAMING MENU). The
generated names are
usually displayed.
This indicates you
have selected switch
ID#63.
USER MENU
MANUAL OVERRIDE
REVIEW SCHEDULE
GROUP LOADS
PROGRAM SWITCH
SETUP MENU
SWITCHES PAGE 1-2
#33: Ofce 101
#52: Ofce 102
#53: Ofce 103
#59: Ofce 104
#61: Ofce 105
#61: Ofce 106
#61: Ofce 107
SWITCHES PAGE 2-2
#63: Reception
#64: Photocell North
#65: Photocell West
#66: Master Sw 3
#71: Hallway 100
#72: Hallway 200
#73: Hallway 220
SELECT BTN SW ID#63
SETUP PAGE 1-1
B1: BUTTON 1
B2: BUTTON 2
B3: BUTTON 3
B4: BUTTON 4
B5: BUTTON 5
B6: BUTTON 6

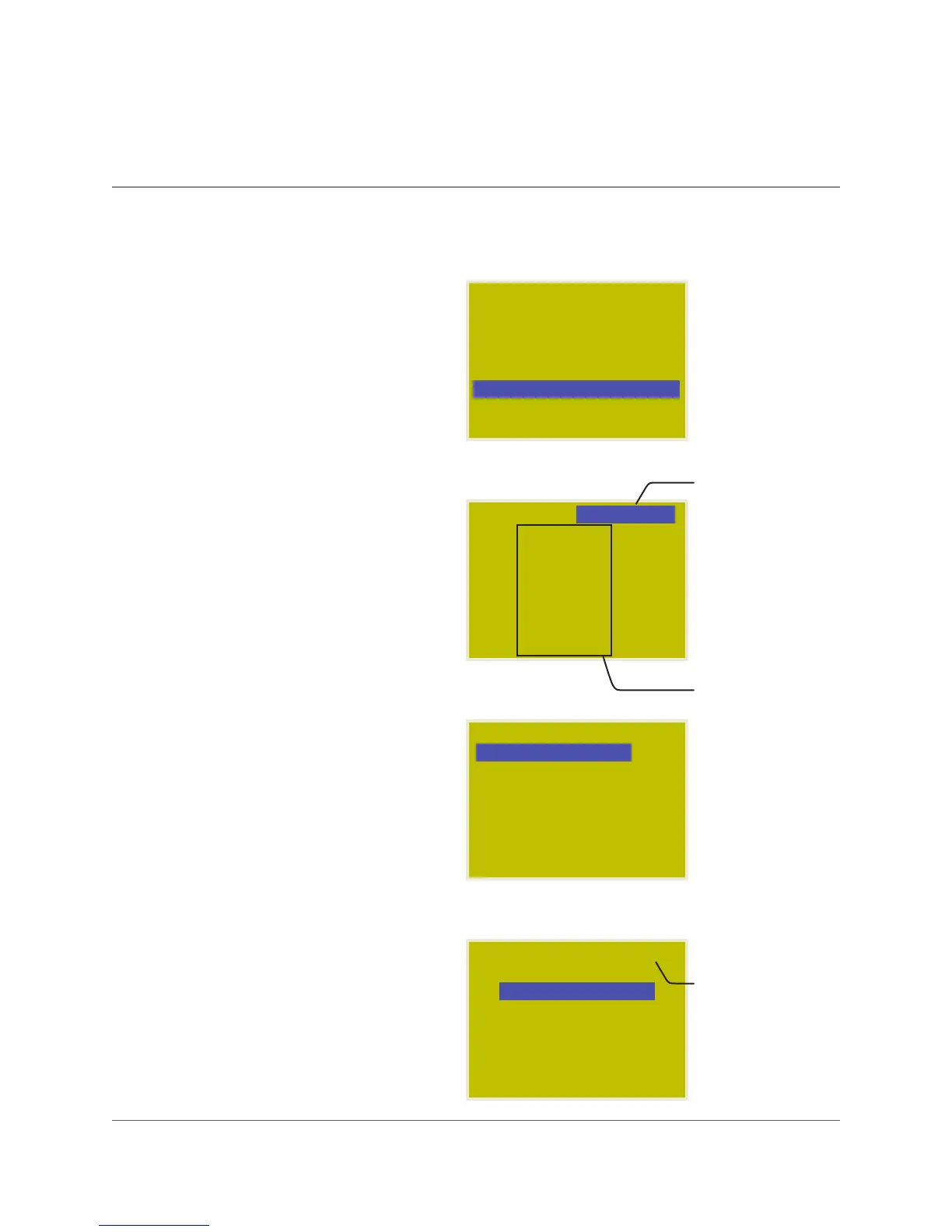

PROGRAMMING A DIGITAL SWITCH
To Start:
1. TAB to start.
2. TAB to Program Switch.
3. ENTER to select.
For Multiple Pages:
(more than 7 switches)
1. SCROLL to the correct page.
To Select Switch:
1. TAB to the correct switch.
2. ENTER to select.
To Select Button:
1. TAB to the correct button.
2. ENTER to select.
PROGRAM SWITCH
PAGE 1-2
#63: Reception
B1: BUTTON 1
74
