LC&D 800.345.4448 Pg. 5
Indicates Control
Type*
(Refer to page 10
for information on
control types)
Indicates switch
ID#63, Button 1
Scroll selection eld
Load Summary,
indicates what
LCPs and loads
have already been
selected
Load Summary for
Mixed Mode shows
which loads will
be switched On
and which will be
switched O
To delete LCP1:12:
• SCROLL to LCP 1
• TAB to Load
• SCROLL to Load 12
• ENTER until deleted

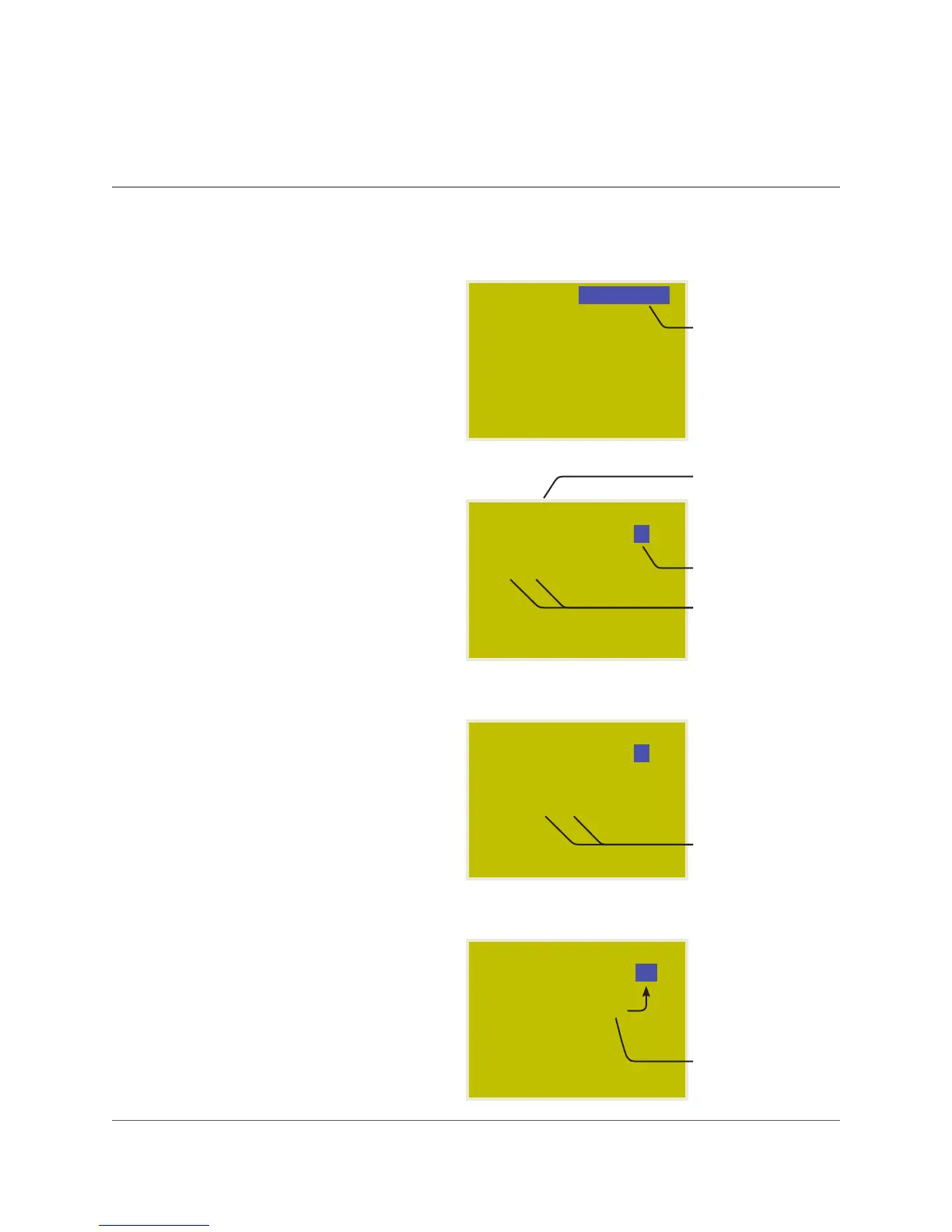

SWI ID63-1 MAINTAIN
EDIT: LCP-1 LOAD-1
SWI ID63-1 ON MODE
EDIT: LCP-1 LOAD-1
LCP1: 1
SWI ID63-1 ON MODE
EDIT: LCP-2 LOAD-3
ON LCP1: 1-3
OFF LCP2: 1-3
SWI ID63-1 MIXED MODE
EDIT: LCP-1 LOAD-12
ON LCP1: 2-5,12
OFF LCP2: 1,4
ADDING OR DELETING LOADS
Adding or deleting loads from a switch,
photocell, time schedule or group is always
done in the same way. Once you have
navigated to the correct Button, Trigger or
Group and before you add or delete loads, it is
important to determine the Control Type.*
1. SCROLL to select Control Type*.
2. TAB down to LCP 1.
For all Control Types (except Mixed Mode)*:
1. SCROLL to select LCP (1, 2, 3 etc.).
2. TAB to Load 1.
3. SCROLL to load you want to add or delete.
4. ENTER to select load—it will appear in the
Load Summary.
5. ENTER again to delete load.
6. Repeat to add or delete more loads.
7. EXIT up to Main Menu.
For Mixed Mode:
1. SCROLL to select LCP (1, 2, 3 etc.).
2. TAB to Load 1.
3. SCROLL to load you want to add or delete.
4. ENTER once to select Load On.
5. ENTER twice to select Load O.
6. ENTER three times to delete load.
7. Repeat to add or delete more loads.
8. EXIT up to Main Menu.
To Delete a Load (from the Load Summary):
1. SCROLL to the load.
2. ENTER until the load is deleted (no longer in
the Load Summary).
* For more information about control types, please
refer to Control Types on page 10.
MAINTAIN
1
3
12
To Next Page
