2. INSTALL the cylinder into housing.
3. SECURE and FASTEN with supplied locking ring using locking ring

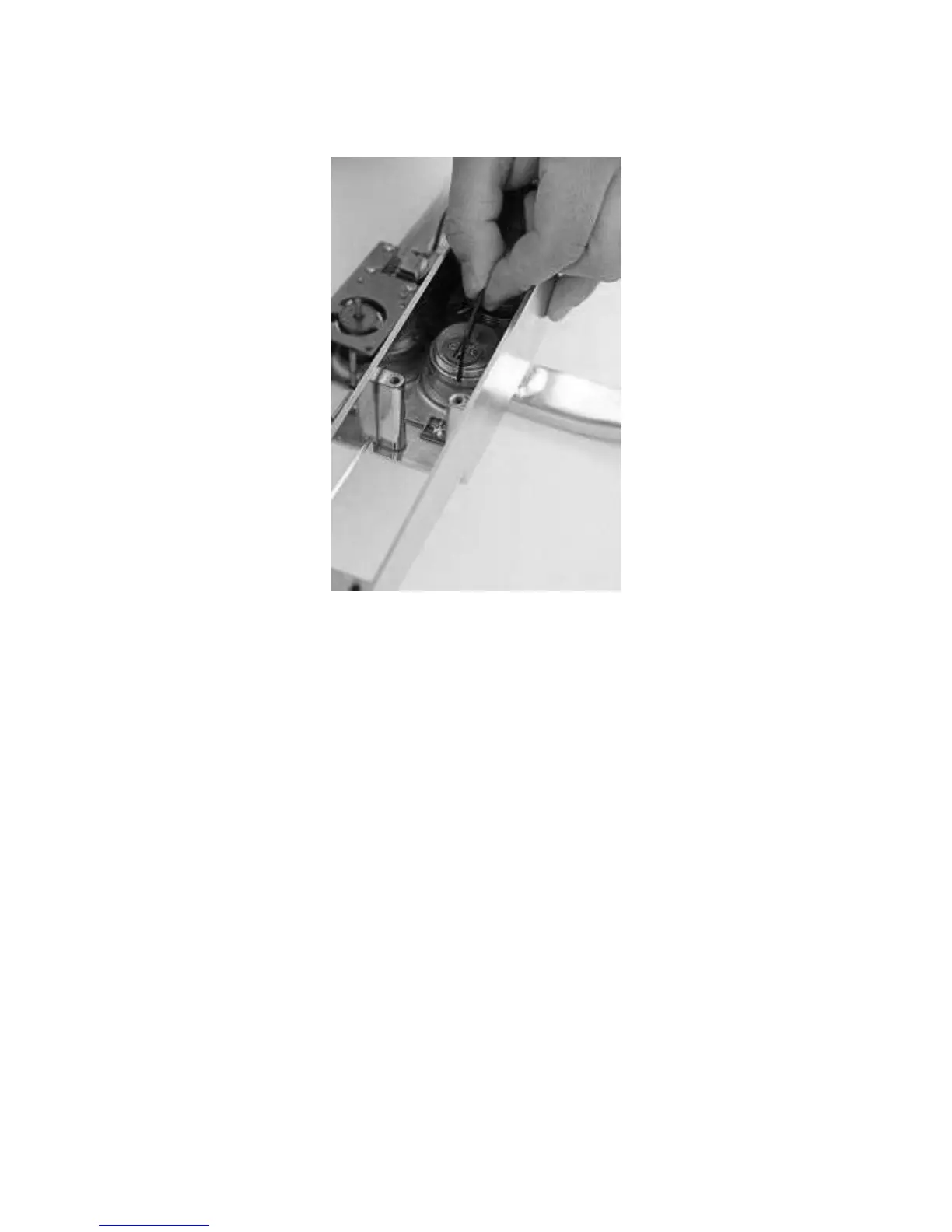

spanner tool (see Figure 16).
Figure 16
CAUTION
There are wires connecting the housing and back plate assembly.
These must be handled with care to not cause damage. Over-
tightening must be avoided. Additionally, a dummy cylinder cannot
be used.
4. Gently PLACE back plate back on housing and SECURE with
eight (8) #10-32 x 5/8” screws.
NOTE: Step 5 is an optional step to install a RSK-3090 Remote
Switch Kt.
5. For applications that require a remote activation switch, PLUG the
RSK-3090 into the board (see Figure 17).
