3. SECURE with two (2) #10-32 x 5/8” screws (see Figure 20).

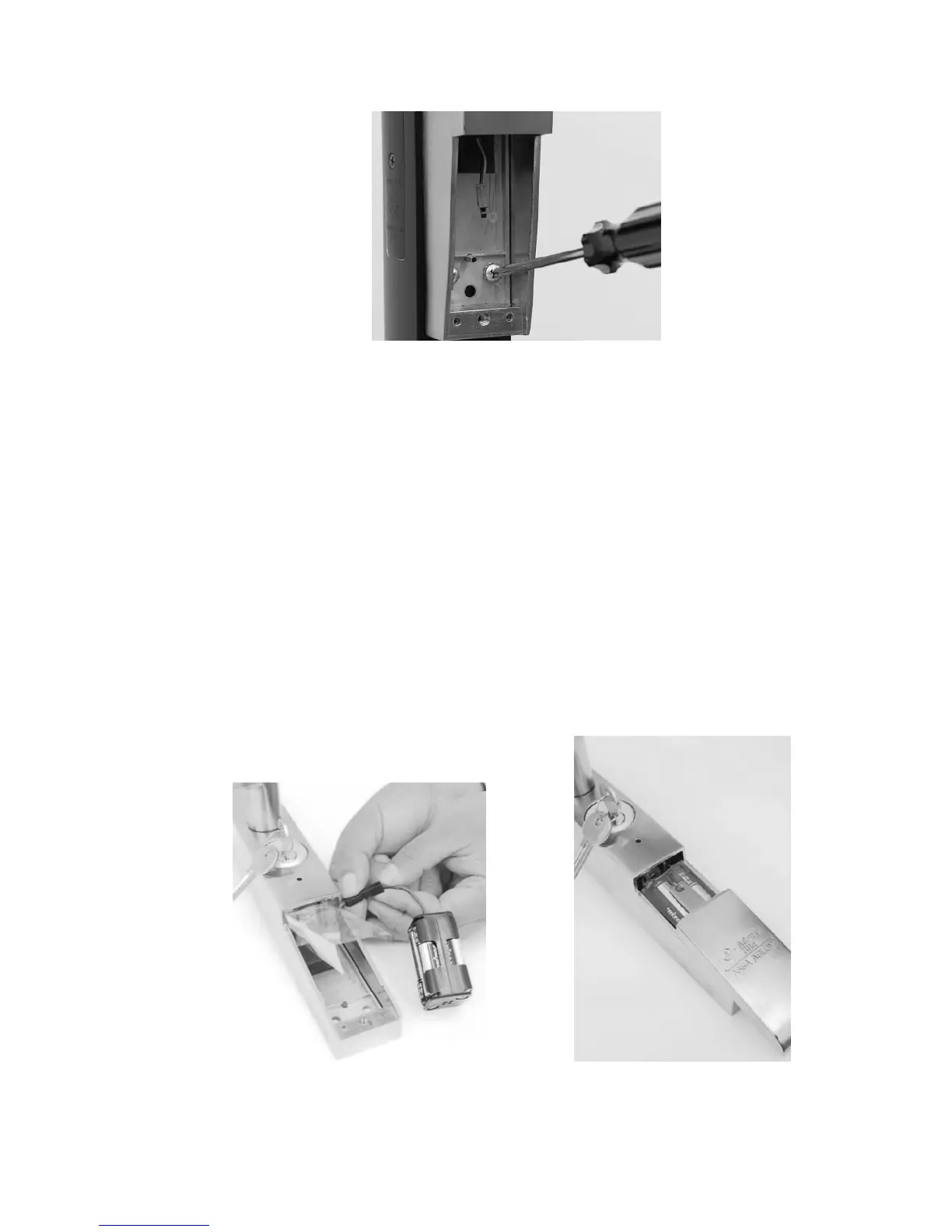

Figure 20
Installing the eForce 150 Batteries
NOTE: Lithium batteries are suggested in climates reaching 20°F and
below.
1. Properly INSERT four (4) Size AA Alkaline batteries into battery
holder ensuring proper polarity.
2. PLUG the battery pack into the eForce 150 connector (see
Figure 21).
3. INSERT the battery case into the eForce 150 (see Figure 22).
NOTE: A battery moisture shield is pre-installed at the factory to
protect the batteries from the elements.
4. SLIDE battery cover over the inserted battery case.
5. INSERT the included 5/64” Allen key and TURN clockwise two full
turns to secure the battery cover (see Figure 23).
