ADAMS RITE 3090 - Mounting the eForce 150

14 80-0180-307, Rev A

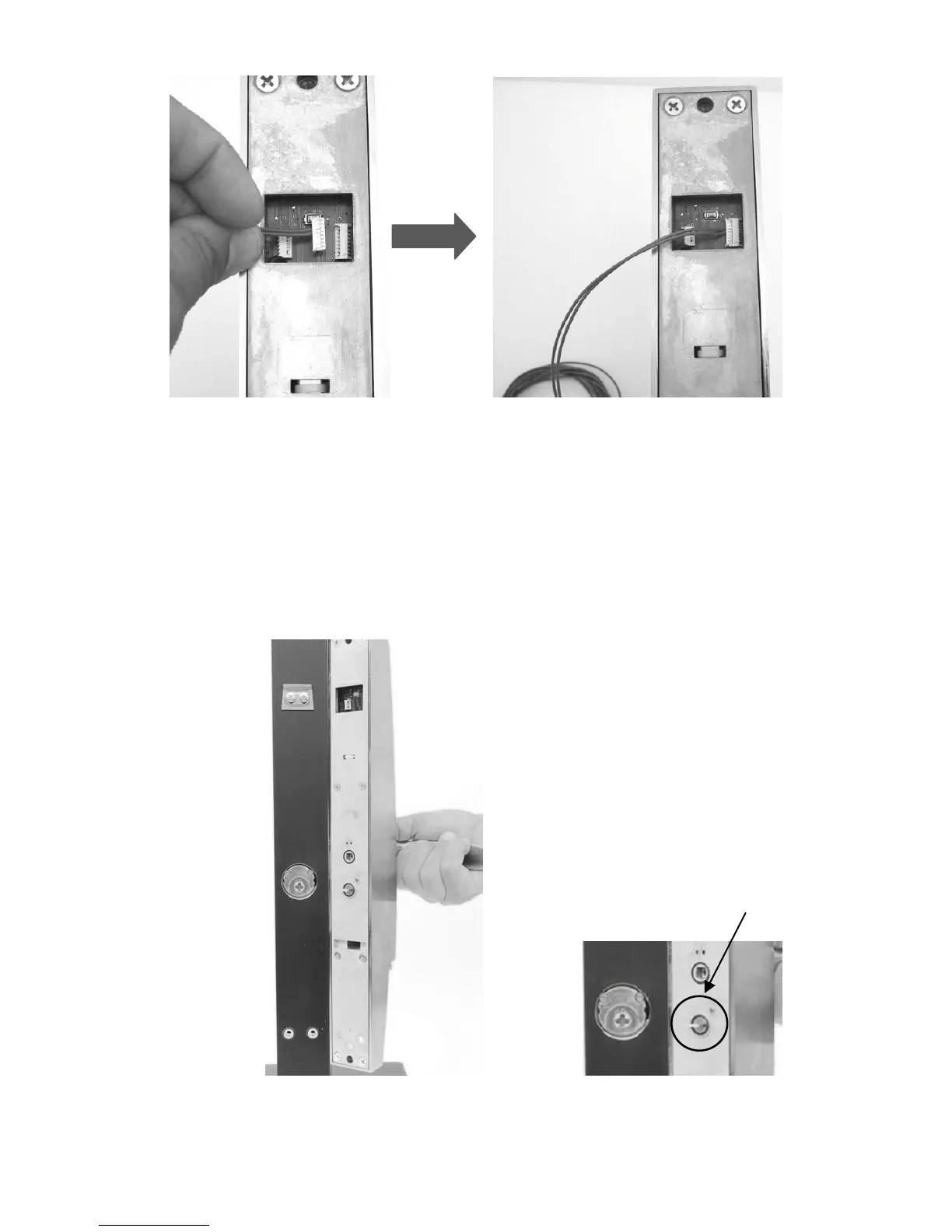

Figure 17
Mounting the eForce 150
1. INSERT the properly dimensioned spindle into the output hub.
NOTE: The eForce 150 must sit flush on the door surface.
2. MOUNT the eForce 150 onto mounting bracket and GUIDE the
spindle into the cam plug (see Figures 18 and 19 [MS 1850
configuration shown]).
Figure 18 Figure 19
Spindle
