Supplied Parts

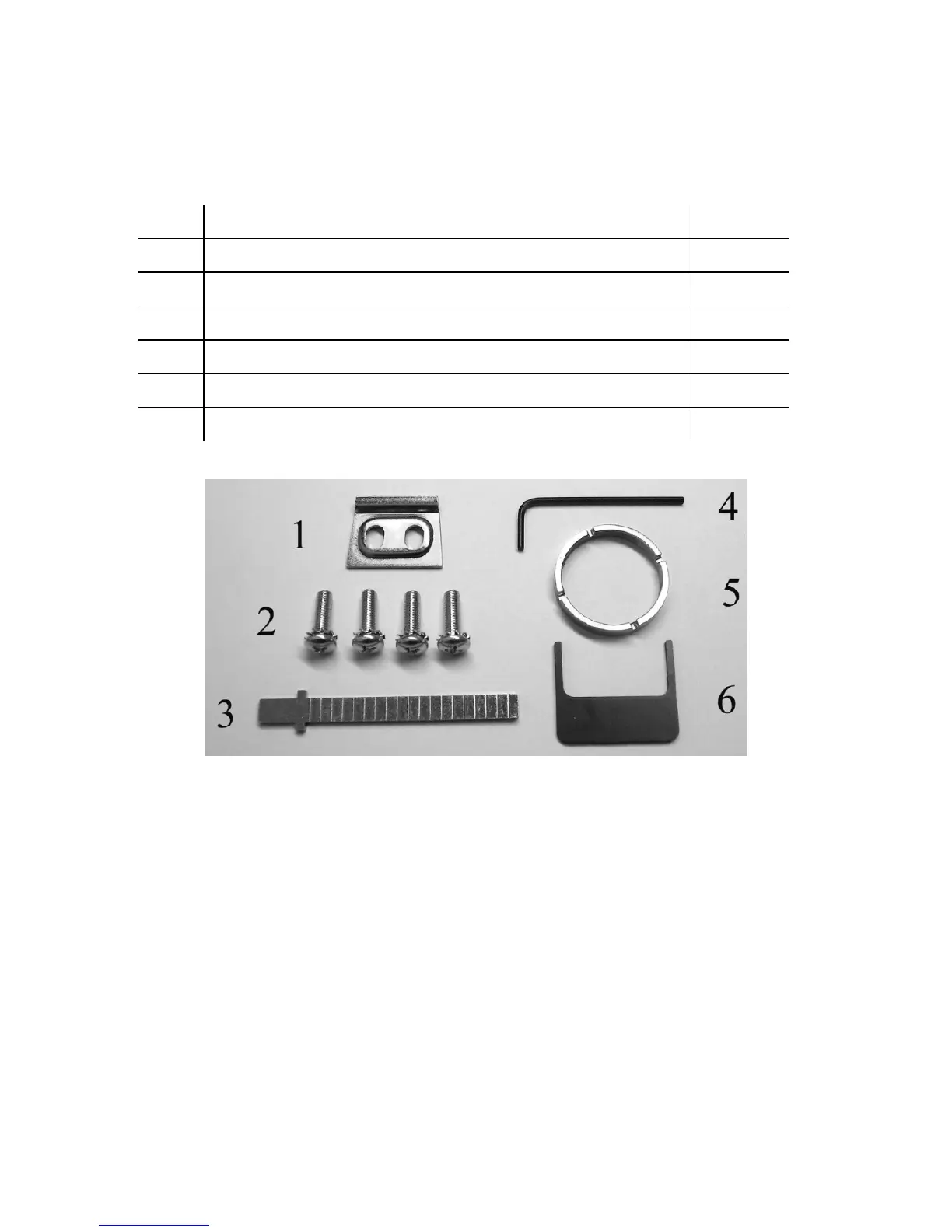

NOTE 1: Figure 1 illustrates the supplied parts.
NOTE 2: A cam plug is supplied for either the 3090-01 or 3090-02.
Item Description Quantity
1 Mounting Bracket (Part Number 22-9076) 1
2 #10-32 x 5/8” Phillips Pan Head Screws with lock washer 4
3 Spindle (Part Number 22-9154) 1
4 5/64” Allen Key 1
5 Cylinder Locking Ring (Part Number 24-0061) 1
6 Locking Ring Spanner Tool (Part Number 22-0594) 1
Figure 1
Preparing the Door
NOTE: Template 80-0180-396-01 is used for Yale, Corbin Russwin
and SARGENT exit devices (see Figure 2).
1. SELECT the stick-on template to match the application.
2. MARK the backset and horizontal centerlines.
3. APPLY clear template over the centerline marks (see Figure 2).
4. CENTER-PUNCH the four (4) referenced mounting holes, and
REMOVE template.
5. DRILL holes at center-punch locations using a 1/4” [6.35 mm] drill
bit.
6. INSTALL Rivnuts according to instructions supplied in Rivnut kit.
