33 80-0180-307, Rev A
8. REMOVE the Allen key.
9. TURN key into the neutral position and REMOVE key from the
cylinder.
10. ENTER a known user code to ensure the eForce 150 is functioning
correctly.
11. REFER to Troubleshooting section if eForce 150 does not function
properly.
Replacing the Mortise Cylinder
1. INSERT key into the cylinder and TURN key 180 degrees clockwise
to release blocking plate.
CAUTION
Once loose, the battery cover is free to slide down and can fall. Be
careful to support the battery cover with free hand.
2. INSERT the included 5/64” Allen key (included) and LOOSEN the
screw to allow removal of the battery cover (see Figure 27).

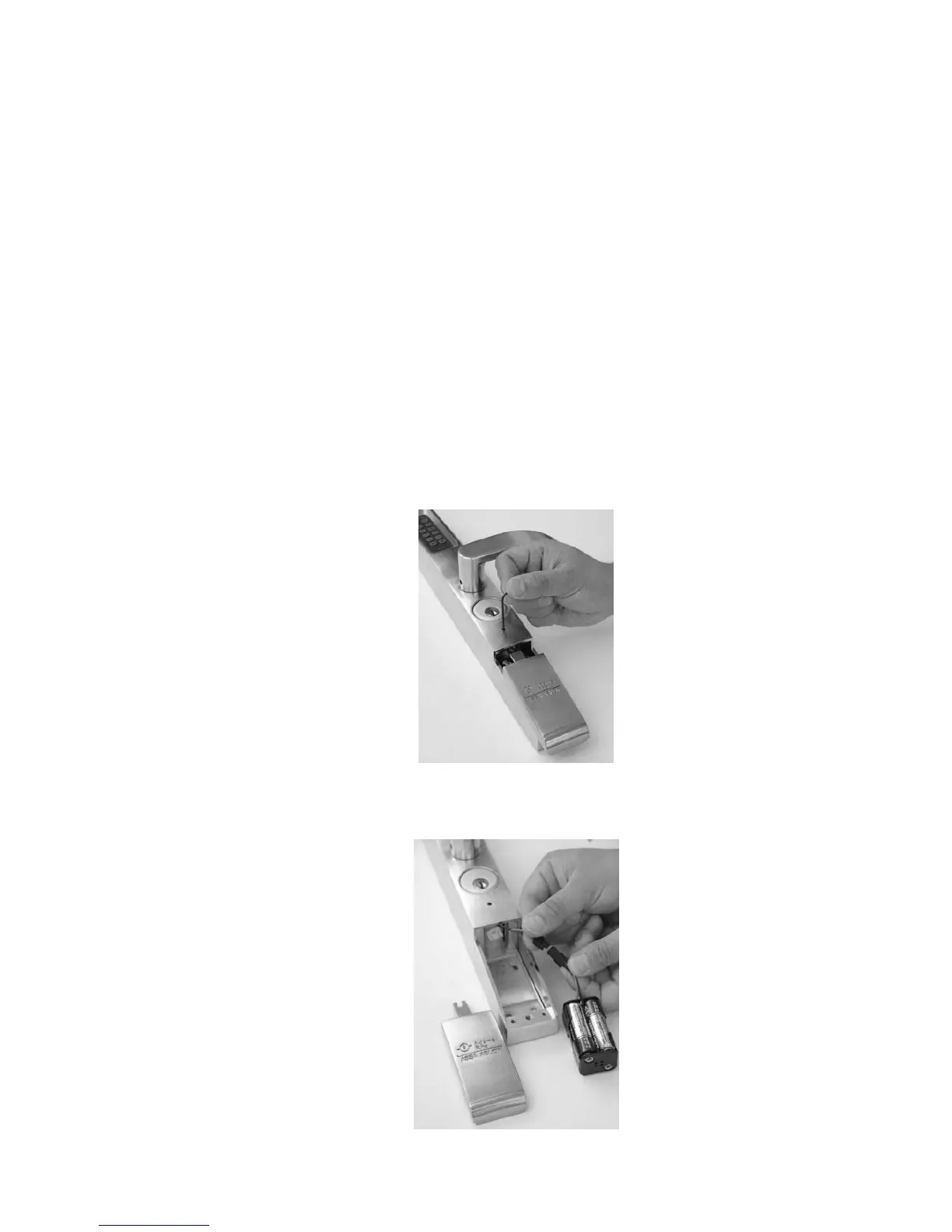

Figure 27
3. REMOVE the battery cover, DISCONNECT the battery holder (see
Figure 28), and SET both aside.
Figure 28
