4. REMOVE the two (2) #10-32 x 5/8 screws from the inside bottom of
trim (see Figure 29).

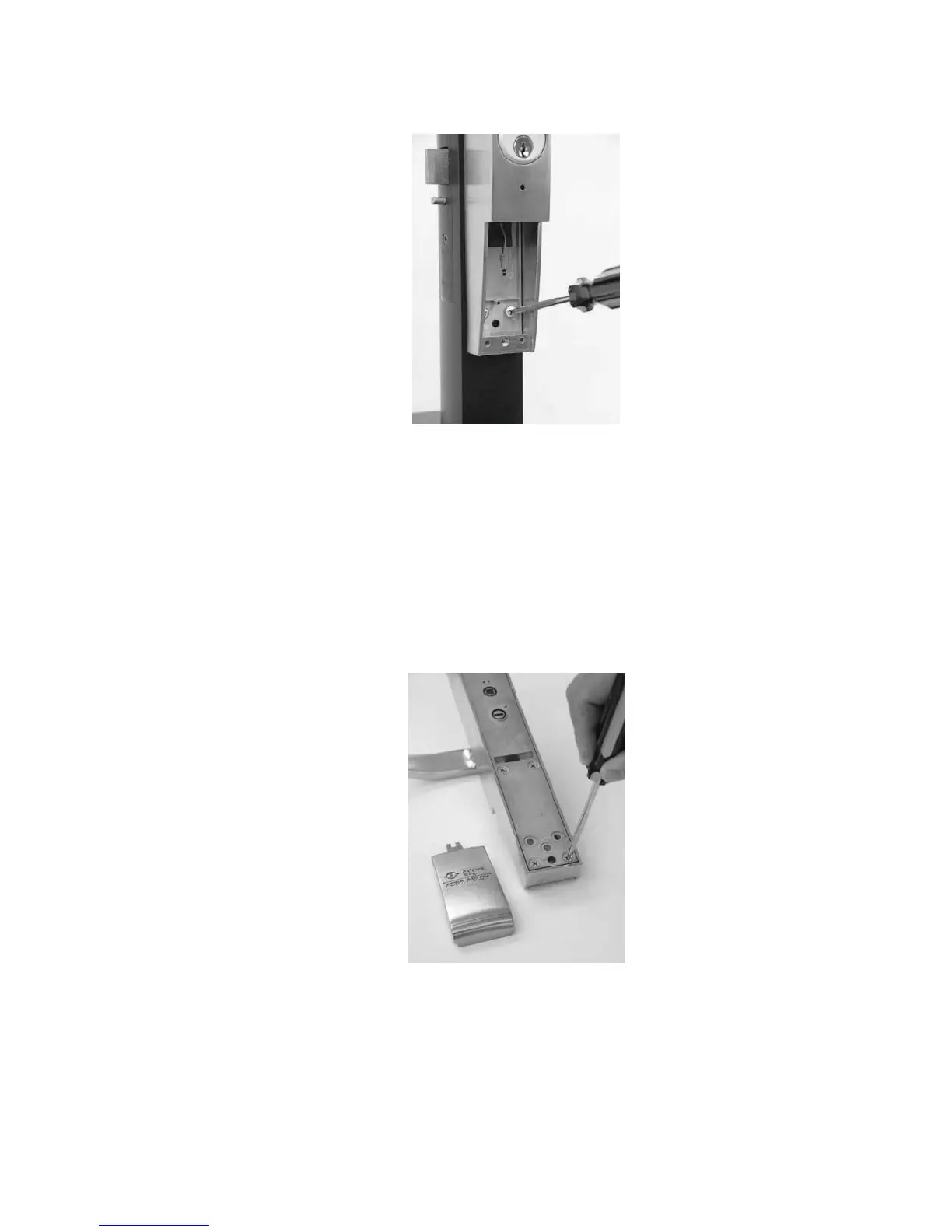

Figure 29
5. LIFT eForce 150 off mounting bracket, being careful not to lose
spindle located in the spindle output on the back of the unit.
CAUTION
There are wires attached to the housing and back plate. Be careful
not to damage wiring.
6. Using a Phillips head screwdriver, REMOVE the eight (8) #10-32 x
5/8 screws on the back of the eForce 150 and gently LIFT the back
plate off the housing (see Figure 30).
Figure 30
